Product Description

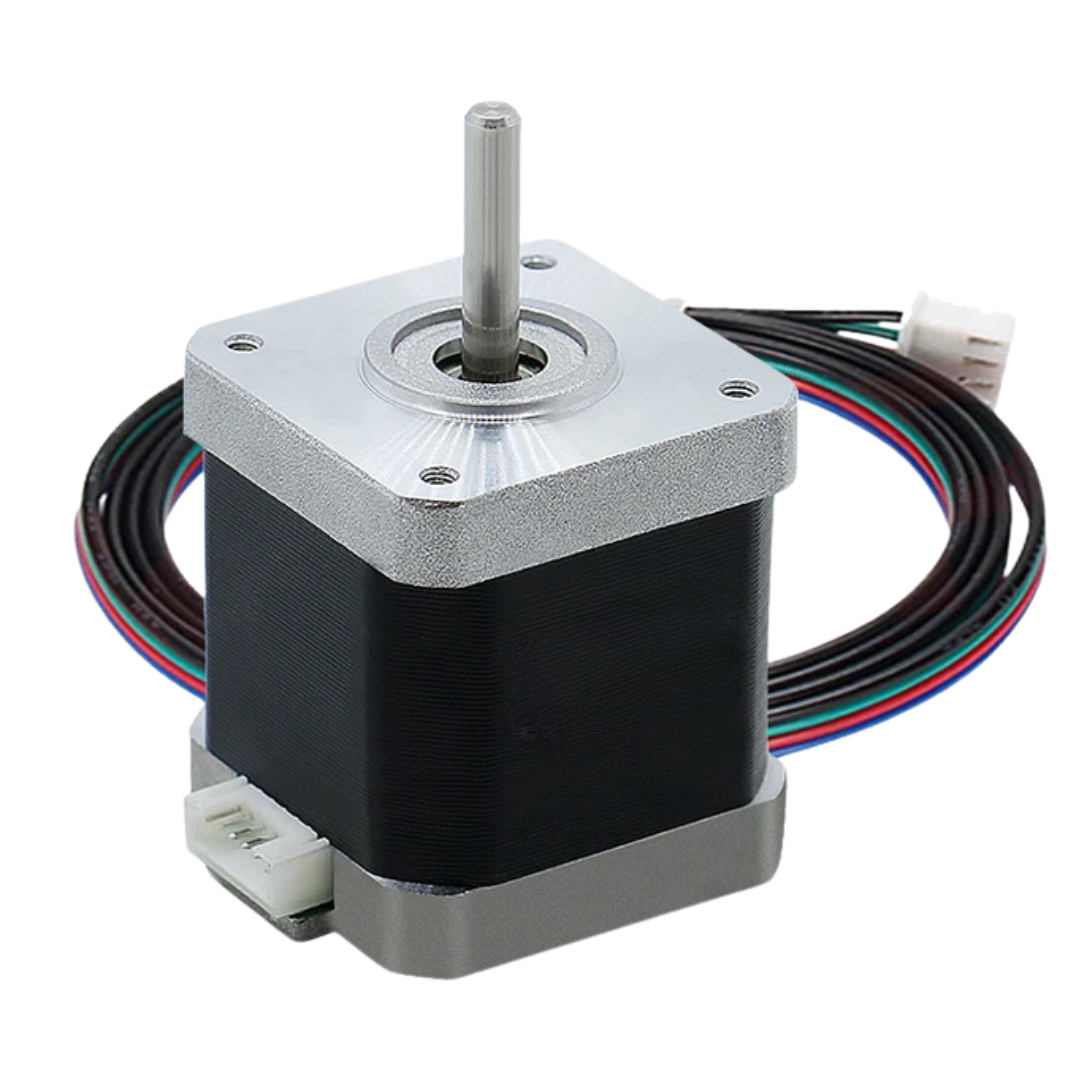

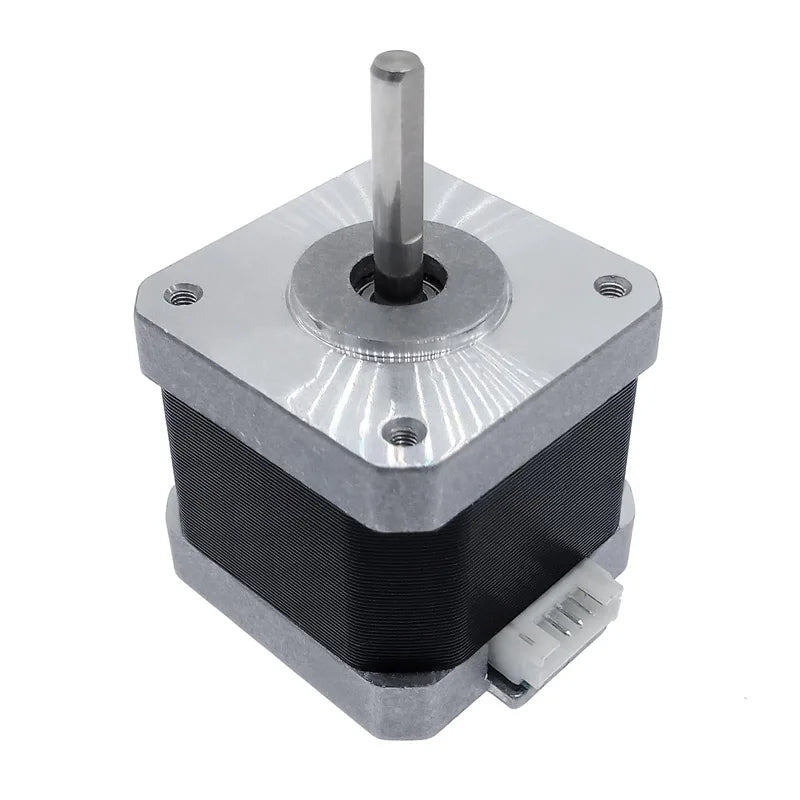

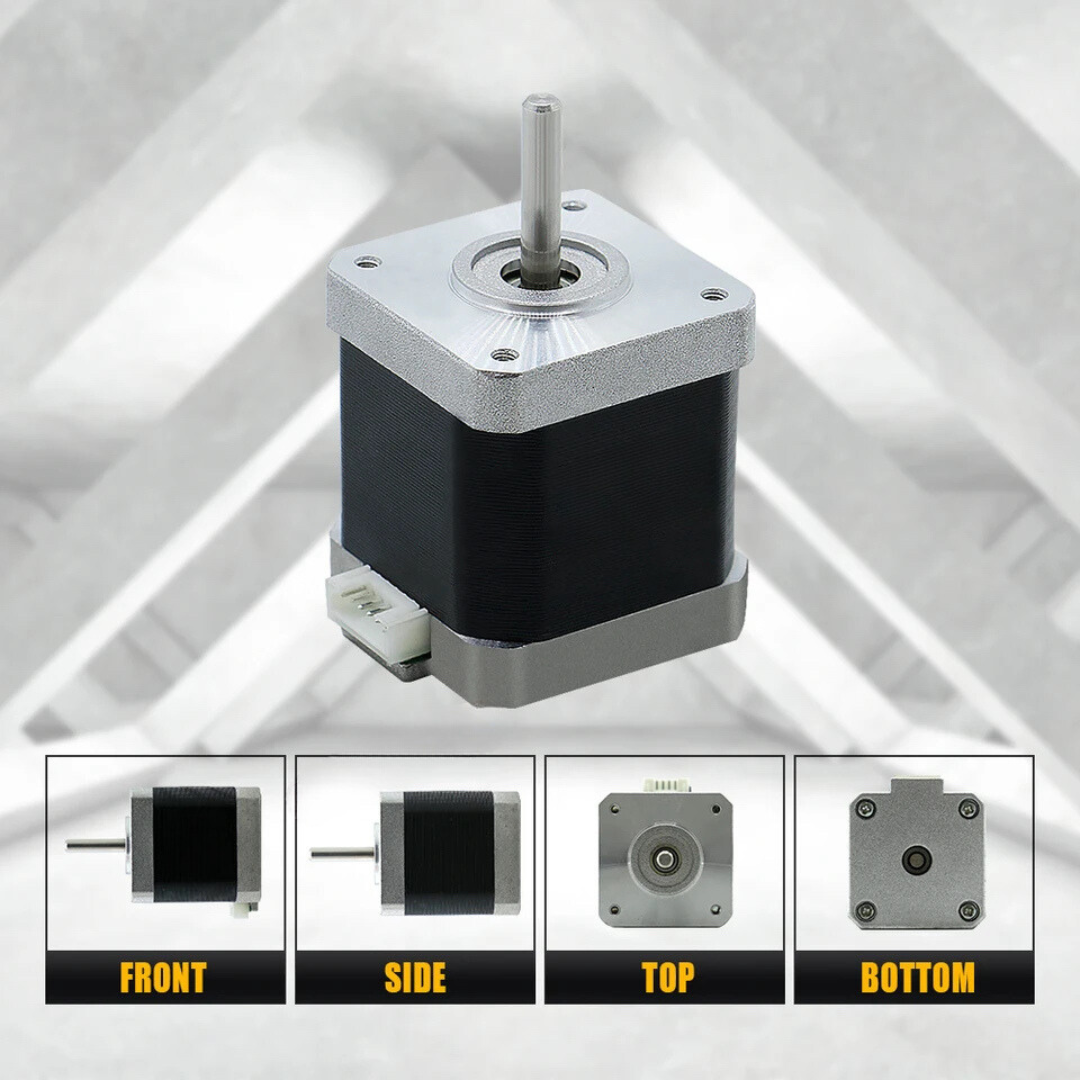

NEMA 17 Hybrid Stepper Motor, 5 kg·cm, 1.8°, 40 mm
This NEMA 17 hybrid stepper motor is designed for precision motion-control applications. It has a 1.8° step angle, a listed holding torque of 5 kg·cm, and a compact 42 × 40 mm body.
Key features
- Hybrid NEMA 17 stepper motor
- Listed holding torque: 5 kg·cm
- 1.8° step angle
- 1.7A listed current draw
- 42 × 40 mm body size
- Detachable 1 metre cable
- Suitable for CNC machines, 3D printers, robotics and automated motion-control systems
Product specifications
| Product type | Hybrid stepper motor |
| Frame | NEMA 17 |
| Holding torque | 5 kg·cm |
| Step angle | 1.8° |
| Current draw | 1.7A |
| Body size | 42 × 40 mm |
| Cable | Detachable, 1 metre |
| SKU | 17405 |
| Colour | Grey and black |
Shipping & returns
Shipping charges, delivery timelines, and return or replacement eligibility are shown according to the store policy and checkout details.
Bulk Pricing (Excluding GST)
| Quantity | Discount | Unit Price (Excl. GST) |
|---|---|---|
| 10 nos | 5% | ₹ 603.01 |
| 20 nos | 7% | ₹ 590.31 |
| 50 nos | 10% | ₹ 571.27 |
| 100 nos | 12% | ₹ 558.58 |
| 250 nos | 15% | ₹ 539.53 |
| 500 nos | 18% | ₹ 520.49 |
| 1000 nos & more | 20% | ₹ 507.8 |
