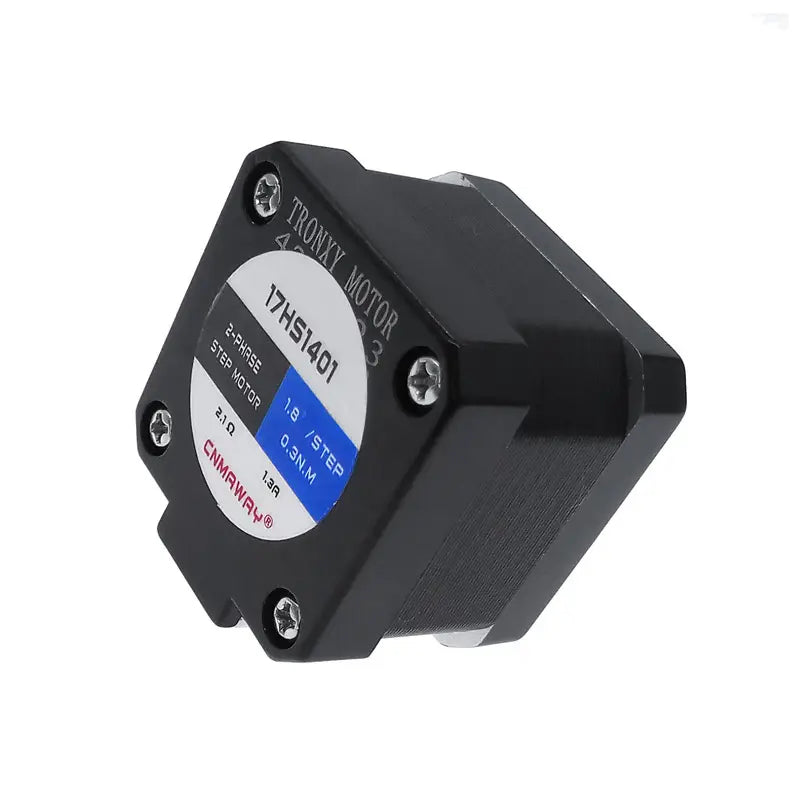

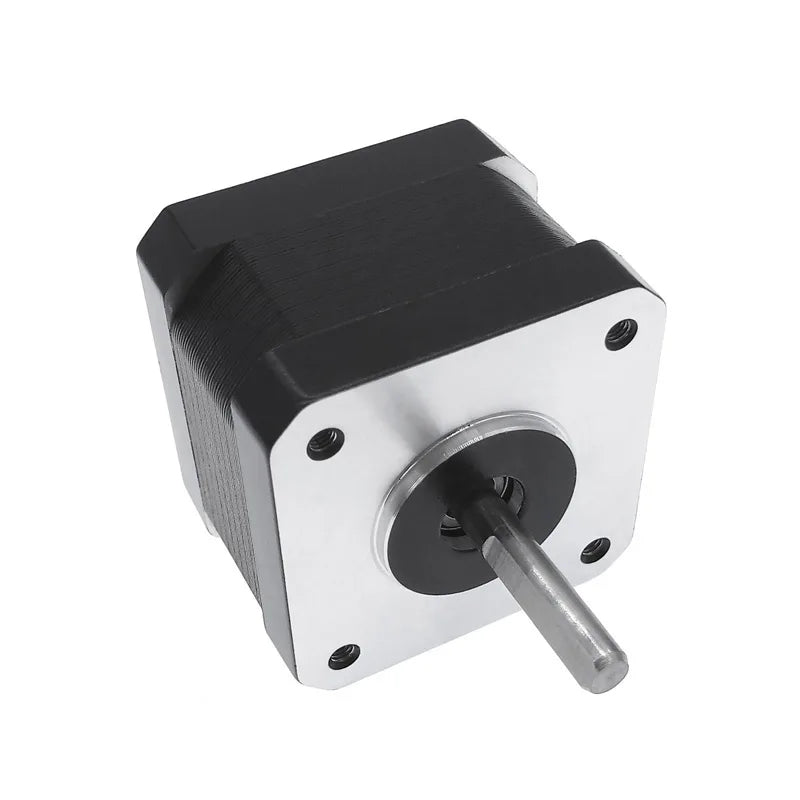

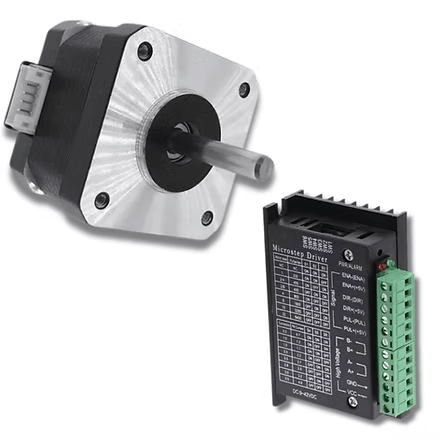

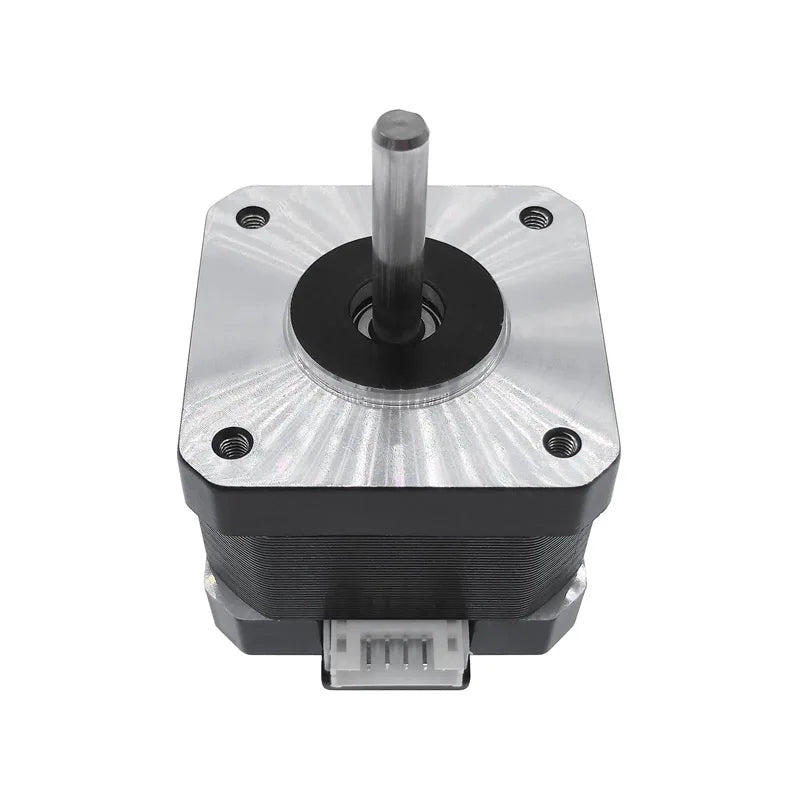

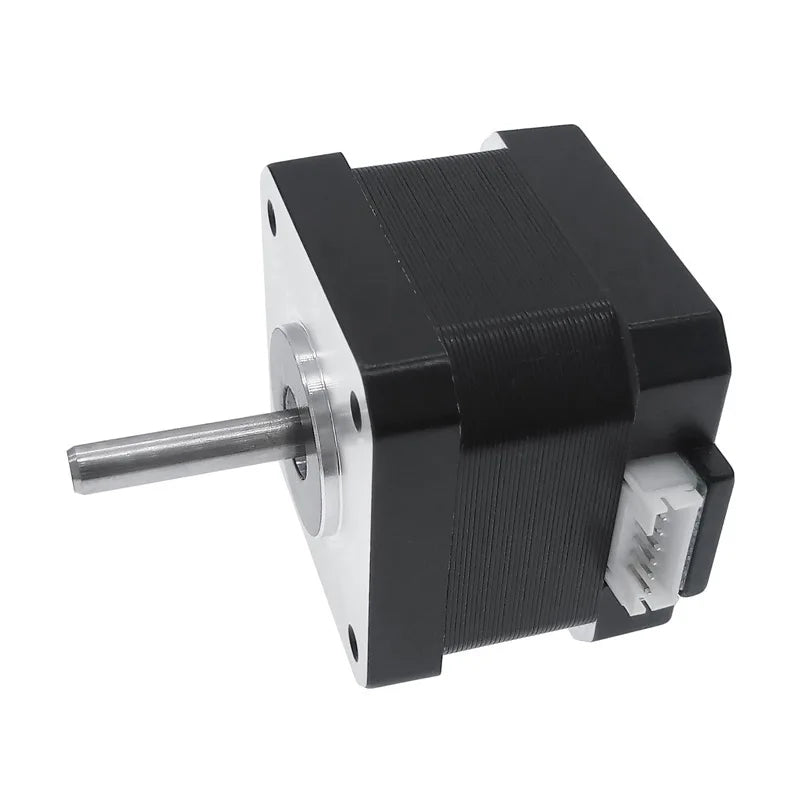

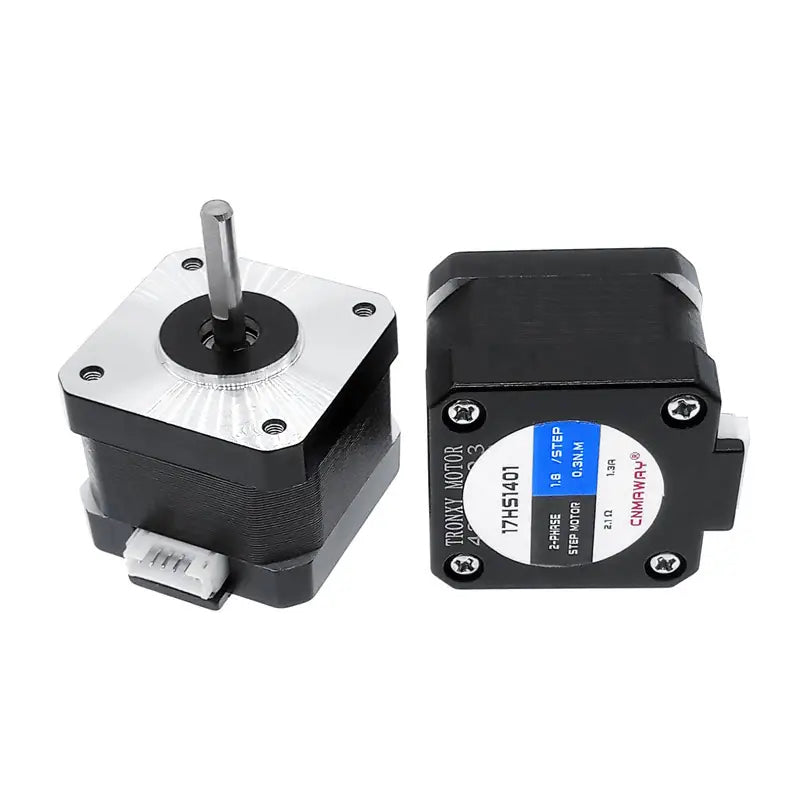

Nema 17 34mm Hybrid Stepper Motor 1.8 degree DetAChable Cable with TB6600

• Unleash Controlled Movement with this High-Performance Stepper Motor

  This premium Nema 17 stepper motor offers a compelling combination of compact size, exceptional torque (4.2kg.cm / 60.7oz.in), and precise 1.8-degree steps. Its 34mm diameter makes it ideal for space-constrained applications, while its robust design delivers the power to handle demanding jobs.

• Effortless Installation and Maintenance

  A user-friendly feature of this motor is its detachable cable (700mm length). This allows for easier setup in tight spaces and facilitates convenient maintenance if needed.

• Safety and Quality Guaranteed

  This stepper motor boasts CE and RoHS certifications, ensuring it adheres to strict European safety and environmental standards.

• Extensive Application Range

  This versatile motor finds its place in a wide range of industries requiring precise motion control, including:

• 3D printers
• Engraving machines
• Printers
• Medical equipment
• Embroidery machines
• Stage lighting
• Textile automation equipment
• Printing and packaging machinery
• Monitor equipment
• Textile machinery
• And many more!

Technical Specifications:

• Motor Type: Bipolar Stepper (CE & RoHS Approved)
• Step Angle: 1.8°
• Current per Phase: 1.8A
• Phase Resistance: 1.65 ohms
• Inductance per Phase: 4.1mH ± 20%
• Holding Torque: 4400g.cm / 43.12N.cm / 60.7oz.in
• Detent Torque: 220g.cm / 2.16N.cm / 3.0oz.in
• Rotor Inertia: 68g.cm²

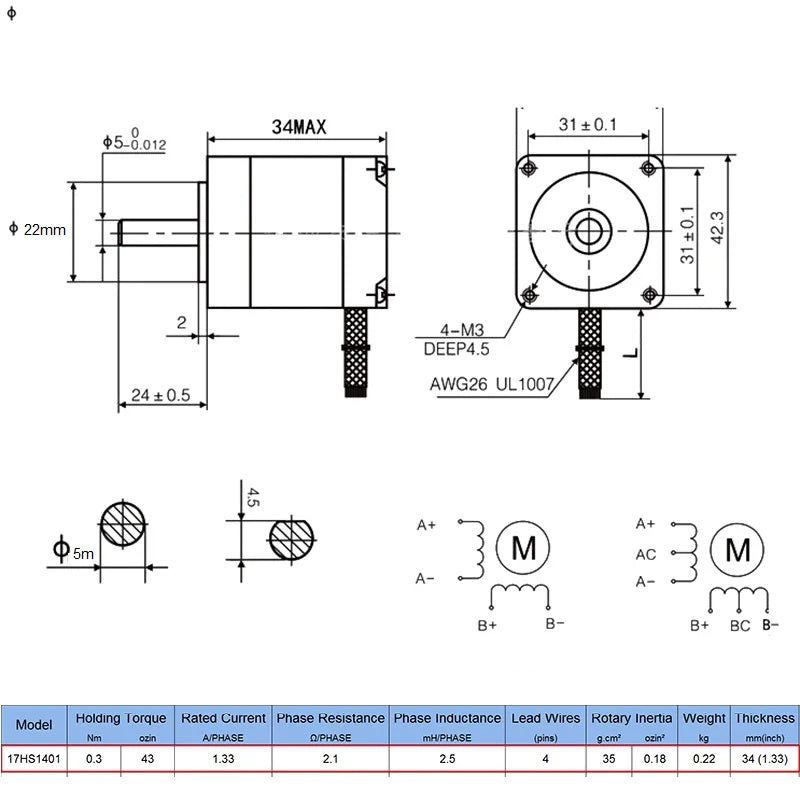

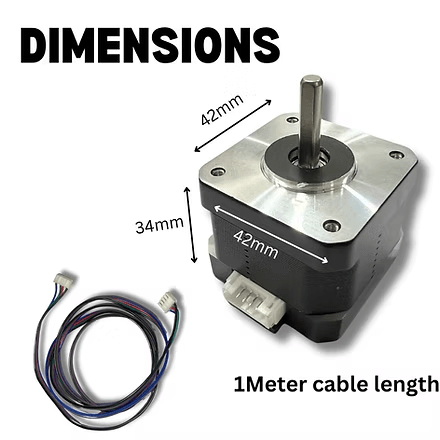

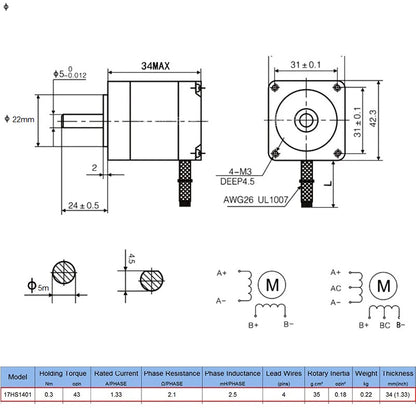

• Physical Specifications:
  • Frame Size: 42mm x 42mm (1.7in x 1.7in)
  • Motor Length: 34mm (1.9in)
  • Shaft Diameter: 5mm
  • Front Shaft Length: 22mm
  • Number of Leads: 4
  • Cable Length: 700mm (27.5in)

• Elevate your project's precision and efficiency with this feature-packed Nema 17 hybrid stepper motor!
