Product Description
-
Unleash Controlled Movement with this High-Performance Stepper Motor
This premium Nema 17 stepper motor offers a compelling combination of compact size, exceptional torque (4.2kg.cm / 60.7oz.in), and precise 1.8-degree steps. Its 34mm diameter makes it ideal for space-constrained applications, while its robust design delivers the power to handle demanding jobs.
-
Effortless Installation and Maintenance
A user-friendly feature of this motor is its detachable cable (700mm length). This allows for easier setup in tight spaces and facilitates convenient maintenance if needed.
-
Safety and Quality Guaranteed
This stepper motor boasts CE and RoHS certifications, ensuring it adheres to strict European safety and environmental standards.
-
Extensive Application Range
This versatile motor finds its place in a wide range of industries requiring precise motion control, including:
- 3D printers
- Engraving machines
- Printers
- Medical equipment
- Embroidery machines
- Stage lighting
- Textile automation equipment
- Printing and packaging machinery
- Monitor equipment
- Textile machinery
- And many more!
Technical Specifications:
- Motor Type: Bipolar Stepper (CE & RoHS Approved)
- Step Angle: 1.8°
- Current per Phase: 1.8A
- Phase Resistance: 1.65 ohms
- Inductance per Phase: 4.1mH ± 20%
- Holding Torque: 4400g.cm / 43.12N.cm / 60.7oz.in
- Detent Torque: 220g.cm / 2.16N.cm / 3.0oz.in
- Rotor Inertia: 68g.cm²
-

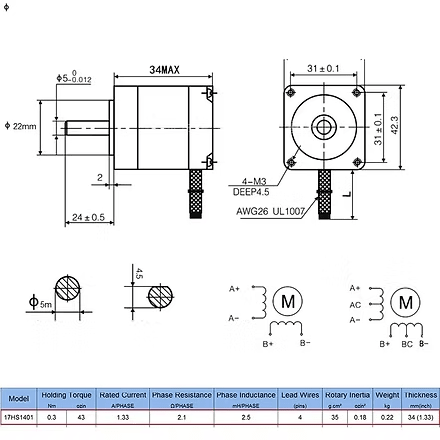

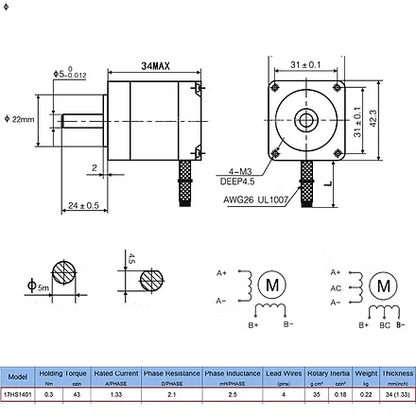

Physical Specifications:

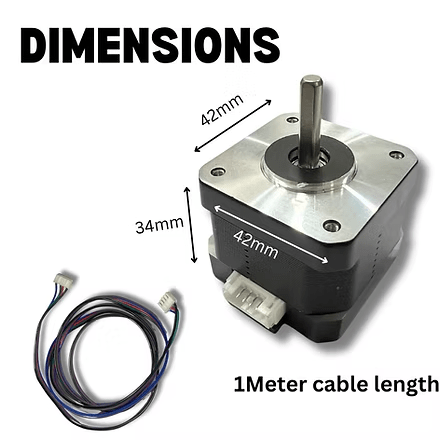

- Frame Size: 42mm x 42mm (1.7in x 1.7in)
- Motor Length: 34mm
- Shaft Diameter: 5mm
- Front Shaft Length: 22mm
- Number of Leads: 4
- Cable Length: 700mm (27.5in)
-
Elevate your project's precision and efficiency with this feature-packed Nema 17 hybrid stepper motor!
Product Specifications
| Mounting size | 22mm |
| Colour | Black; Gray |
| Power source | HYBRID |
