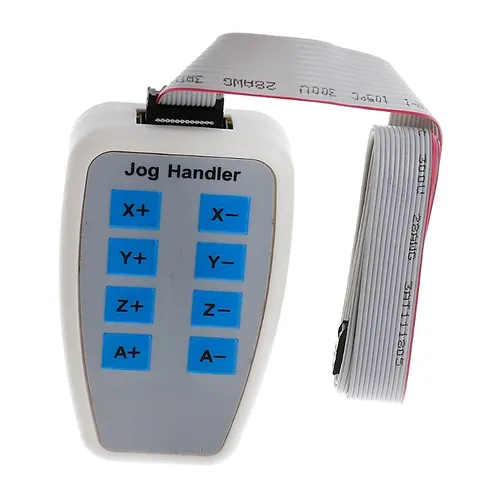

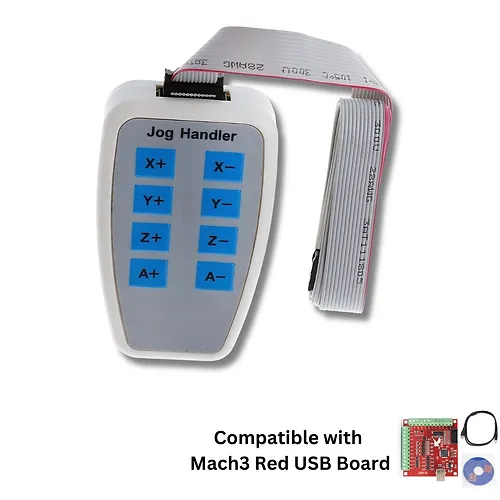

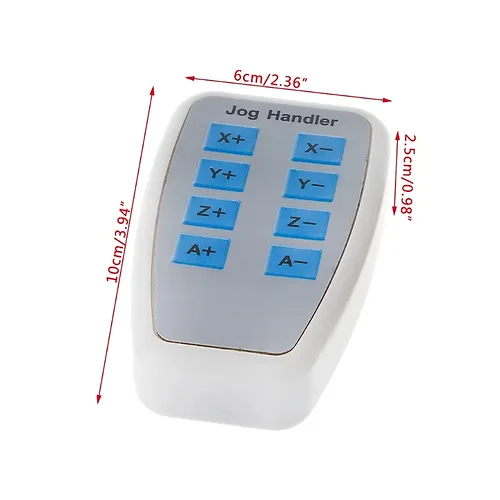

Mach3 Jog Handler

The Mach 3 Jog Handler is a device that connects your computer to your CNC machine (Computer Numerical Control) and allows you to control it using Mach 3 software. It acts as a bridge between your PC and the motors that drive your CNC machine.

Here are some key features of the Mach 3 Jog Handler:

• Multi-axis control: Supports up to 4 axes (typically X, Y, Z, and A), allowing you to control various aspects of your CNC machine's movement.
• Stepper/Servo motor compatibility: Works with both stepper motors and servo motors, which are the driving force behind your CNC machine's movements.
• High-speed control: Delivers a maximum step pulse frequency of 100KHz, ensuring smooth and precise control of your machine.
• Input/Output capabilities: Provides various input ports for connecting emergency stop buttons, limit switches, and electronic handwheels for manual control.
• Spindle speed control: Includes a 0-10V output port that can be used by Mach 3 software to regulate the speed of your spindle motor (the motor that rotates the cutting tool).
• USB connectivity: Connects to your computer using a USB interface, enabling easy integration with modern PCs and tablets.

Overall, the Mach 3 Jog Handler is a versatile tool for anyone who wants to control their CNC machine using Mach 3 software. It provides precise control, multiple axis support, and various connectivity options, making it a valuable addition to your CNC workflow.

Please note: The Mach 3 Jog Handler typically requires an external 24V DC power supply to function correctly.
