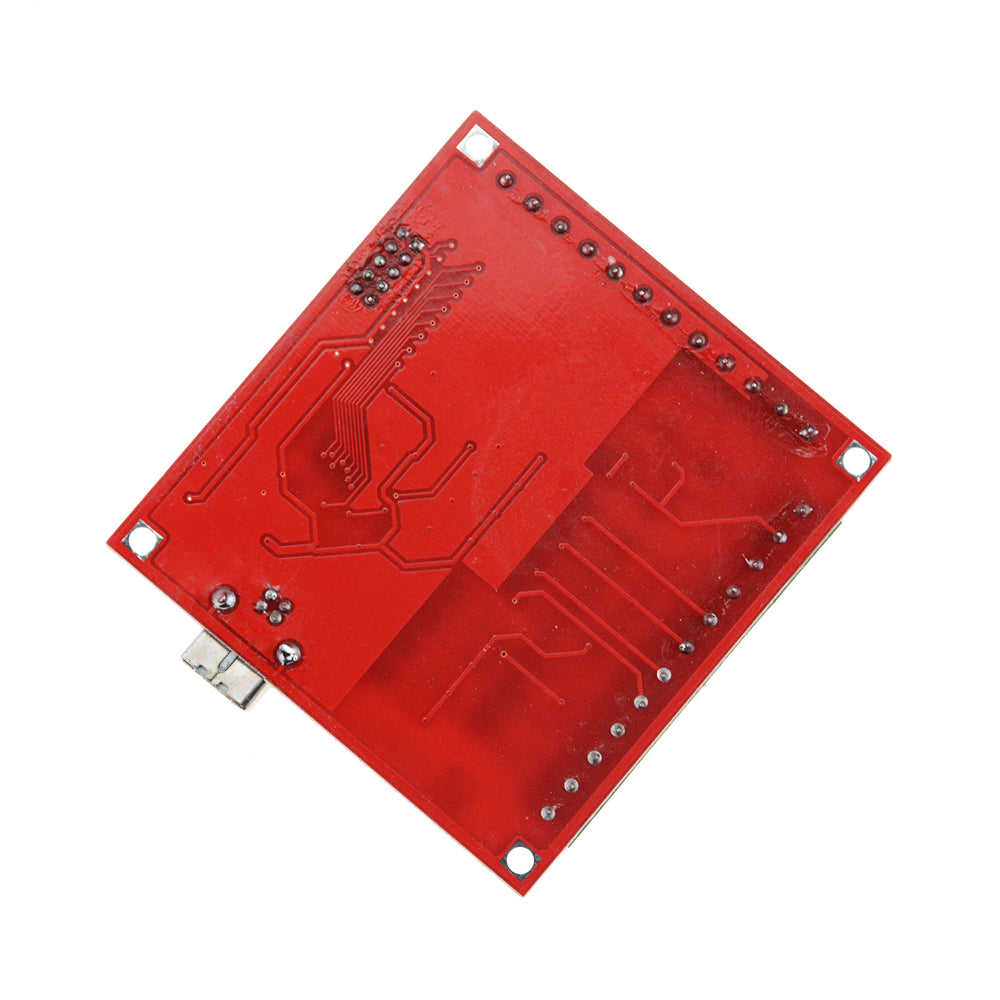

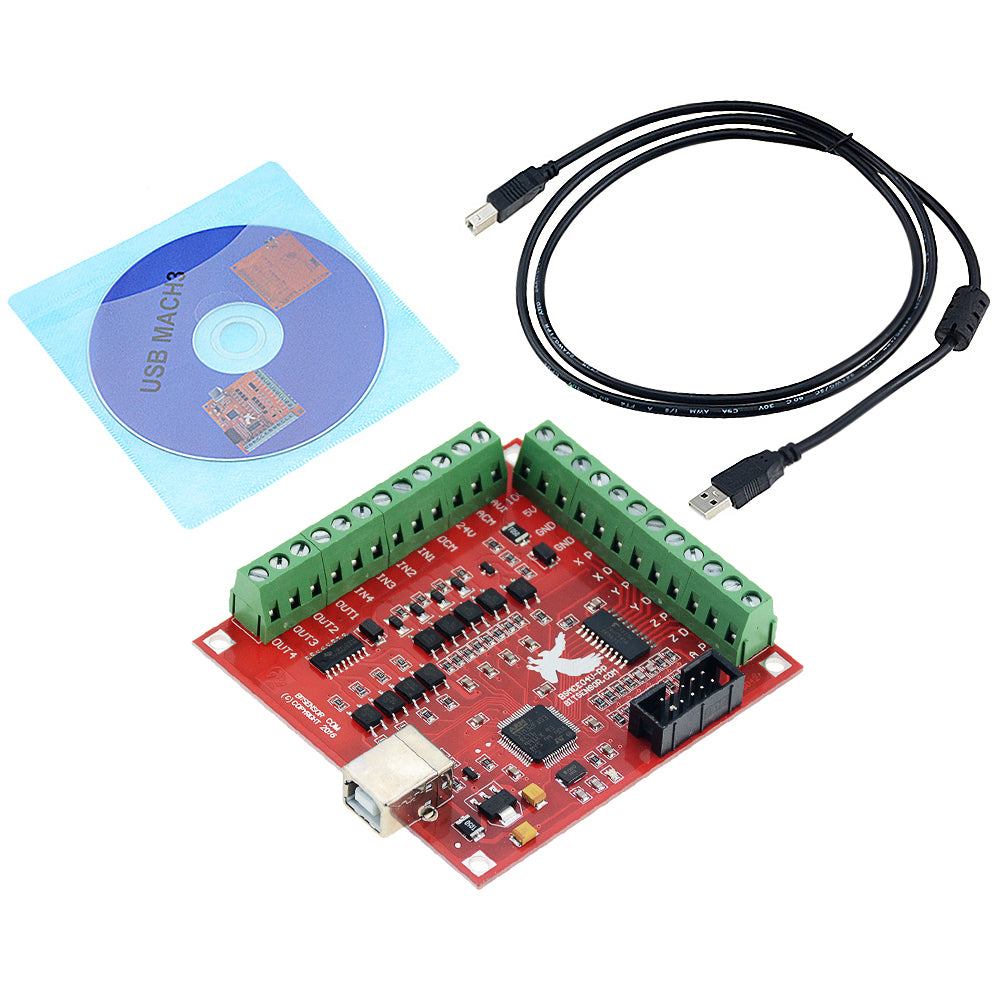

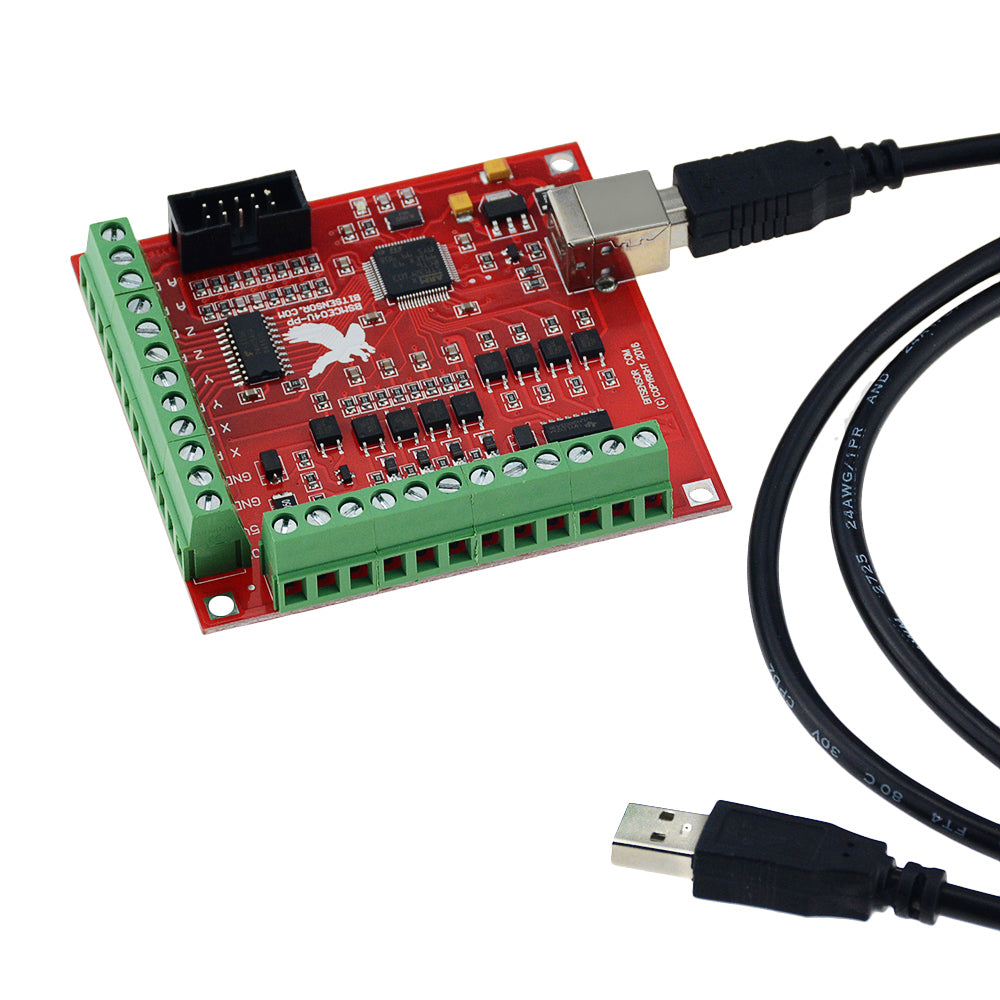

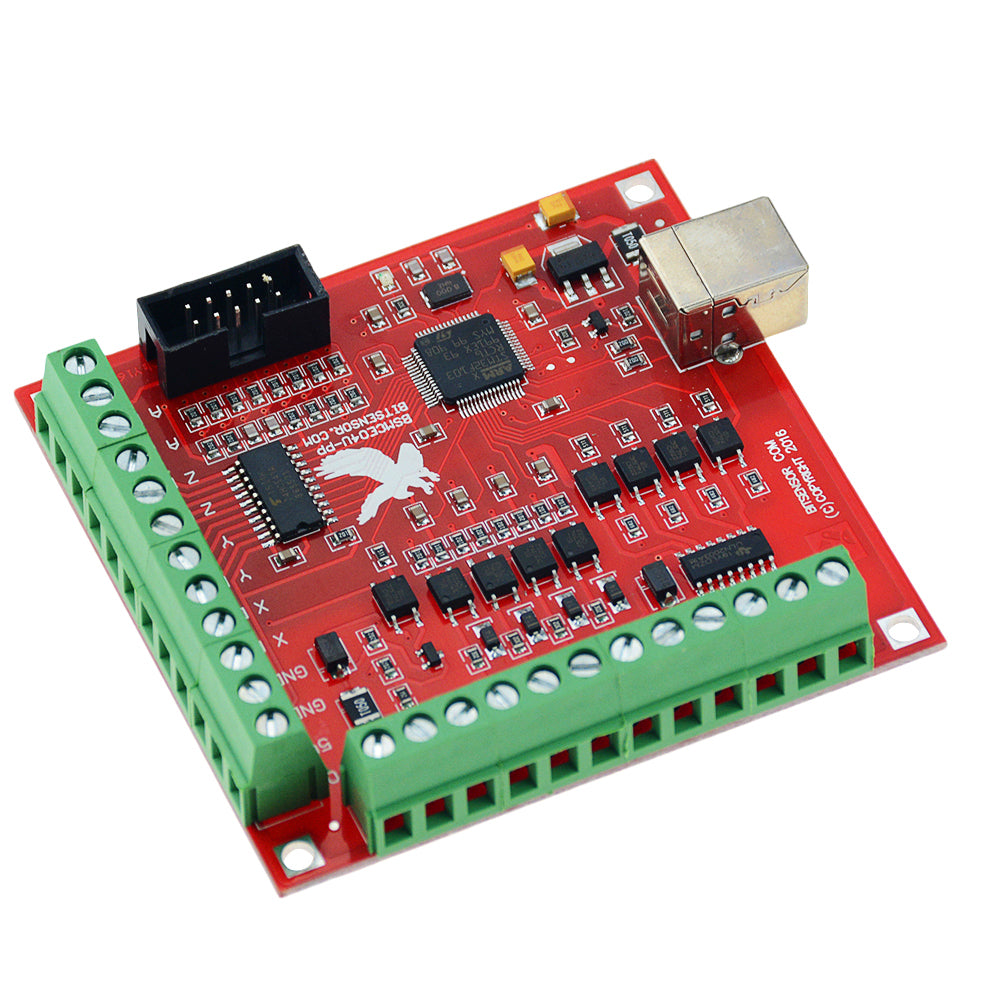

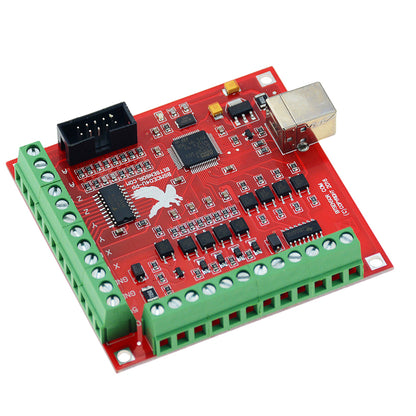

MACH3 100Khz 4 axis interface driver motion controller driver board

Features:

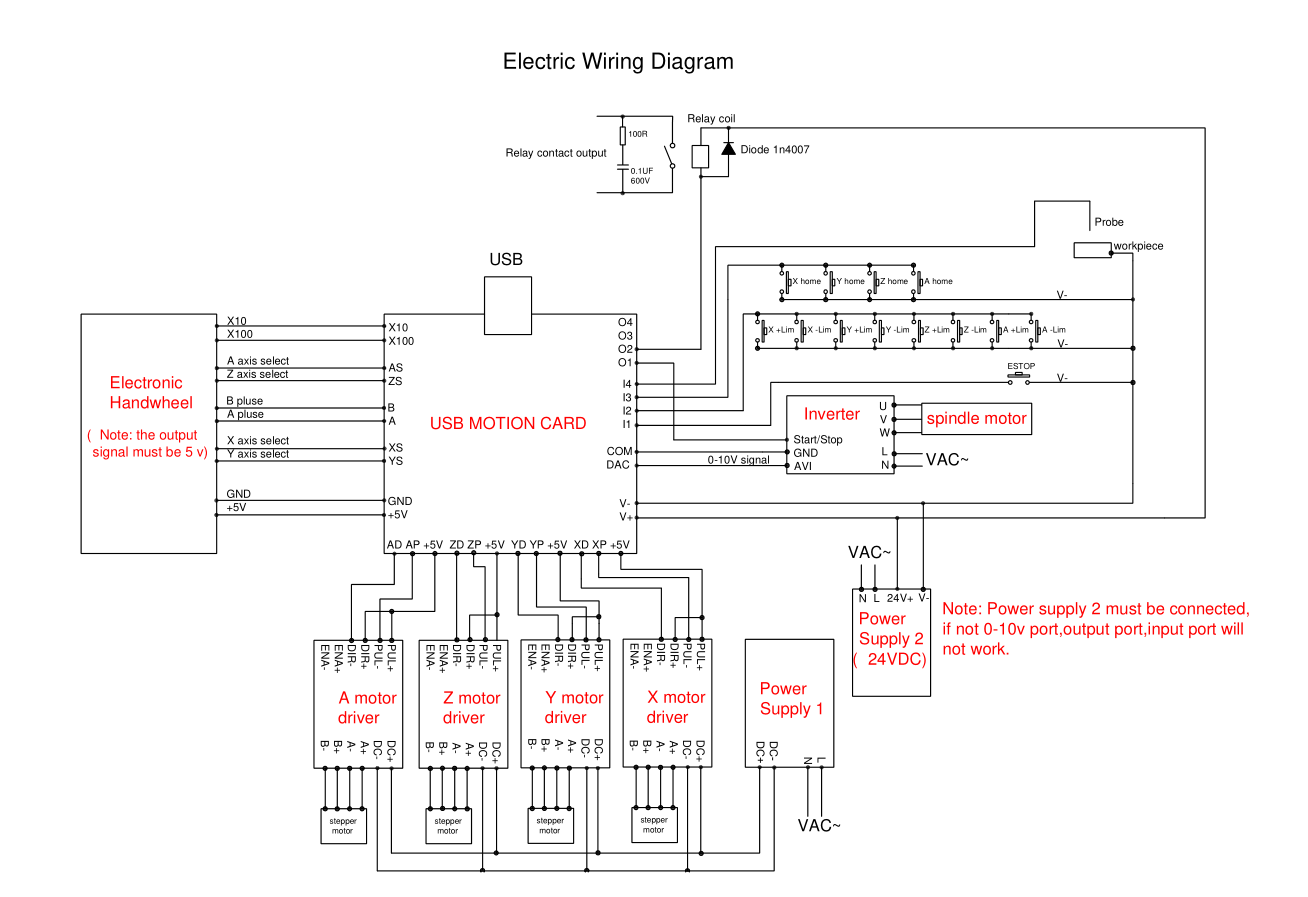

1. Support four-shaft linkage, can connect four stepper motor drive or servo drive

2. The maximum stepping pulse frequency is 100KHz, suitable for servo or stepper motor

3. Support automatic detection tools

4. Support emergency input

5. Support for connecting electronic handwheels

6. An external 24V DC power supply is required to isolate the USB and external port to make the system more stable.

7. With 0-10V output port, you can use mach3 software to control the spindle motor speeds.

8. Universal input, can be connected to limit switch, estop switch, probe switch, 0 return, etc.

9. 4 universal isolation relay drive output interface, can drive 4 relays to control spindle start, forward and reverse, pump and other devices

10. With sate indicator, the state of the connection on the indicator board

11.Support automatic probe tool.

12.Maximum step-pulse frequency is 100KHz, which is suitable for the servo or stepping motor.

13.Support for limit switch.

14.Support for connecting electronic hand wheel.

15.Support for 4-axis linkage, you can connect four stepper motor drives or servo drives.

16.Warranty not applicable for this product
