Product Description
This information applies to all variants.

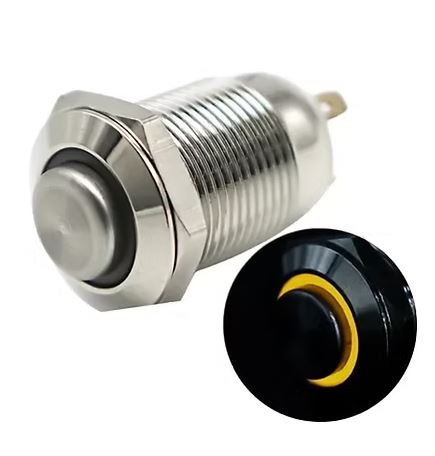

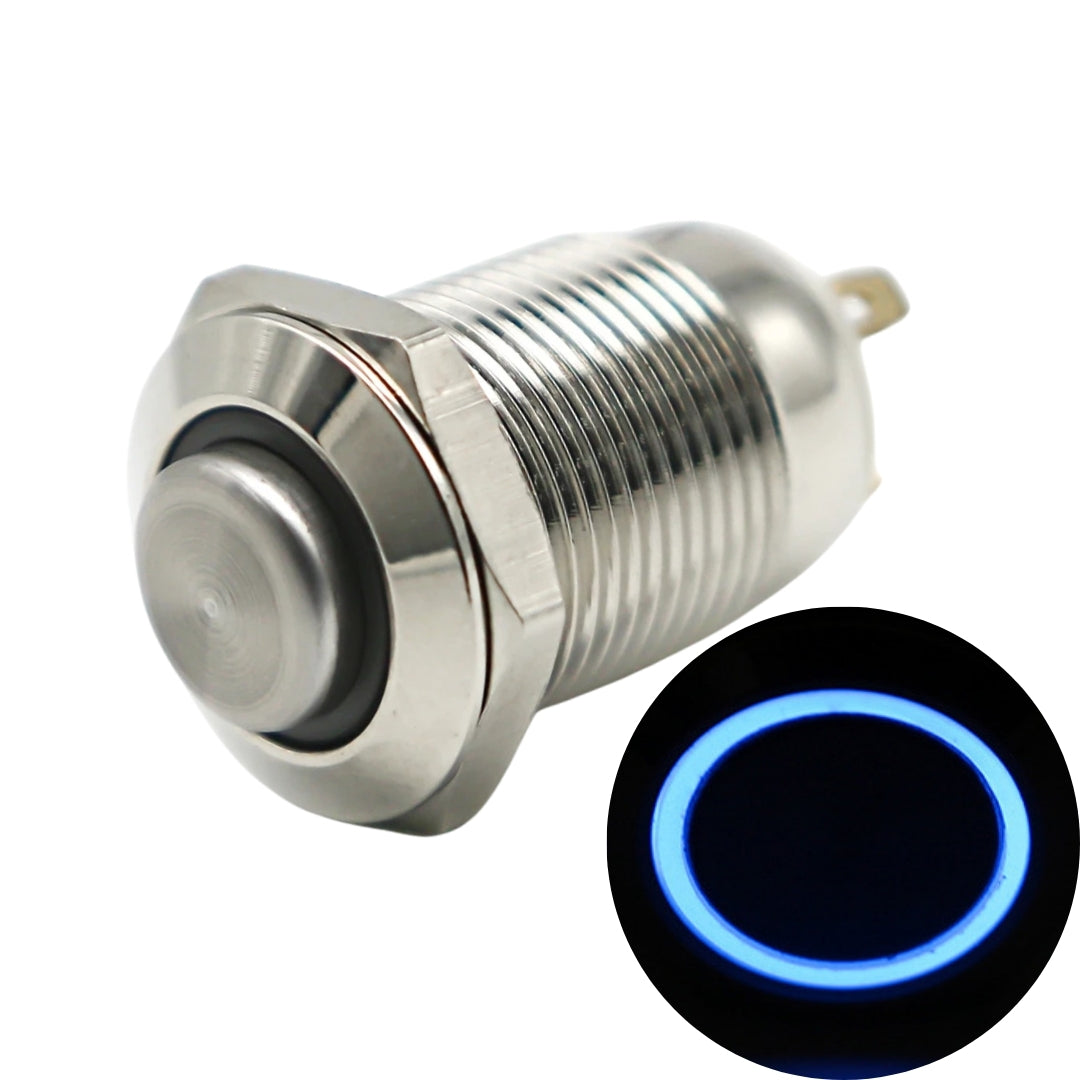

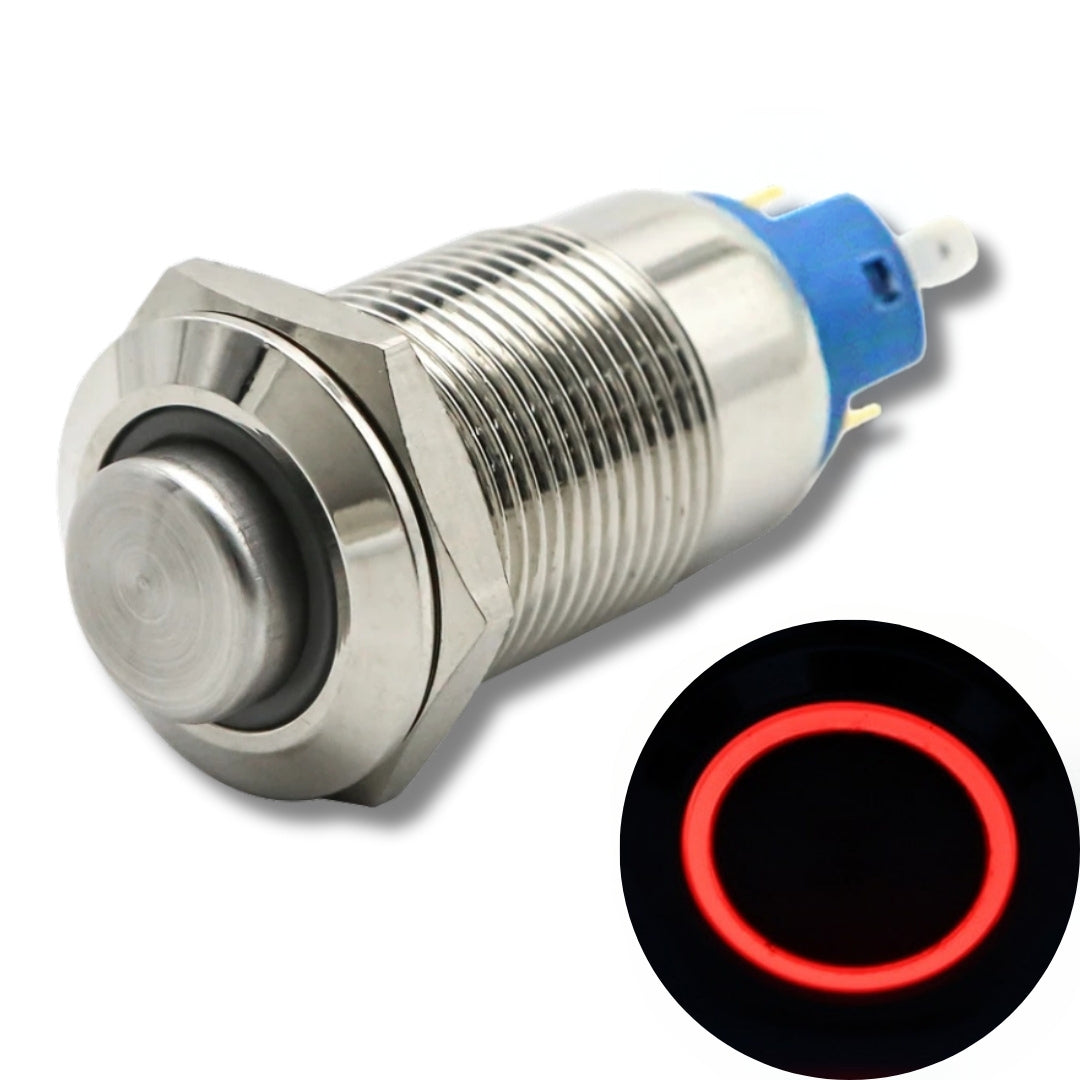

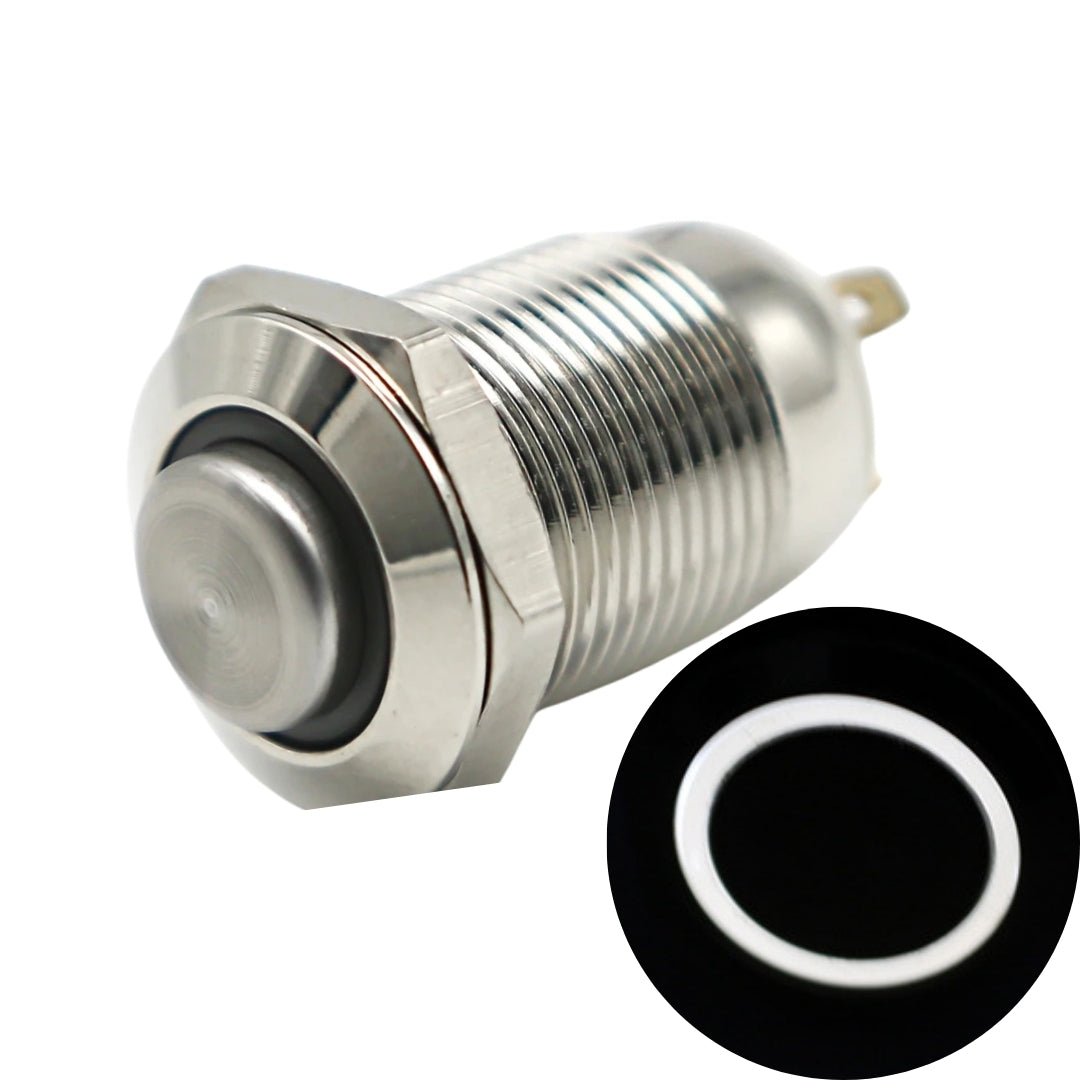

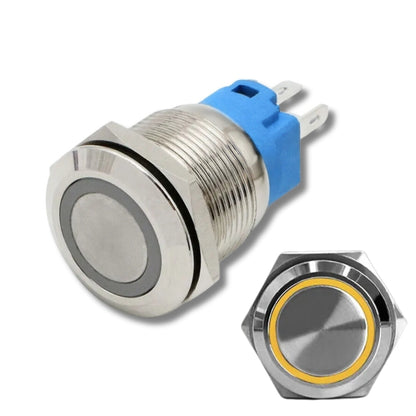

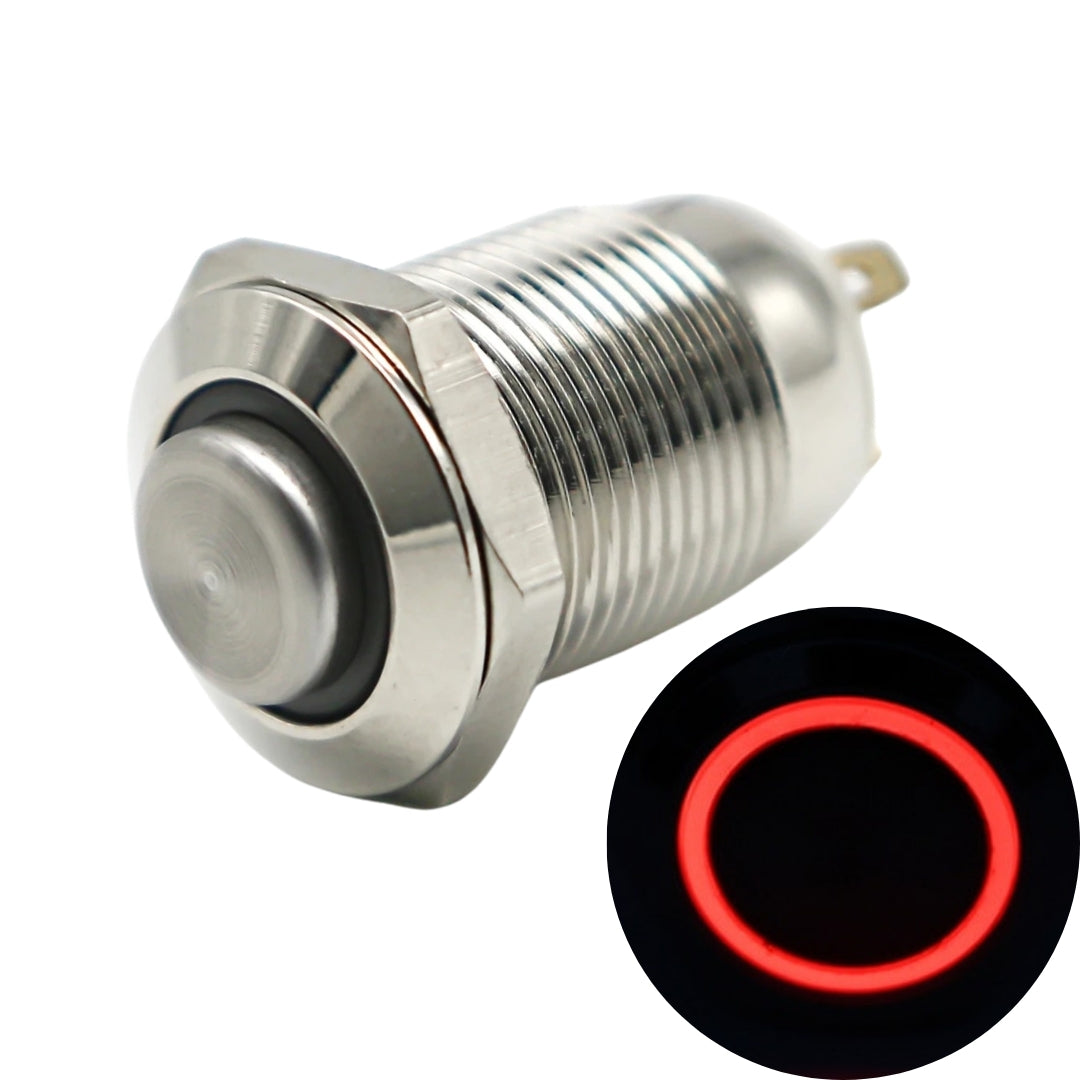

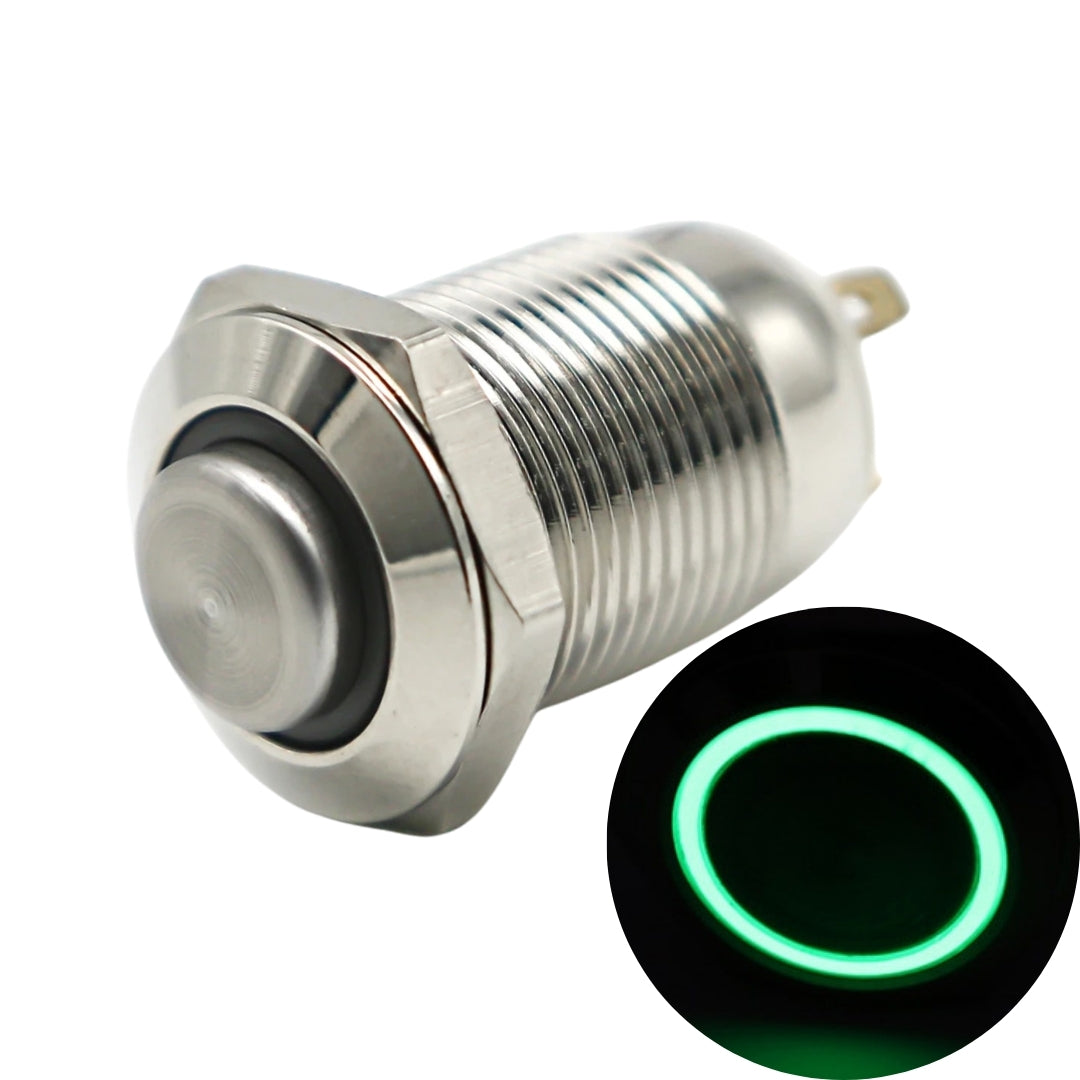

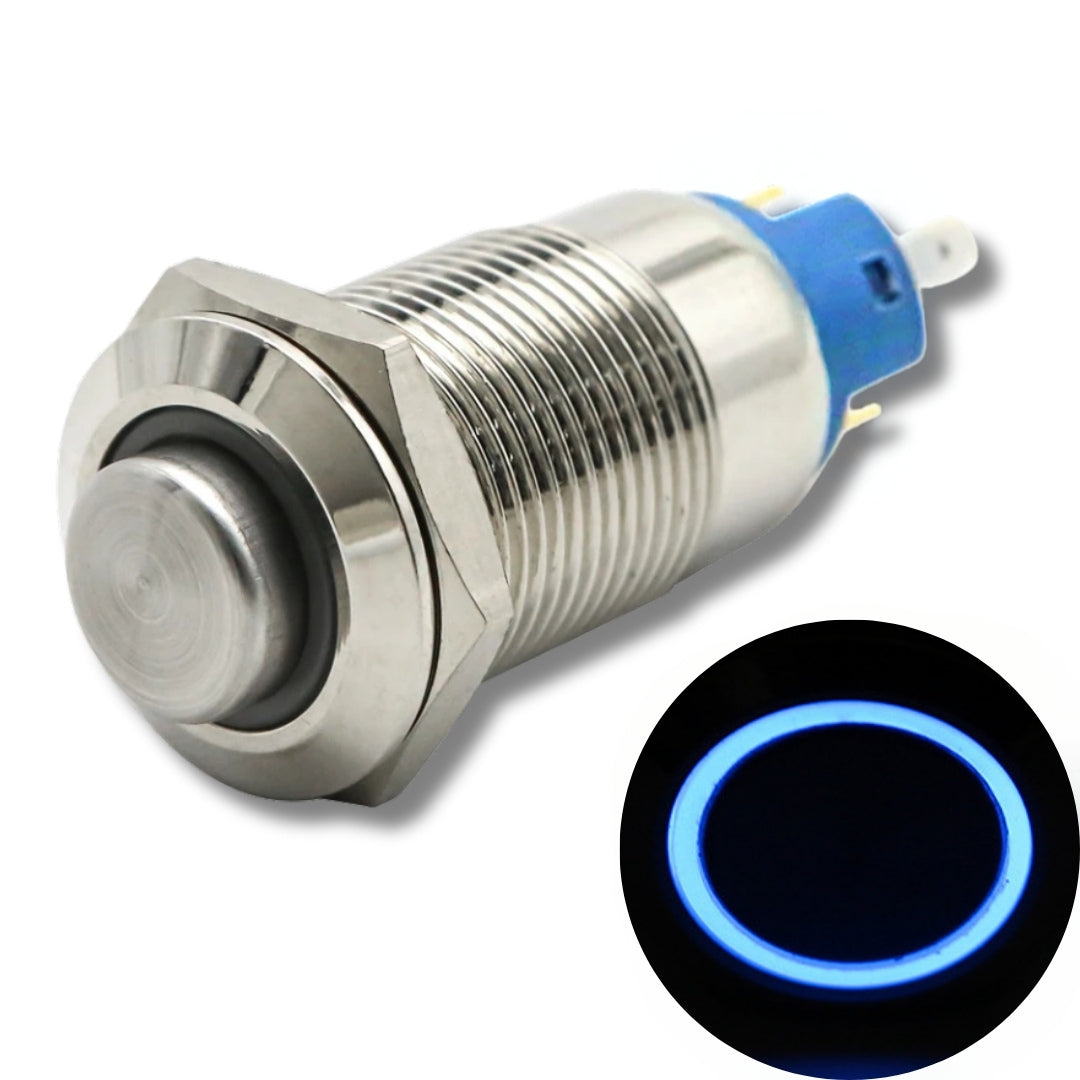

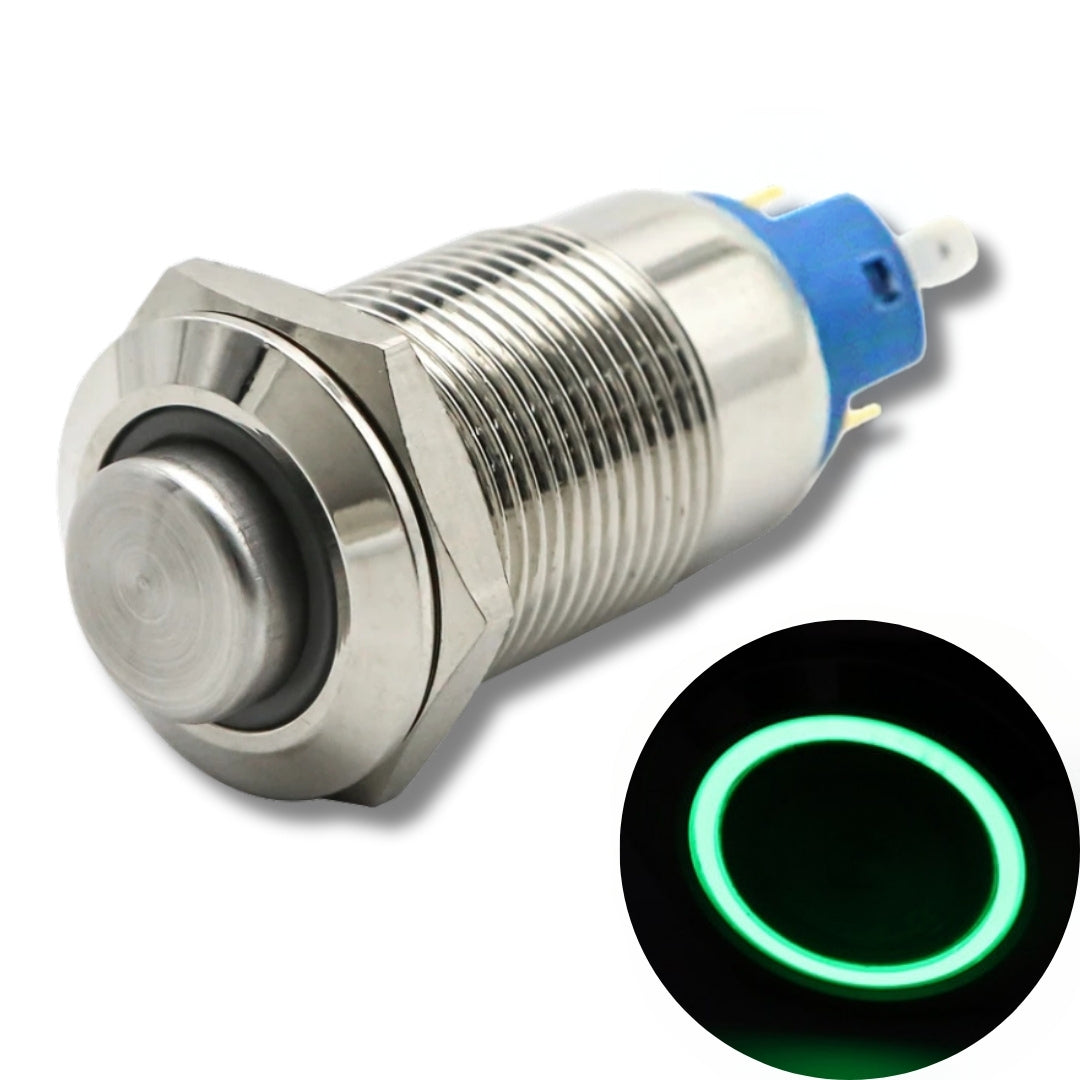

Illuminated Stainless-Steel Momentary Push Button Switches, 12mm–22mm
This grouped family of illuminated momentary push button switches is designed for compatible electrical panels, control boxes, machinery and automation systems. Choose the required mounting size, LED voltage and face style from the available variants.
How the momentary action works
The switch remains ON only while the button is pressed and automatically returns to its normal state when released.
Available configurations
- Mounting sizes: 12mm, 16mm, 19mm and 22mm
- LED voltage options: 5–24V DC or 210–240V AC

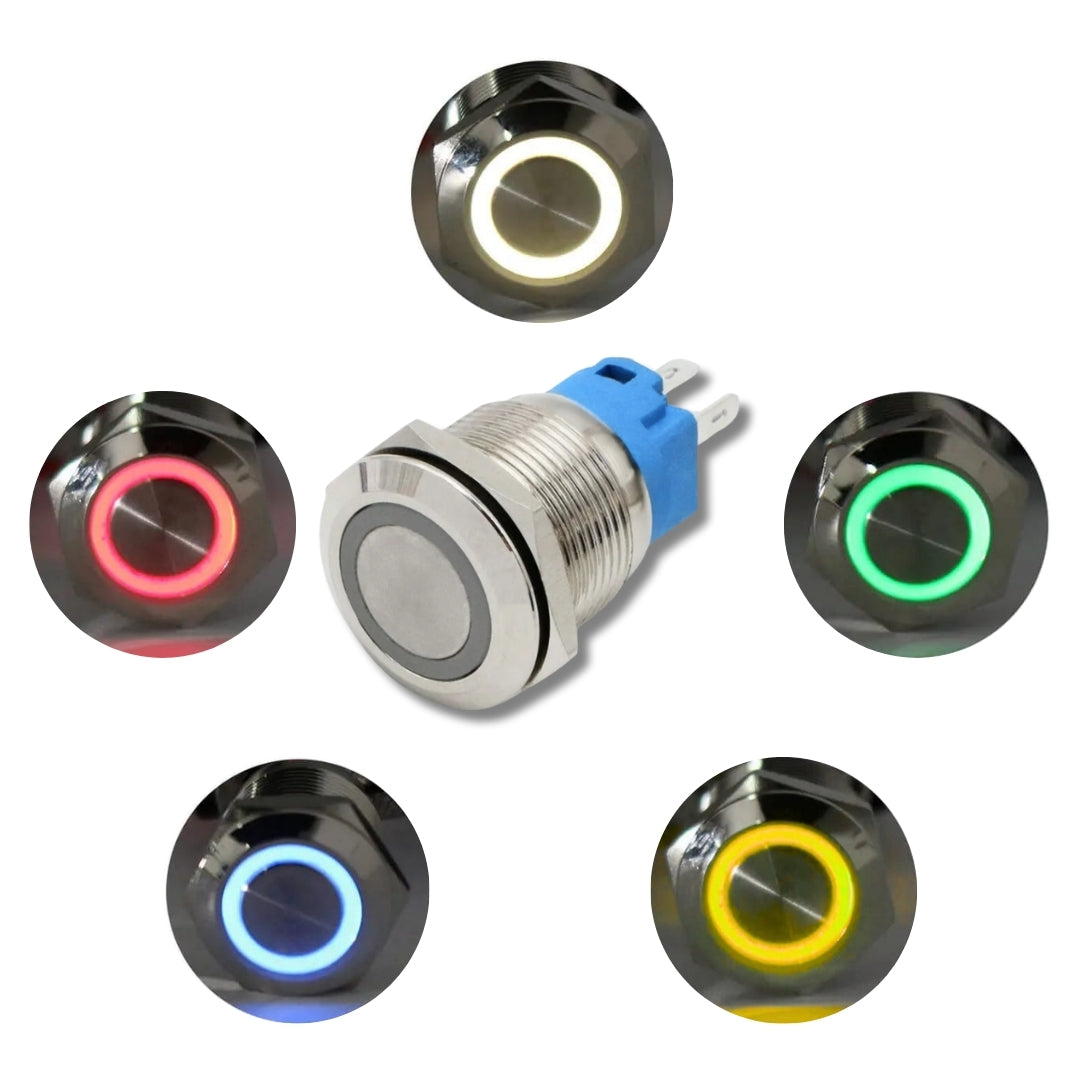

- Face styles: illuminated round ring or illuminated power symbol
- LED colours available according to the selected variant

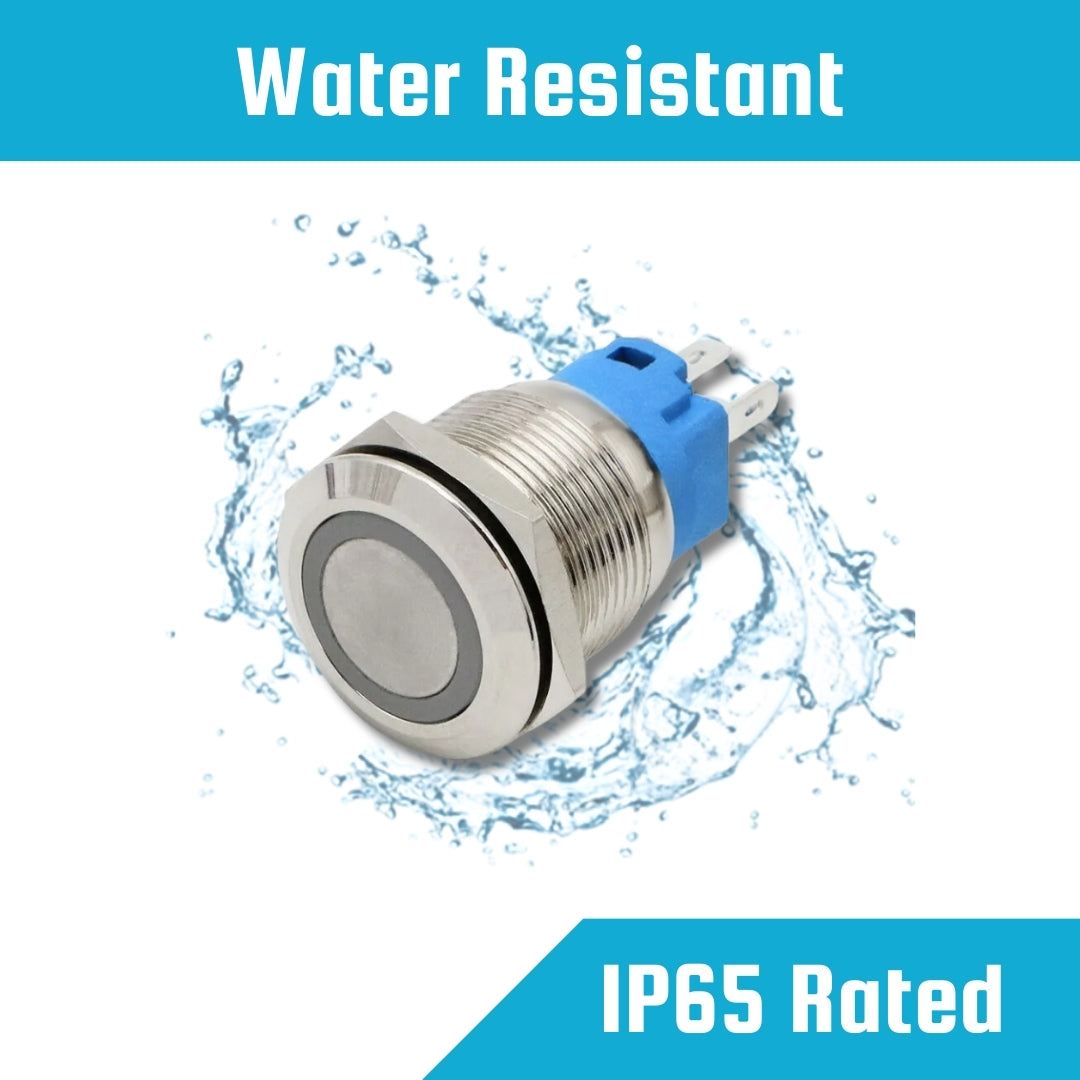

- IP65 protection rating as listed for this product family
- Stainless-steel body construction as listed for this product family
- Independent LED and switch terminals
Size, load and terminal configuration
| Mounting size | Listed load capacity | Terminal configuration |
|---|---|---|

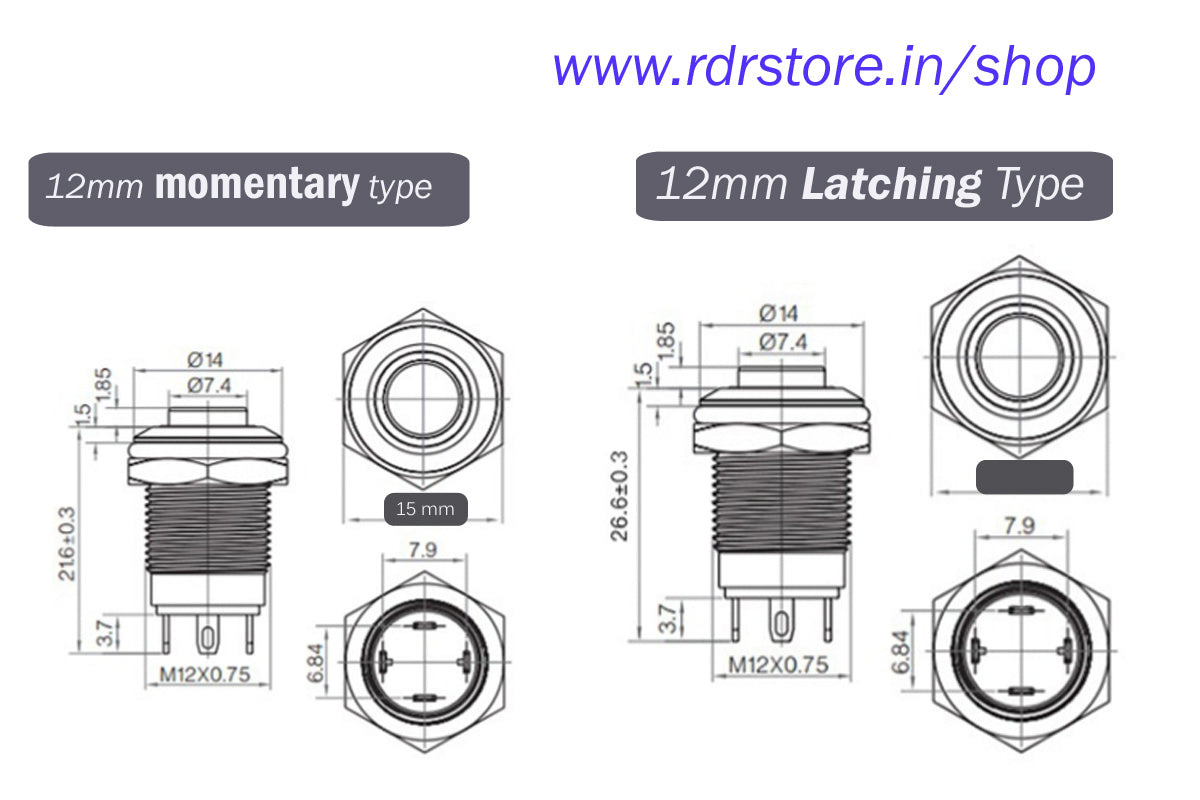

| 12mm | 1A | 4 terminals: C, NO, LED+, LED- |

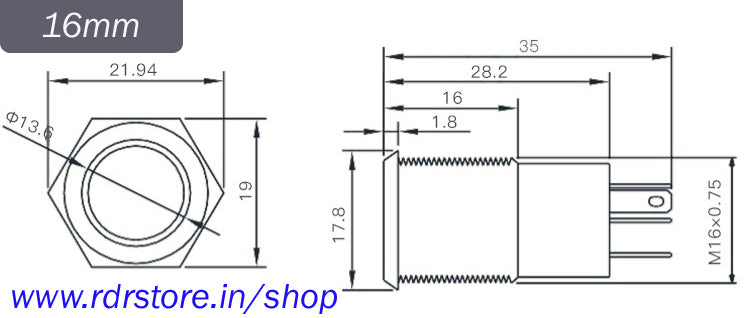

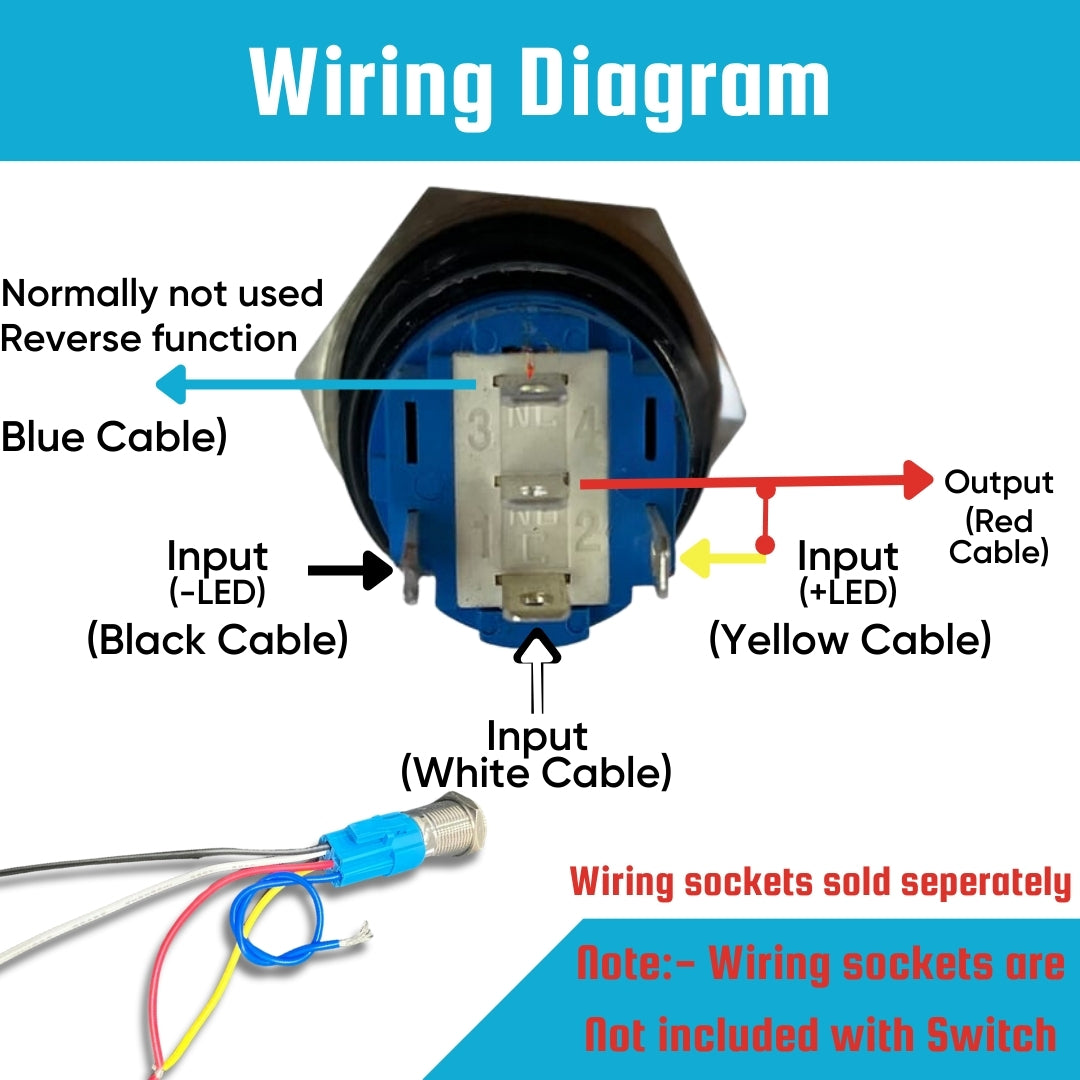

| 16mm | 4.5A | 5 terminals: LED+, LED-, COM, NO, NC |
| 19mm | 7.5A | 5 terminals: LED+, LED-, COM, NO, NC |

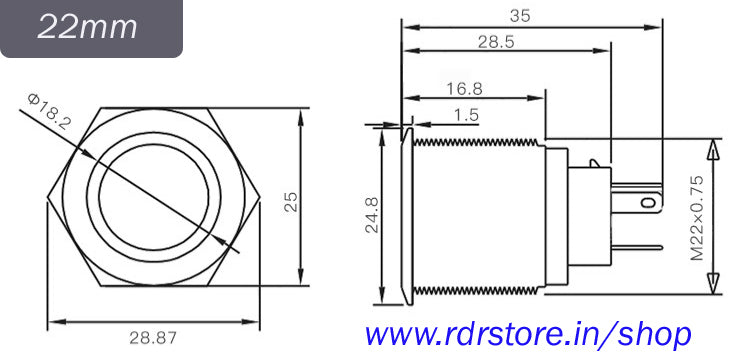

| 22mm | 10A | 5 terminals: LED+, LED-, COM, NO, NC |
Selection and installation note
Confirm the required mounting-hole diameter, switch action, LED supply voltage, terminal layout and electrical load before ordering. Select the correct AC or DC LED-voltage variant for your circuit. For mains-voltage or high-current applications, appropriate electrical installation practices are required.
Warranty
This product family is listed with a 3-month piece-to-piece replacement guarantee and an 11-month total warranty. After the first 3 months, parts charges may apply while repair labour remains free; customer-paid shipping terms apply as listed in the current warranty record.
Shipping & returns
Shipping charges, delivery timelines, and return or replacement eligibility are shown according to the store policy and checkout details.
Product Specifications
Specifications shown are for the selected pushbutton variant.
Selected Variant: 12mm / 5 to 24v DC / White Round Ring
| Loading… |
Product Datasheet
Datasheet shown corresponds to the selected pushbutton variant.
Selected Variant: 12mm / 5 to 24v DC / White Round Ring
Download or view the detailed technical datasheet below.
Not available at the moment.
Bulk Pricing (Excl. GST)
Bulk pricing shown applies to the selected pushbutton variant.
Selected Variant: 12mm / 5 to 24v DC / White Round Ring
Base price: ₹ 0.00
| Qty | Discount | Unit Price (Excl. GST) |
|---|---|---|
| 10 | 5% | ₹ 0.00 |
| 20 | 7% | ₹ 0.00 |
| 50 | 10% | ₹ 0.00 |
| 100 | 12% | ₹ 0.00 |
| 250 | 15% | ₹ 0.00 |
| 500 | 18% | ₹ 0.00 |
| 1000+ | 20% | ₹ 0.00 |
Guarantee & Warranty
This information applies to all variants.
Warranty & Guarantee Details
3 month piece to piece replacement guarantee , Total 11 month warranty, after 3 month you need to pay for parts, we will repair it for free. Shipping charges needs to be paid by customer or deliver and pickup from our office location
What Voids Warranty
Damage from misuse
Modification
Physical abuse.
Wiring connectors
Locks directly with Pushbuttons. Make Wiring hassle free.
For Selected Pushbutton: 12mm / 5 to 24v DC / White Round Ring
Questions buyers ask before ordering
Frequently Asked Questions
Open a question to see the answer.
This momentary family lists 12mm, 16mm, 19mm and 22mm mounting sizes.
The switch is active while pressed and returns to its normal state when released.
The listed variants use either 5–24V DC or 210–240V AC LED supplies. Choose the correct voltage for your circuit.
Yes. The listed load and terminal configuration differ across 12mm, 16mm, 19mm and 22mm sizes; check the size table before ordering.
Yes. IP65 is listed for this product family, subject to correct panel installation and sealing.
The page lists 3-month piece-to-piece replacement and 11-month total warranty terms, with the stated repair, parts and shipping conditions.
Panel control selection
Check panel fit, switching behaviour and wiring
Choose the product by its panel opening, operating action, electrical details and connection requirements. The selected variant and product specifications are the final reference.
Before ordering
Confirm the essential selection details
The information below is a checking sequence. Use the selected variant and populated product specifications for the exact values.
Panel opening
Confirm the required mounting or cut-out size before ordering.
Operating action
Check whether the application requires momentary, latching or another stated action.
Electrical details
Match the stated voltage, contact arrangement and load information to the circuit.
Illumination and wiring
Confirm LED colour, supply requirements, terminals, pin count and compatible accessories where stated.
Variant clarity
Compare the available product options
Price, SKU and availability are shown for each current Shopify variant. Select the required option in the purchase area before adding it to the cart.
