GYL

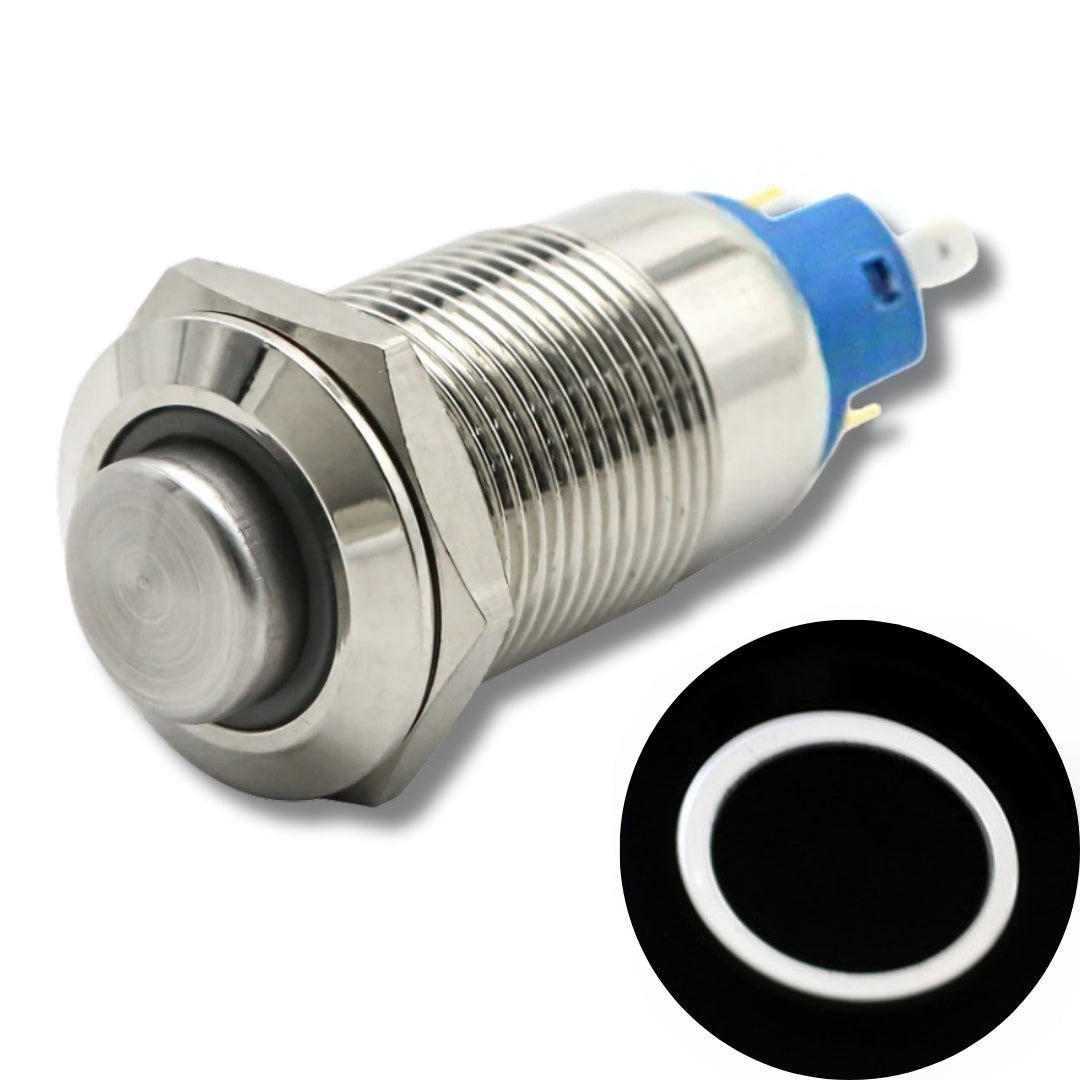

Stainless Steel Momentary Push Button Switch
Stainless Steel Momentary Push Button Switch
Estimated delivery time
Get fastest by
08 Jul 2026
Regular price
₹145.00
Regular price
Sale price
₹145.00
Unit price
per
(
₹
122.88
+ 18% GST Extra
)
Couldn't load pickup availability
Bulk Inquiry?
COD Available
UPI
Cards Accepted
Net Banking
Product Description
This information applies to all variants.
- 5-24v DC OR 240v AC Power LED
- It is an IP65 rated product.
- 12mm: 1amp,16mm : 4.5amp, 19mm: 7.5amp, 22mm: 10amp loading capacity.
- 12mm: 4pin: (C,NO,LED+,LED-)

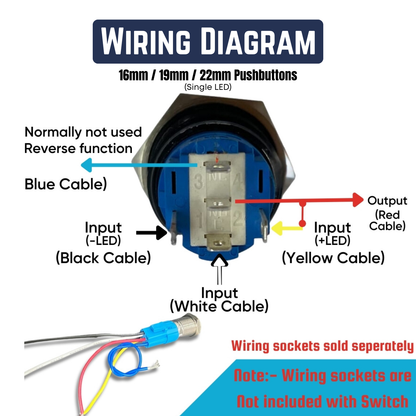

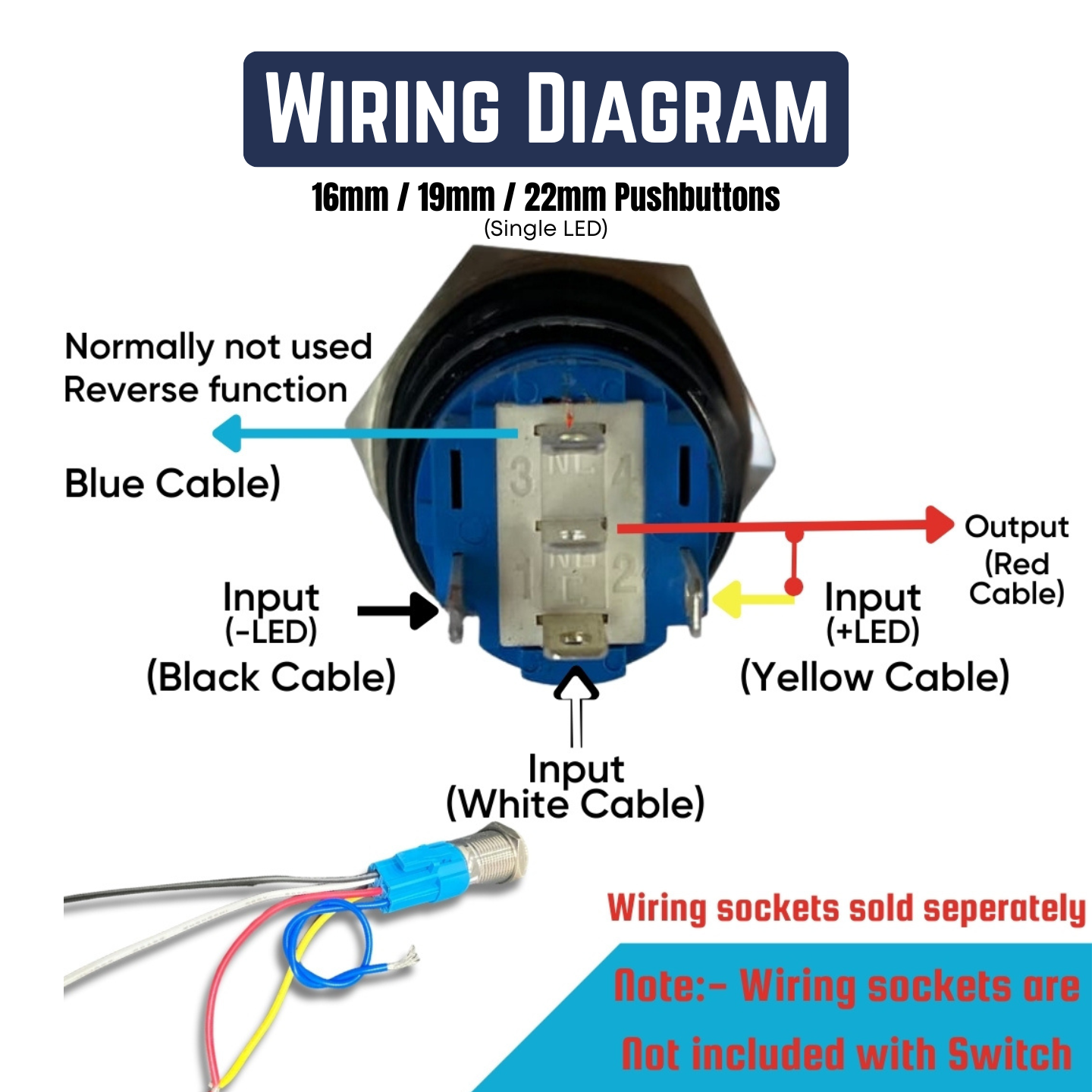

16mm, 19mm and 22 mm : 5 pin = 1 -LED +,1 – LED -, 1 – COM, 1 – NO, 1 – NC. - High Quality Stainless Steel Material.
- 3 month replacement Guarantee.

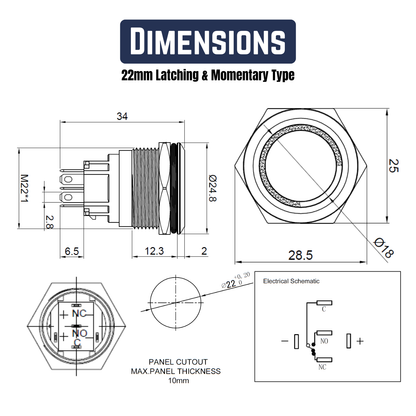

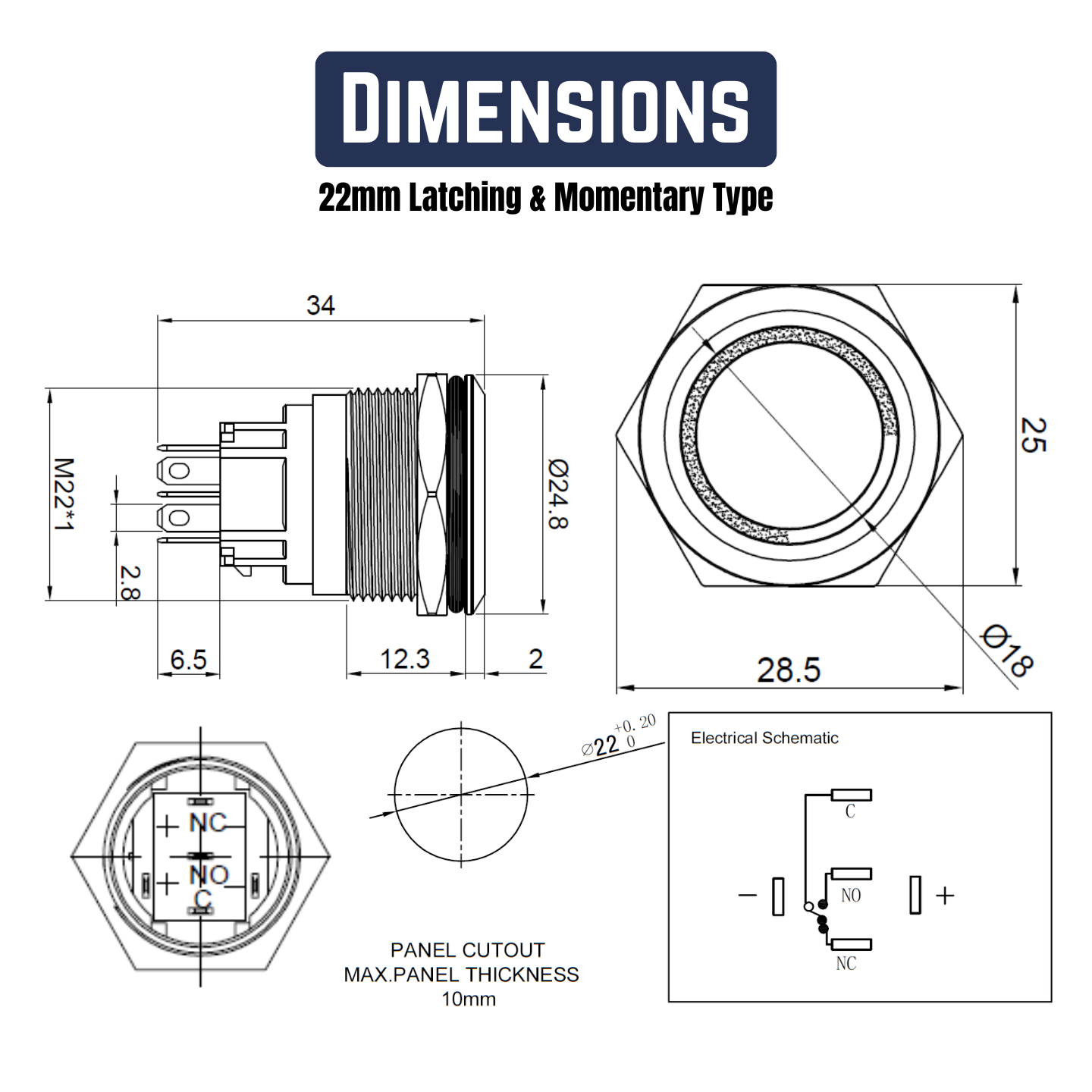

- Mounting Hole Diameter 12mm, 16mm, 19mm, 22mm as your selection.
- Tested for more than 30,000 presses.
- Stainless steel material for long period use.
- In-built illuminated LED.
- Independent LED and Switch Terminals.
- Good Electrical Conductivity.
- Rubber ring and nut for fixing, Waterproof and dustproof.
Country of Origin: China - NOTE :-Latching ON/OFF Type Switch will works as it will be ON on the first press and OFF on the second press.
Product Highlights
- 16mm panel-mount size
- Latching Type operation
- Compatible with 24v DC circuits
- Stainless Steel body
- IP65 protection rating
- 4pin terminal configuration
Product Specifications
| Mounting size | 16mm |
| Voltage | 24v DC |
| Operation | Latching Type |

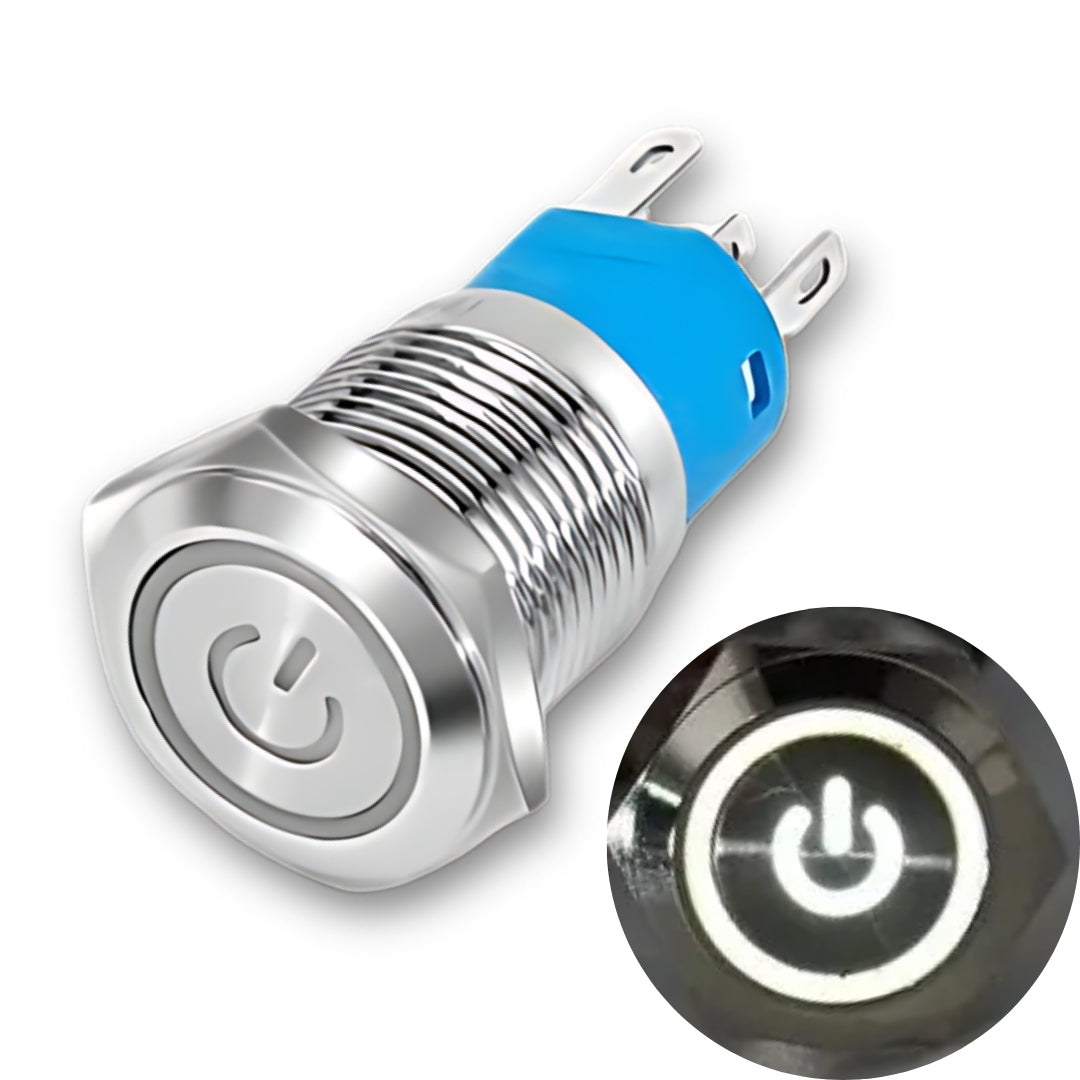

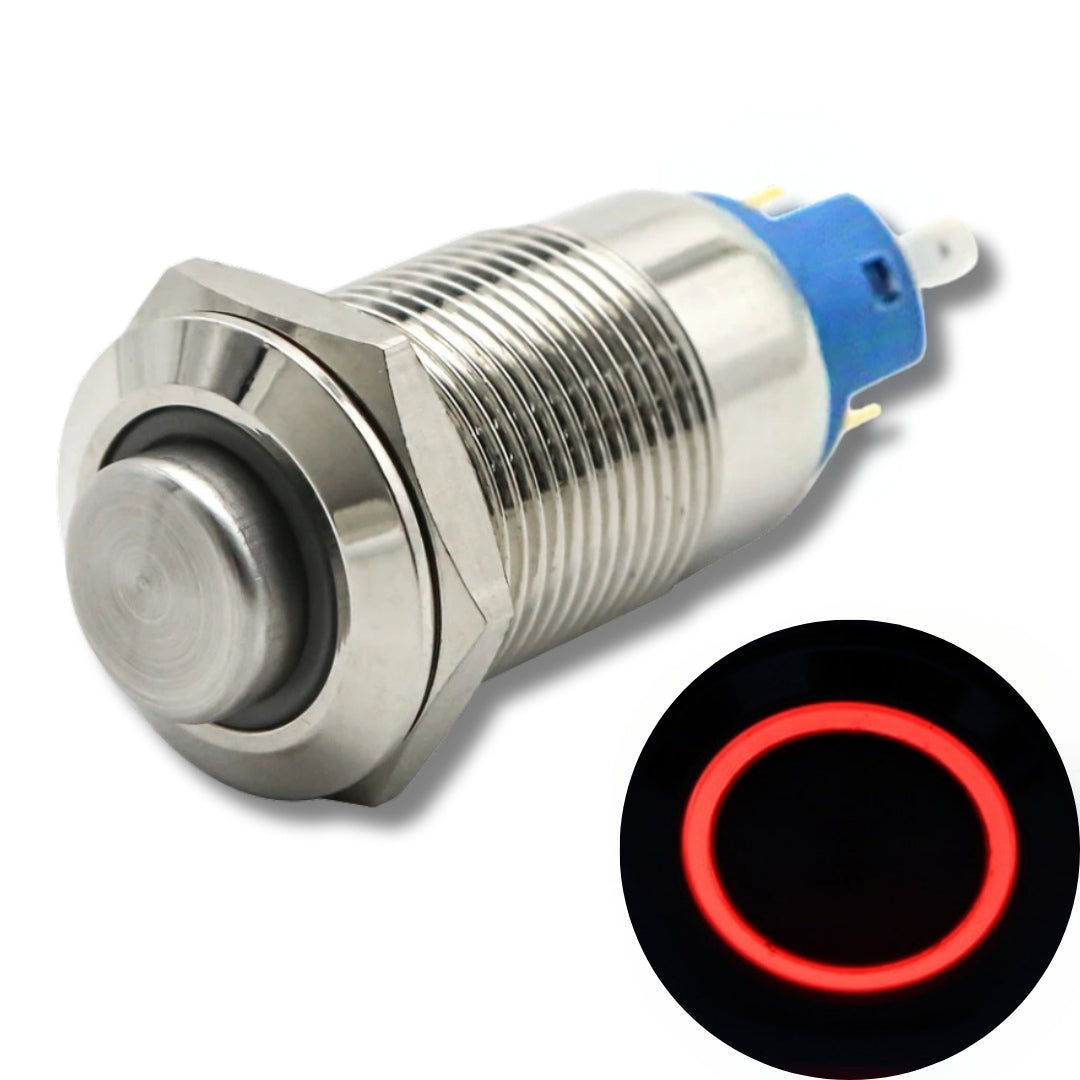

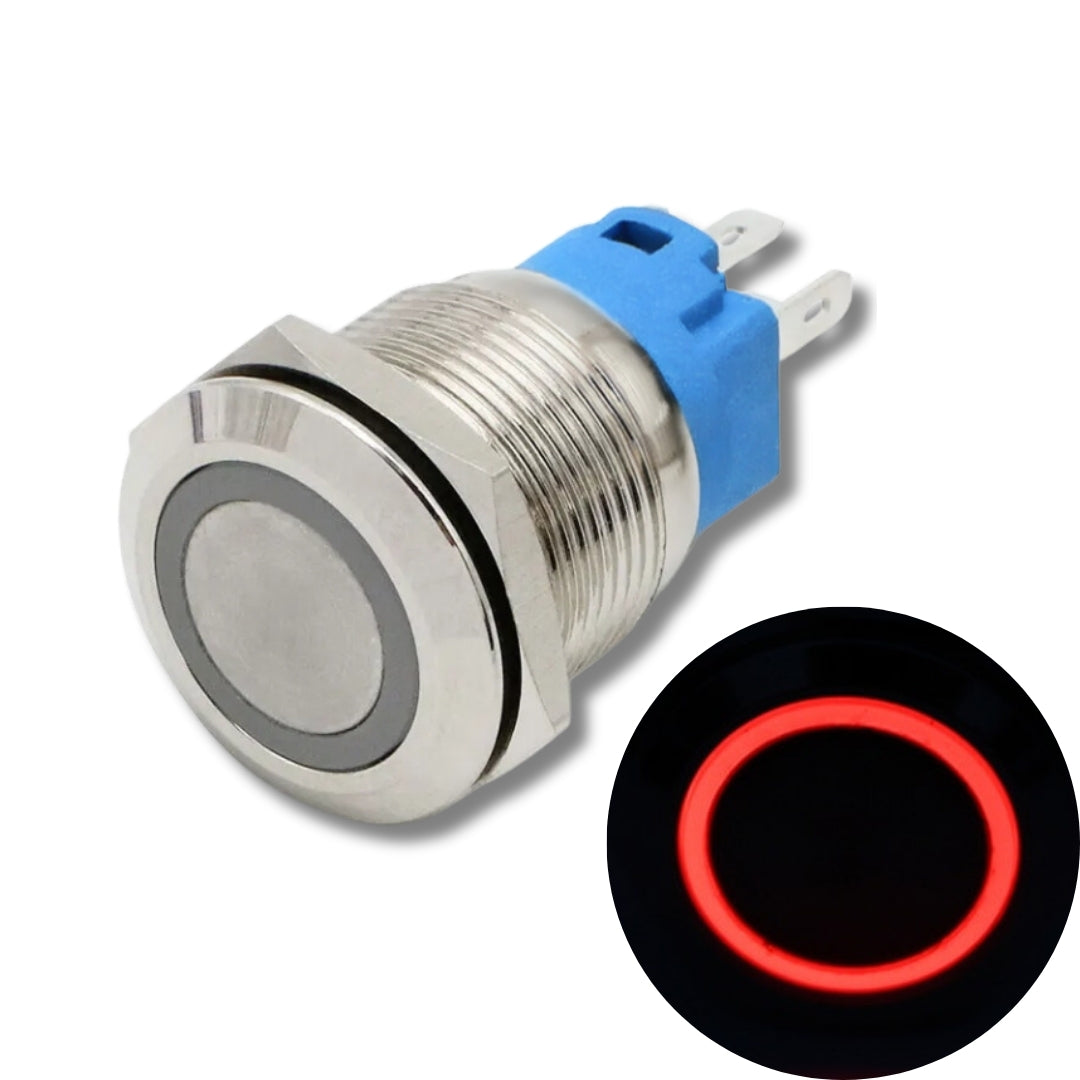

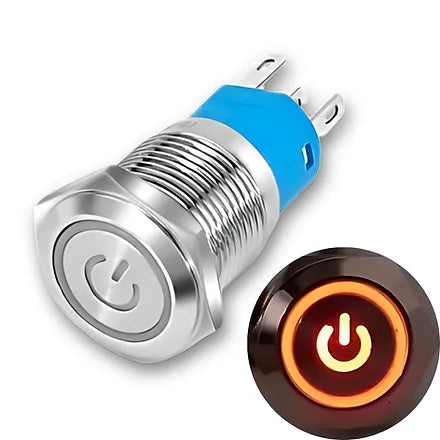

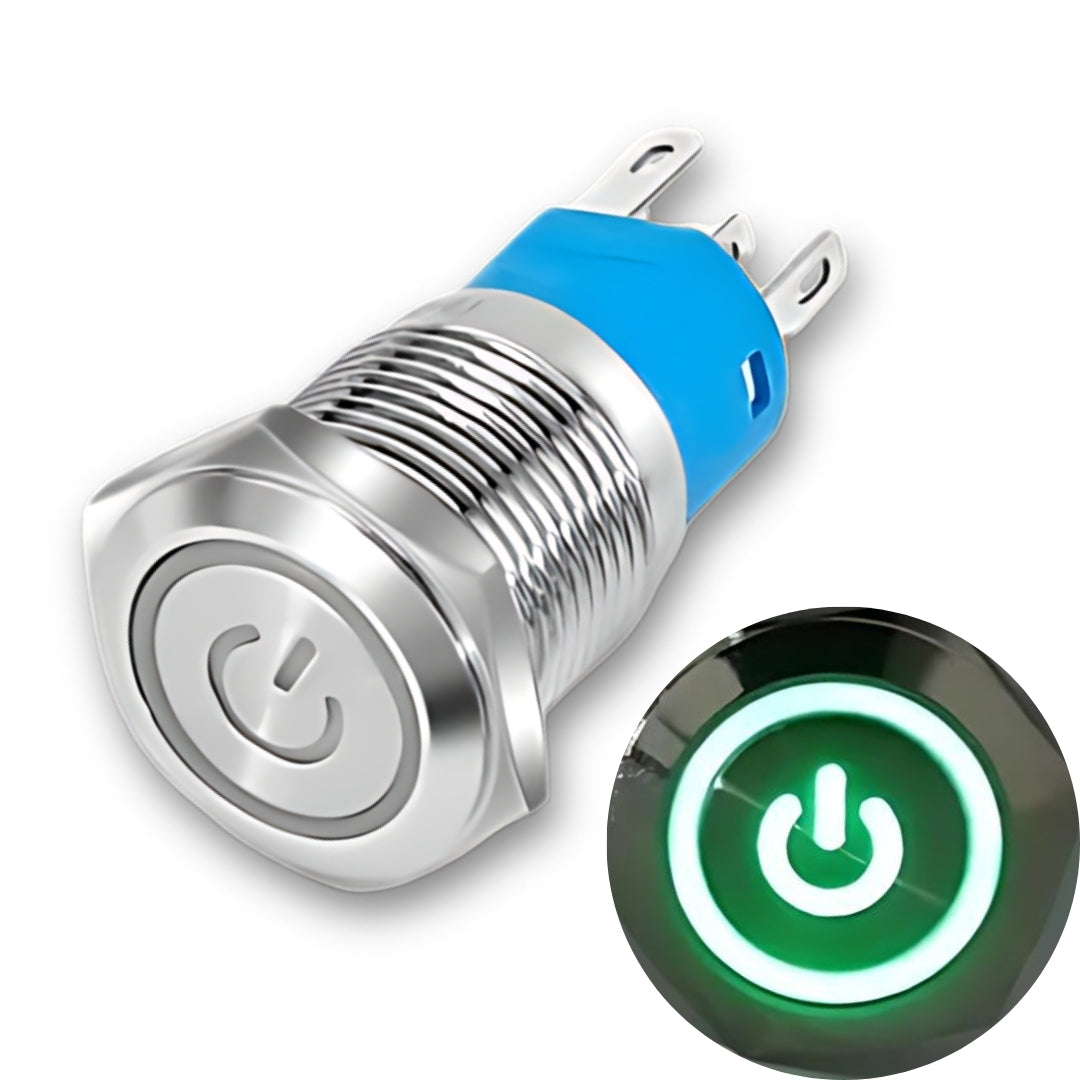

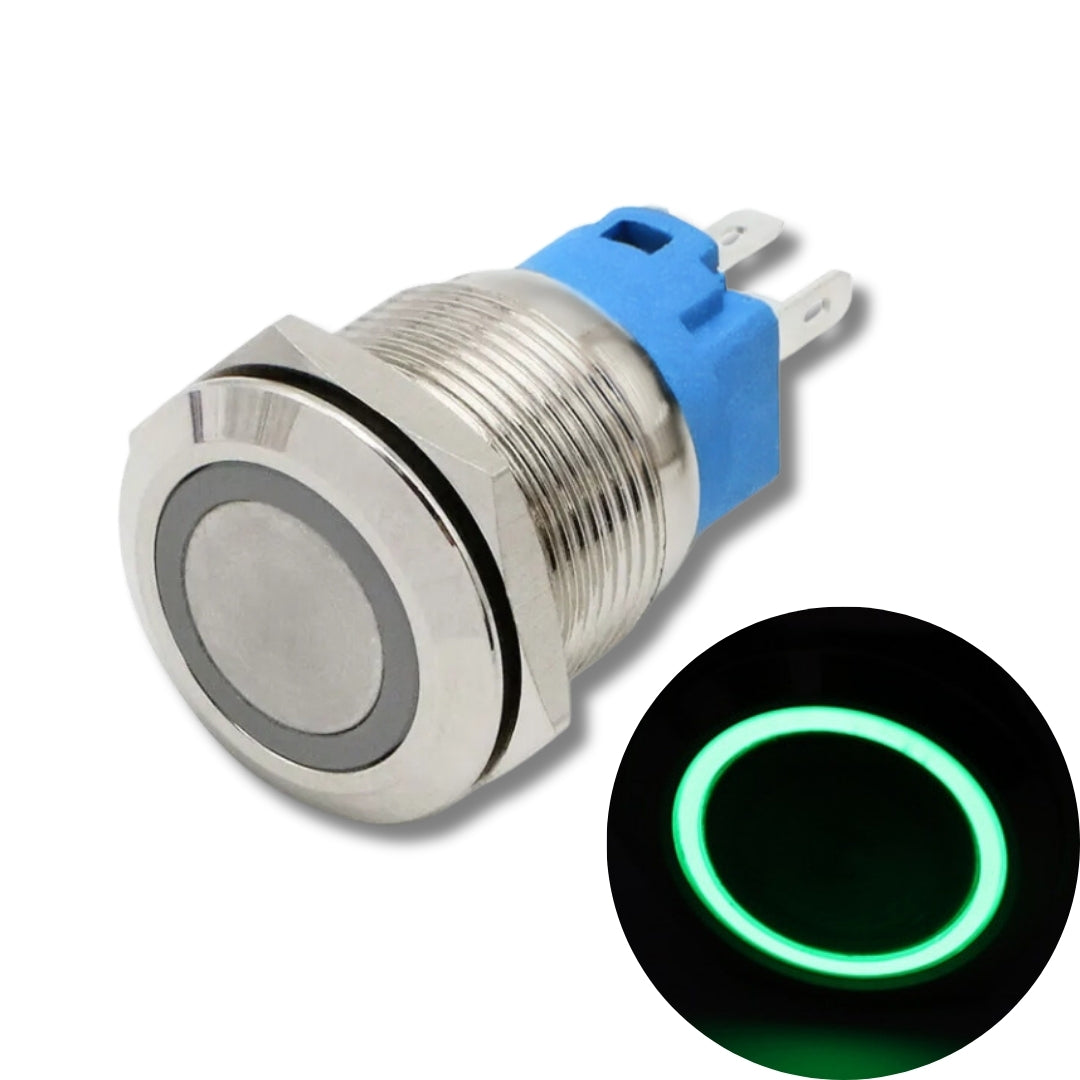

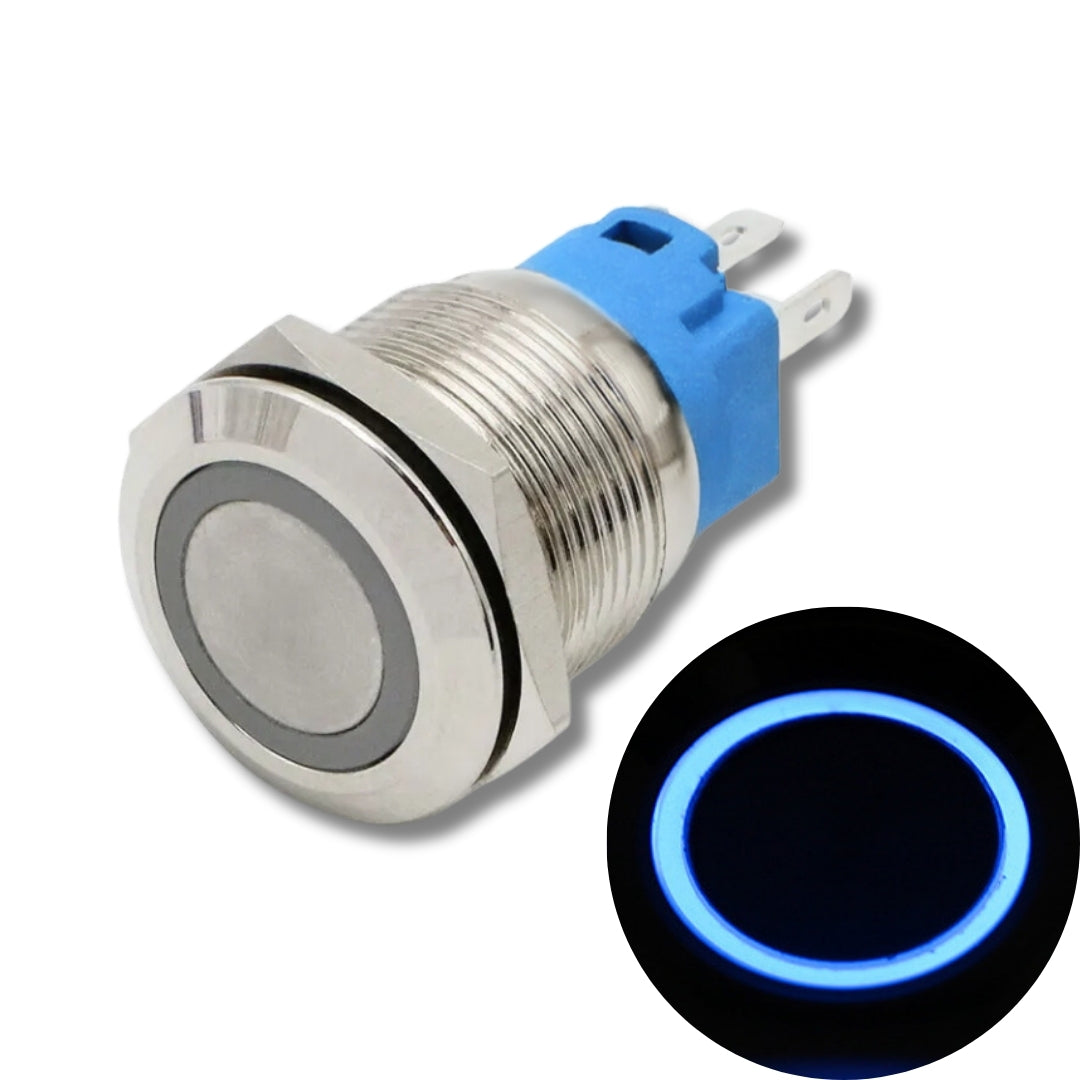

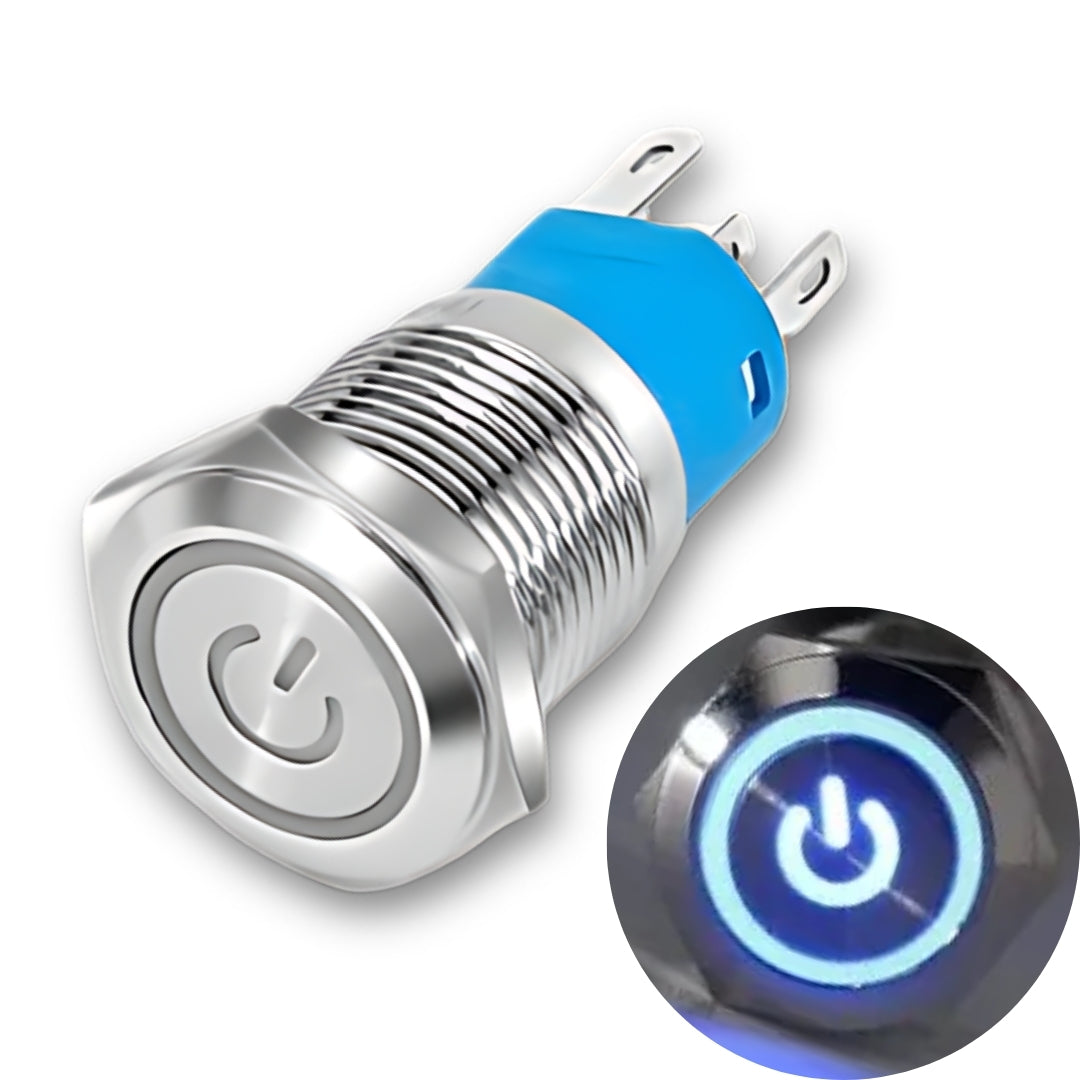

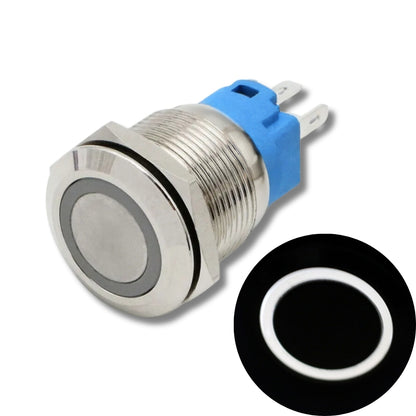

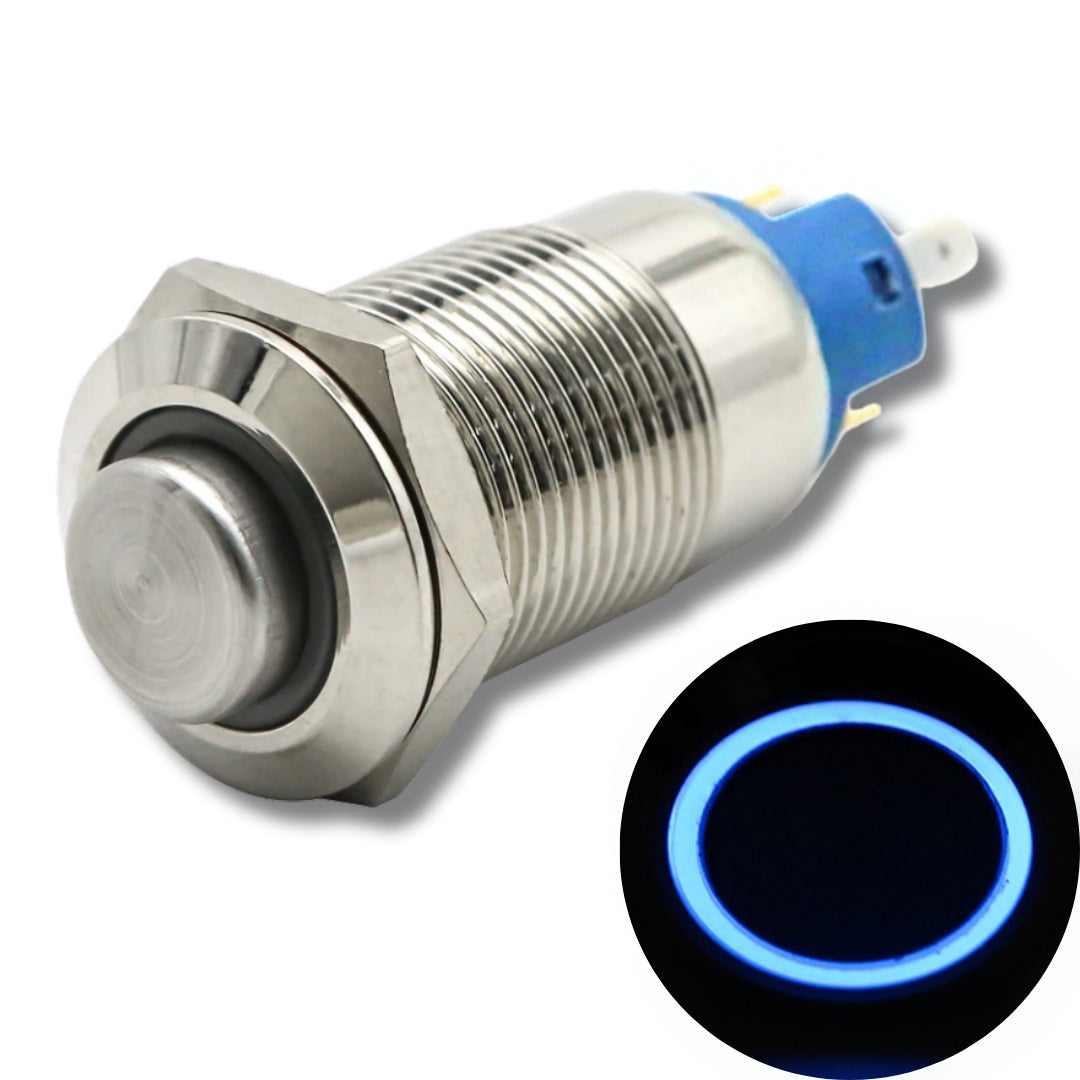

| Colour | White-Round-Ring; Red-Round-Ring; Blue-Round-Ring; Green-Round-Ring; White-Power-Symbol; Red-Power-Symbol; Blue-Power-Symbol; Green-Power-Symbol |
| Material | Stainless Steel |
| Pin count | 4pin |
| IP rating | IP65 |
Product Specifications
Specifications shown are for the selected pushbutton variant.
Selected Variant: 12mm / 5 to 24v DC / White Round Ring
| Loading… |
Product Datasheet
Datasheet shown corresponds to the selected pushbutton variant.
Selected Variant: 12mm / 5 to 24v DC / White Round Ring
Download or view the detailed technical datasheet below.
Not available at the moment.
Bulk Pricing (Excl. GST)
Bulk pricing shown applies to the selected pushbutton variant.
Selected Variant: 12mm / 5 to 24v DC / White Round Ring
Base price: ₹ 0.00
| Qty | Discount | Unit Price (Excl. GST) |
|---|---|---|
| 10 | 5% | ₹ 0.00 |
| 20 | 7% | ₹ 0.00 |
| 50 | 10% | ₹ 0.00 |
| 100 | 12% | ₹ 0.00 |
| 250 | 15% | ₹ 0.00 |
| 500 | 18% | ₹ 0.00 |
| 1000+ | 20% | ₹ 0.00 |
Guarantee & Warranty
This information applies to all variants.
Warranty & Guarantee Details
3 month piece to piece replacement guarantee , Total 11 month warranty, after 3 month you need to pay for parts, we will repair it for free. Shipping charges needs to be paid by customer or deliver and pickup from our office location
What Voids Warranty
Damage from misuse
Modification
Physical abuse.
Replacement guarantee
FREE Delivery
GST Billing
Quality Checked
Wiring connectors
Locks directly with Pushbuttons. Make Wiring hassle free.
For Selected Pushbutton: 12mm / 5 to 24v DC / White Round Ring
Frequently Asked Questions
Is professional installation recommended?
+
For high-voltage or high-current applications, installation by a qualified technician or electrician is strongly recommended to ensure safety and compliance.
Can this pushbutton be used with both AC and DC power?
+
Yes, provided you select the correct AC or DC voltage variant. The LED voltage must always match the supply voltage.
Is this pushbutton suitable for industrial or outdoor use?
+
Yes. Due to its stainless steel construction and IP65 rating, it is suitable for industrial panels, automation systems, control boxes, and semi-outdoor installations.
Does the pushbutton include built-in illumination?
+
Yes. All variants feature an in-built illuminated LED, enhancing visibility and operational feedback.
What mounting hole sizes are supported?
+
The pushbutton is available for 12mm, 16mm, 19mm, and 22mm mounting hole diameters. Select the required size based on your panel or enclosure.
Are the LED and switch circuits independent?
+
Yes. The LED illumination and the switch contacts have independent terminals, allowing flexible wiring and control of the LED separately from the switch operation.
