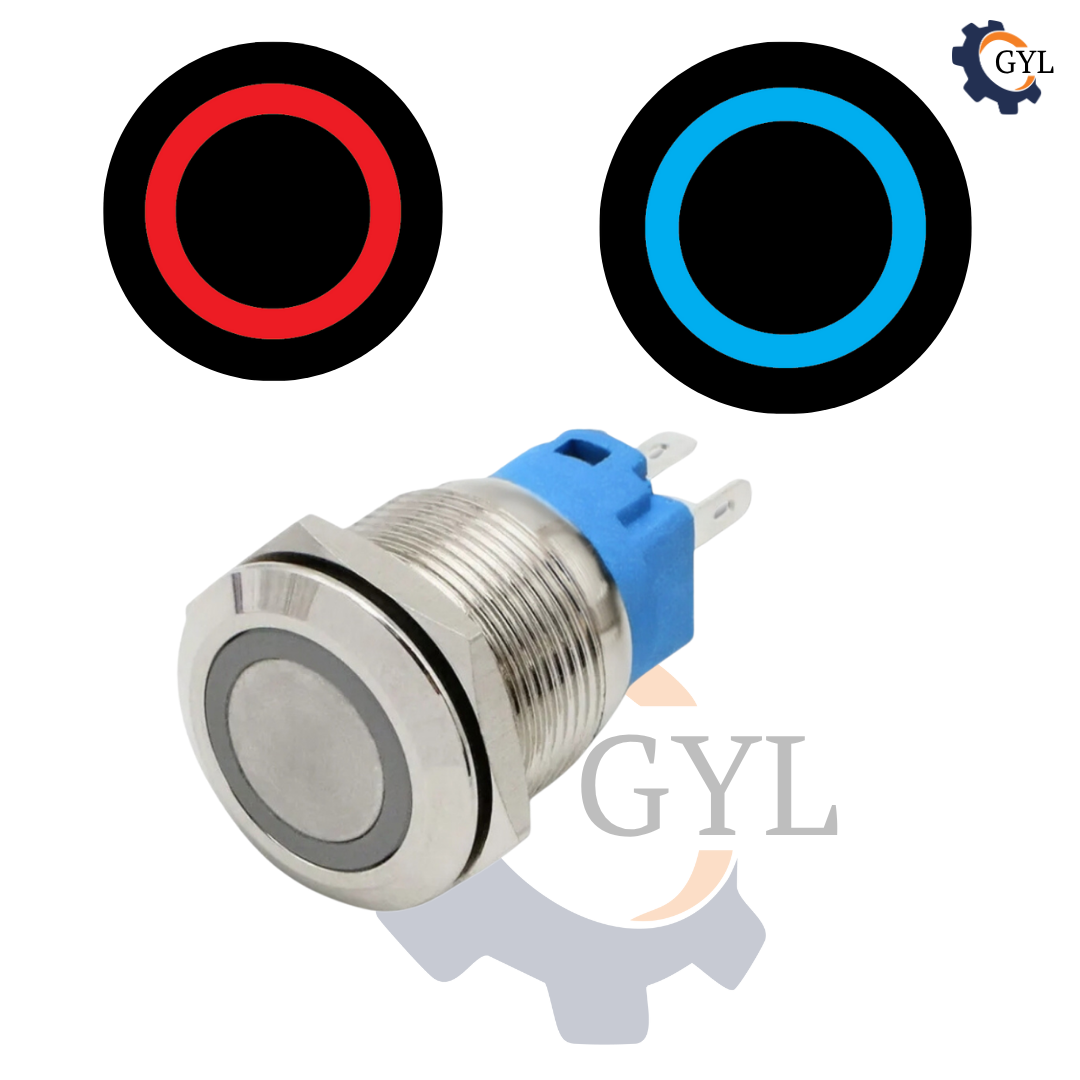

22mm Red + Blue LED Momentary Push Button Switch 12V DC

DPDT

• 12v DC Power LED (4.5v to 24v).
• Inside LED color - Red/Blue
• It is an IP65 rated product.
• 10 amp loading capacity.
• 9 pin = 3 – LED, 2 – COM, 2 – NO, 2 – NC.
• High Quality Stainless Steel Material.
• 3 month replacement Guarantee.
• Mounting Hole Diameter 22mm+.
• Tested for more than 30,000 presses.
• Stainless steel material for long period use.
• In-built round ring illuminated LED.
• Independent LED and Switch Terminals.
• Good Electrical Conductivity.
• Rubber ring and nut for fixing, Waterproof and dustproof.

NOTE:- Momentary means Horn type switch which works as it will be in ON position till you press it and will auto-reset itself as soon as you release it.

Product Highlights

• 22mm panel-mount size
• Momentary Type operation
• Compatible with 12v DC circuits
• Red LED indication
• Stainless Steel body
• IP65 protection rating

Product Specifications
