Product Description

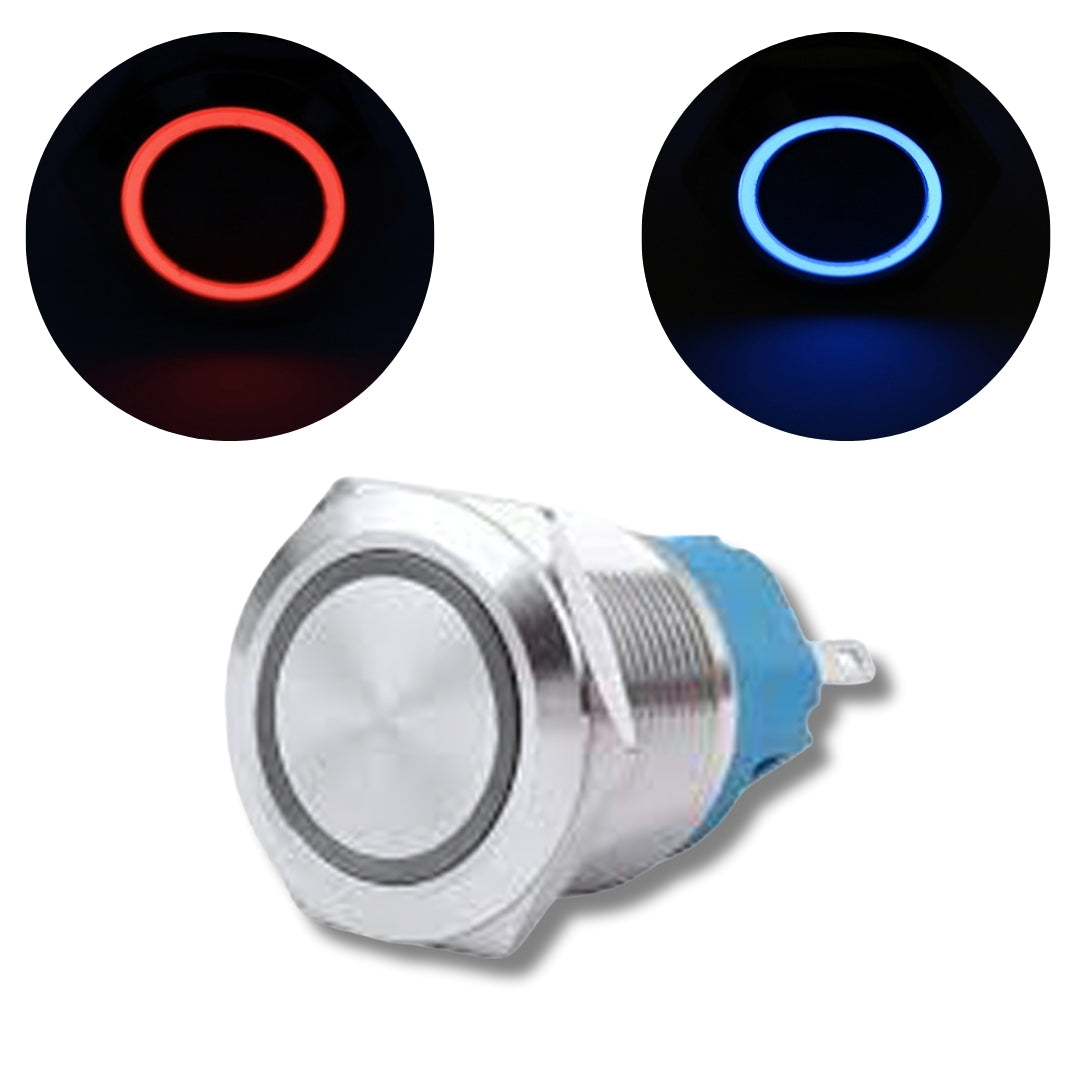

22mm Red + Blue Dual-LED DPDT Momentary Push Button, 12V DC, 9-Pin
This 22mm momentary push button switch combines red and blue LED indication with a DPDT switching arrangement and a 9-pin terminal configuration.
Key specifications
| Mounting size | 22mm |
| Action | Momentary: active while pressed, returns when released |

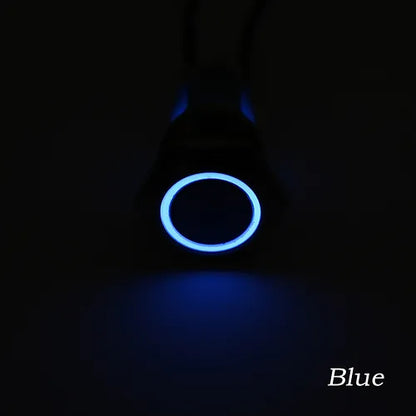

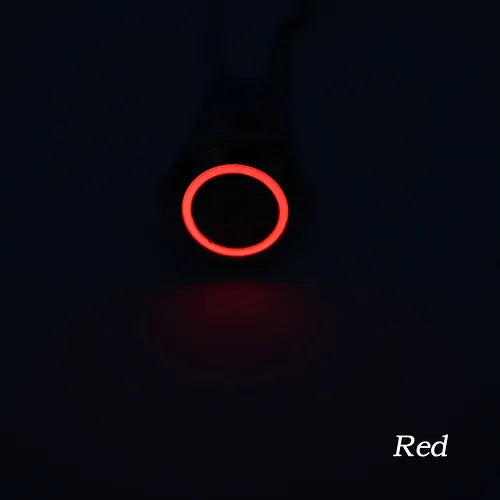

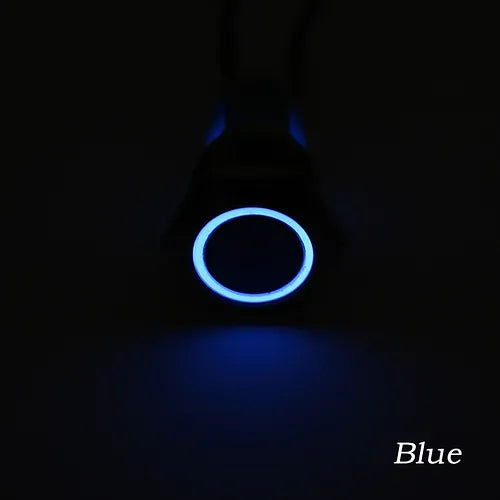

| LED colours | Red and Blue |
| Nominal LED voltage | 12V DC |
| Listed LED operating range | 4.5–24V DC |
| Switch configuration | DPDT |
| Terminal count | 9 pins |

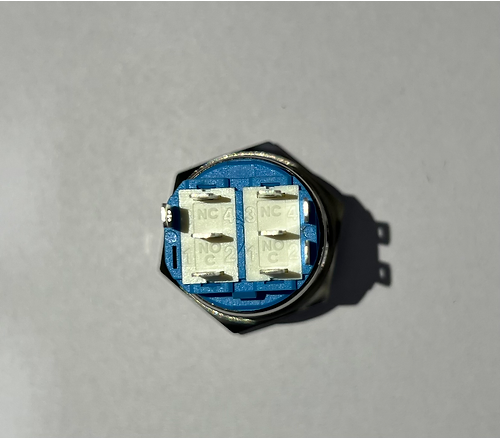

| Listed terminal grouping | 3 LED, 2 COM, 2 NO, 2 NC |
| Body | Metal body |
| Listed protection rating | IP65 |
Selection and installation note
Bulk Pricing (Excluding GST)
| Quantity | Discount | Unit Price (Excl. GST) |
|---|---|---|
| 10 nos | 5% | ₹ 422.67 |
| 20 nos | 7% | ₹ 413.77 |
| 50 nos | 10% | ₹ 400.42 |
| 100 nos | 12% | ₹ 391.53 |
| 250 nos | 15% | ₹ 378.18 |
| 500 nos | 18% | ₹ 364.83 |
| 1000 nos & more | 20% | ₹ 355.93 |
Complete the installation
Accessories for this Pushbutton
Enhance your installation with these recommended accessories.
Questions buyers ask before ordering
Frequently Asked Questions
Open a question to see the answer.
Use a 22mm mounting hole, based on the product title.
It is momentary, so the actuator returns when released.
Use the listed 12V DC supply and match any LED circuit to the exact rated voltage.
Do not exceed the current or load rating in the detailed product specifications.
Yes for mains, high-current or unfamiliar control circuits. Isolate power and have a qualified technician verify the wiring and application.
Panel control selection
Check panel fit, switching behaviour and wiring
Choose the product by its panel opening, operating action, electrical details and connection requirements. The selected variant and product specifications are the final reference.
Before ordering
Confirm the essential selection details
The information below is a checking sequence. Use the selected variant and populated product specifications for the exact values.
Panel opening
Confirm the required mounting or cut-out size before ordering.
Operating action
Check whether the application requires momentary, latching or another stated action.
Electrical details
Match the stated voltage, contact arrangement and load information to the circuit.
Illumination and wiring
Confirm LED colour, supply requirements, terminals, pin count and compatible accessories where stated.
