DC 24V D30 / L22 10KG Lifting Solenoid Electromagnet

• Model:ER30/22

• Item:Holding Electric Magnet

• Input Voltage:DC 12V Optional
• Power Consumption: 5W
• Holding FORCE: 10KG/100N
• material: metal
• Color: Silvery

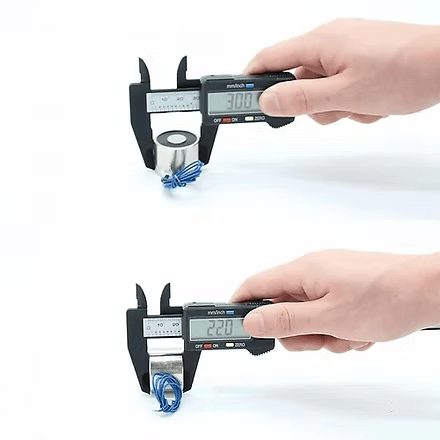

• Diameter: 30 mm
• Height: 22 mm
• Lifting Capacity: 10KG
• Center Diameter: 12 mm
• Thread size: M4
• Electric lifting magnet.
• Powerful and compact.
• Smooth and flat surface.
• Low consumption and reliable.
• Ambient temperature within 130 degrees.

This DC 12V 30/22 10KG Lifting Solenoid Electromagnet consists of an iron core and a coil to attract magnetic substances, using the magnetic action induced by electric current, only while the current is applied. This compact functional device offers high power with high reliability. The structure and design to release the residual magnetism left after de-energization is also one of its unique features.

Working Principle:

An electromagnet is simply a coil of wire. It is usually wound around an iron core. However, it could be wound around an air core, in which case it is called a solenoid. When connected to a DC voltage or current source, the electromagnet becomes energized, creating a magnetic field just like a permanent magnet. The magnetic flux density is proportional to the magnitude of the current flowing in the wire of the electromagnet.

The polarity of the electromagnet is determined by the direction of the current. The north pole of the electromagnet is determined by using your right hand. Wrap your fingers around the coil in the same direction as the current is flowing (conventional current flows from + to -). The direction your thumb is pointing in the direction of the magnetic field so north would come out of the electromagnet in the direction of your thumb. DC electromagnets are principally used to pick up or hold objects

We supply many varieties of electromagnets with a higher power as well as lower, original dimensions, etc to satisfy your unique requirements.

Precaution:

Electromagnets must meet the following conditions to achieve maximum suction:

• The object to be sucked must have a good magnetic permeability.
• Proper use of power supply, rated voltage.
• The object to be sucked must be flat and clean.
• The object to be sucked must be greater than or equal to the surface of the magnet( For example the magnet is 30 x 22 mm, so the surface area is S=r²π=10²π mm² so the object to be sucked must be greater than or equal to 10²π mm² )
• The object to be sucked must be greater than 5mm. (If the thickness decreases, the suction decreases)
• The object to be sucked must be close, the middle can’t be interspersed with objects or gaps
• Suction means more than 5cm in thickness, surface roughness, the surface is greater than the cross-sectional area of the electromagnet and maximum suction completely fit together on an iron-based material.
• Electromagnet in working condition electromagnetic conversion would produce a certain amount of heat, electricity more frequently the higher temperature, which is a normal phenomenon.

Features:

• Electric lifting magnet.
• Powerful and compact.
• Smooth and flat surface.
• Low consumption and reliable.
• Ambient temperature within 130 degrees.
• Widely applied in automations: assembly line, sorting machine, mechanical arm, experimental facility, etc
• Electromagnet in working condition electromagnetic conversion would produce a certain amount of heat, electricity more frequently the higher temperature, which is a normal phenomenon.
