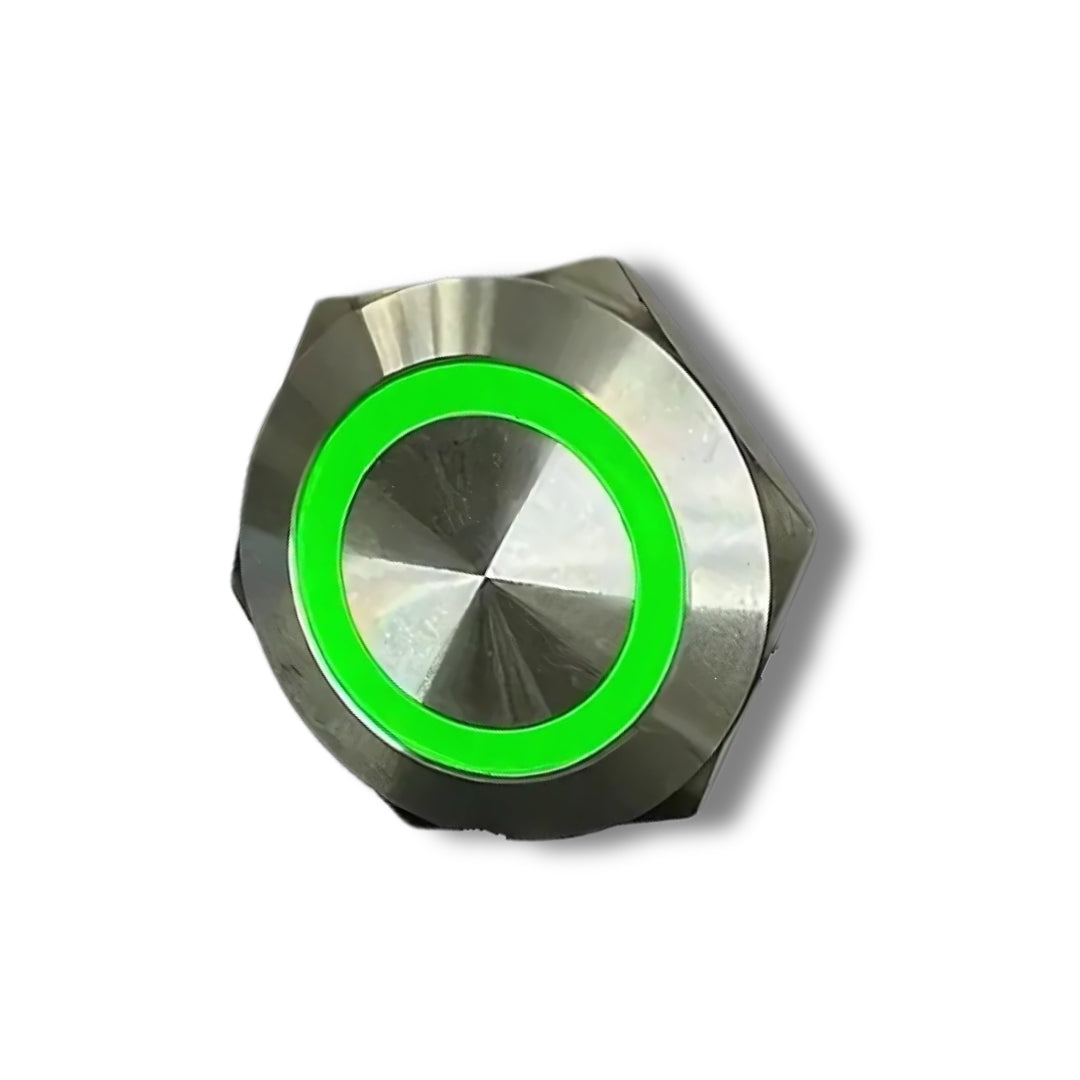

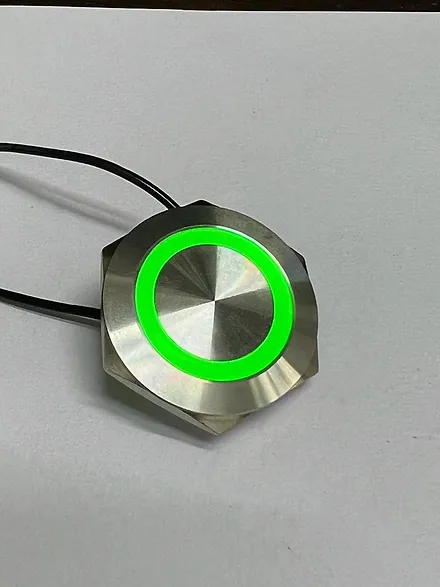

30mm Green LED Stainless Steel Momentary Push Button Switch 12V DC

• 12v DC Power LED (4.5v to 24v).
• It is an IP65 rated product.
• 1 amp loading capacity.
• 4 pin = 1 -LED +,1 – LED -, 1 – COM, 1 – NO.
• High Quality Stainless Steel Material.
• 3 month replacement Guarantee.

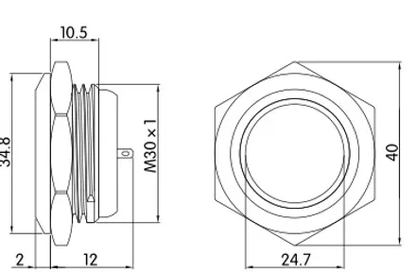

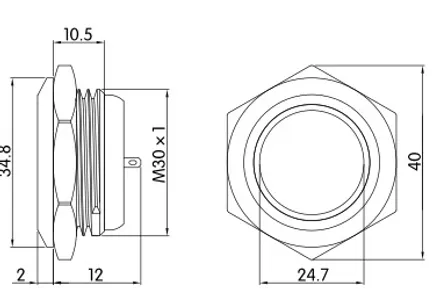

• Mounting Hole Diameter 30mm+.
• Tested for more than 30,000 presses.
• Stainless steel material for long period use.
• In-built round ring illuminated LED.
• Independent LED and Switch Terminals.
• Good Electrical Conductivity.
• Rubber ring and nut for fixing, Waterproof and dustproof.

NOTE:- Momentary means Horn type switch which works as it will be in ON position till you press it and will auto-reset itself as soon as you release it.

Product Highlights

• 30mm panel-mount size
• Momentary Type operation
• Compatible with 5V circuits
• Green LED indication
• Stainless Steel body
• IP65 protection rating

Product Specifications
