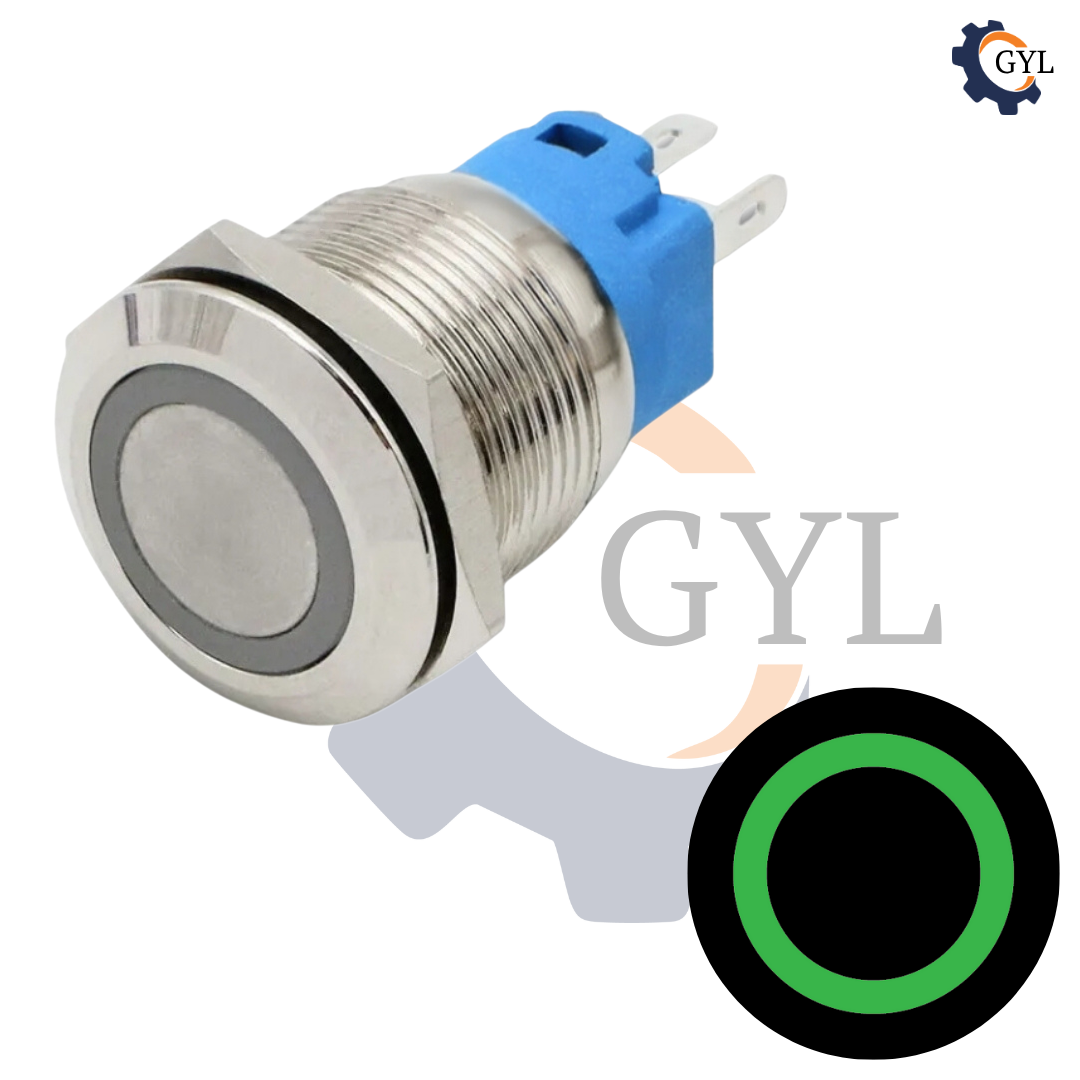

22mm Green LED Stainless Steel Momentary Push Button Switch 5–24V DC
22mm Green LED Stainless Steel Momentary Push Button Switch 5–24V DC
Estimated delivery time
Get fastest by
08 Jul 2026
Regular price
₹249.00
Regular price
Sale price
₹249.00
Unit price
per
(
₹
211.02
+ 18% GST Extra
)
Bulk Inquiry?
COD Available
UPI
Cards Accepted
Net Banking
Couldn't load pickup availability
100% Safe Payments
FREE Delivery
GST Billing
Quality Checked
Product Description
- 12v DC Power LED (4.5v to 24v).
- It is an IP65 rated product.
- 10 amp loading capacity.

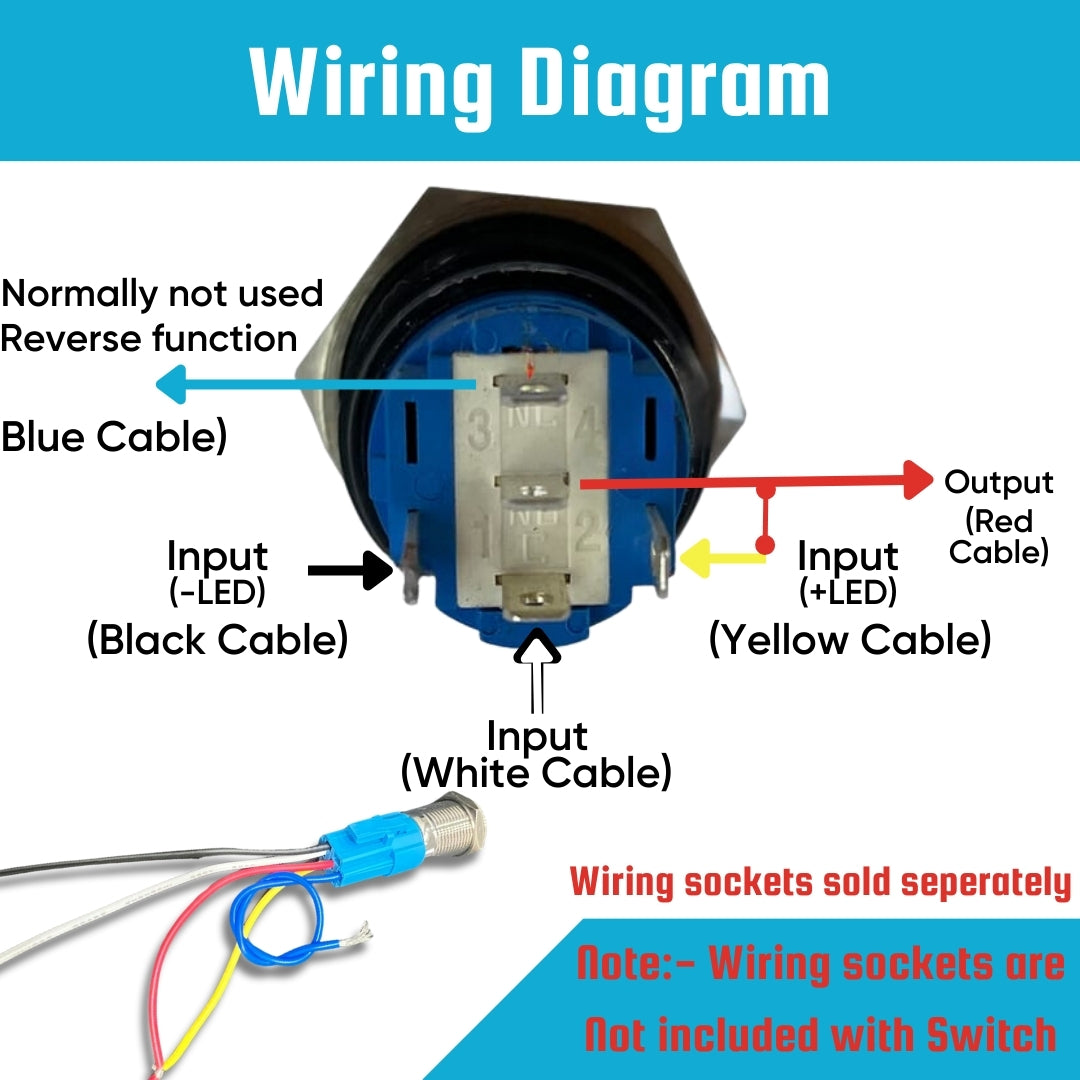

- 5 pin = 1 -LED +,1 – LED -, 1 – COM, 1 – NO, 1 – NC.
- High Quality Stainless Steel Material.
- 3 month replacement Guarantee.

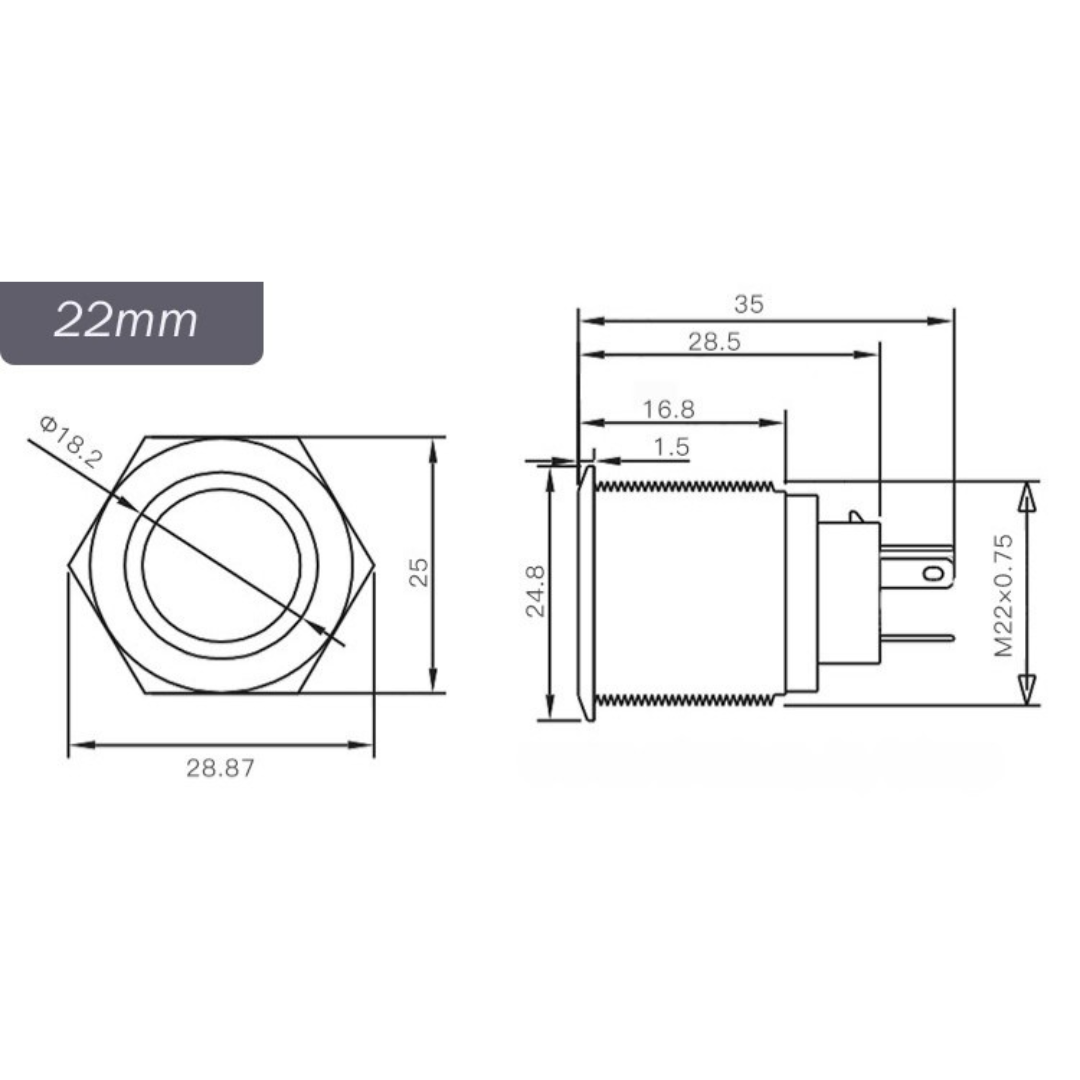

- Mounting Hole Diameter 22mm+.
- Tested for more than 30,000 presses.
- Stainless steel material for long period use.
- In-built round ring illuminated LED.
- Independent LED and Switch Terminals.
- Good Electrical Conductivity.
- Rubber ring and nut for fixing, Waterproof and dustproof.

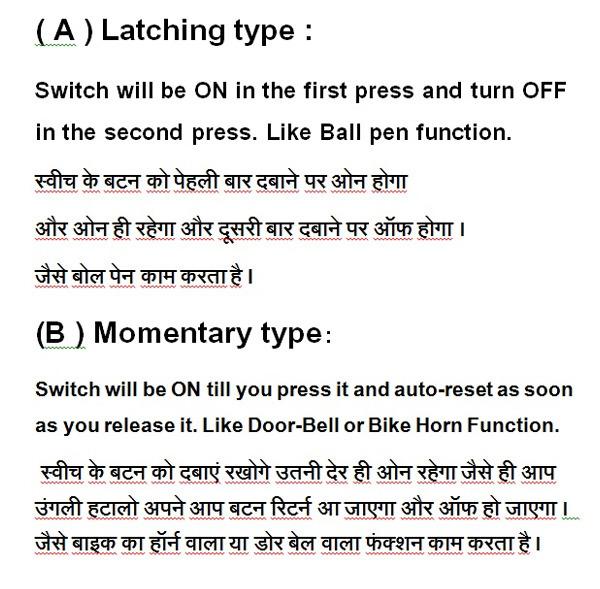

NOTE:- Momentary means Horn type switch which works as it will be in ON position till you press it and will auto-reset itself as soon as you release it.
Product Highlights
- 22mm panel-mount size
- Momentary Type operation
- Compatible with 12v DC circuits
- Green LED indication
- Stainless Steel body
- IP65 protection rating
Product Specifications
| Mounting size | 22mm |
| Voltage | 12v DC |
| Operation | Momentary Type |
| Colour | Green |
| Material | Stainless Steel |
| Pin count | 5 pin |
| IP rating | IP65 |
Product Datasheet
Download or view the detailed technical datasheet for this product below.
Product Specifications
| Mounting size | 22mm |
| Locking type ? | Momentary type |
| Material | Nickel with Lead Chrome |
| Waterproofing rating | IP65 |
| Operating Voltage | 12v DC (5v to 24v) |
| Loading capacity | 4.5 ampere |
| Pinout type | solder pin |
| Number of Pins | 5 |
| Pin type | LED +, LED -, COMMON, NO, NC |
| LED type | Single Color LED |
| Configuration | SPST (one input, & one output) |
| Package Contents | Pushbutton @ 1 nos |
| Datasheet | Download Datasheet |
Bulk Pricing (Excluding GST)
| Quantity | Discount | Unit Price (Excl. GST) |
|---|---|---|
| 10 nos | 5% | ₹ 200.47 |
| 20 nos | 7% | ₹ 196.25 |
| 50 nos | 10% | ₹ 189.92 |
| 100 nos | 12% | ₹ 185.69 |
| 250 nos | 15% | ₹ 179.36 |
| 500 nos | 18% | ₹ 173.03 |
| 1000 nos & more | 20% | ₹ 168.81 |
