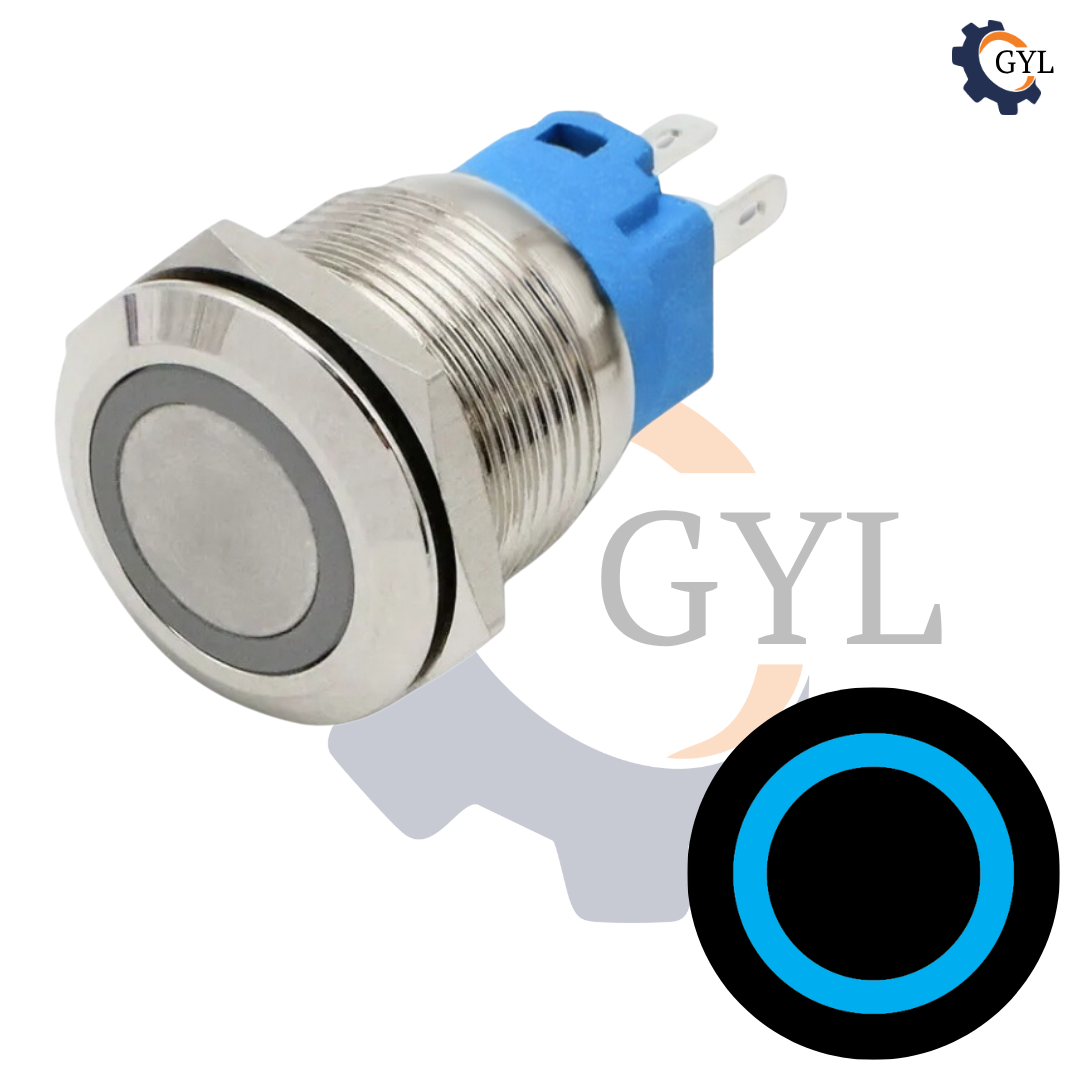

22mm Blue LED Stainless Steel Momentary Push Button Switch
22mm Blue LED Stainless Steel Momentary Push Button Switch
Estimated delivery time
Get fastest by
08 Jul 2026
Regular price
₹249.00
Regular price
Sale price
₹249.00
Unit price
per
(
₹
211.02
+ 18% GST Extra
)
Bulk Inquiry?
COD Available
UPI
Cards Accepted
Net Banking
Couldn't load pickup availability
100% Safe Payments
FREE Delivery
GST Billing
Quality Checked
Product Description
- 12v DC Power LED (4.5v to 24v).
- It is an IP65 rated product.
- 10 amp loading capacity.
- 5 pin = 1 -LED +,1 – LED -, 1 – COM, 1 – NO, 1 – NC.
- High Quality Stainless Steel Material.
- 3 month replacement Guarantee.
- Mounting Hole Diameter 22mm+.
- Tested for more than 30,000 presses.
- Stainless steel material for long period use.
- In-built round ring illuminated LED.
- Independent LED and Switch Terminals.
- Good Electrical Conductivity.
- Rubber ring and nut for fixing, Waterproof and dustproof.
NOTE:- Momentary means Horn type switch which works as it will be in ON position till you press it and will auto-reset itself as soon as you release it.
Product Highlights
- 22mm panel-mount size
- Momentary Type operation
- Compatible with 12v DC circuits
- Blue LED indication
- Stainless Steel body
- IP65 protection rating
Product Specifications
| Mounting size | 22mm |
| Voltage | 12v DC |
| Operation | Momentary Type |
| Colour | Blue |
| Material | Stainless Steel |
| Pin count | 5 pin |
| IP rating | IP65 |
Product Datasheet
Download or view the detailed technical datasheet for this product below.
Product Specifications
| Mounting size | 22mm |
| Locking type ? | Momentary type |
| Material | Nickel with Lead Chrome |
| Waterproofing rating | IP65 |
| Operating Voltage | 12v DC (5v to 24v) |
| Loading capacity | 4.5 ampere |
| Pinout type | solder pin |
| Number of Pins | 5 |
| Pin type | LED +, LED -, COMMON, NO, NC |
| LED type | Single Color LED |
| Configuration | SPST (one input, & one output) |
| Package Contents | Pushbutton @ 1 nos |
| Datasheet | Download Datasheet |
