Product selection
Check fit, use, power and included items
Use the product title, selected variant, description and specifications together. Do not rely on a single image or headline feature.
Before ordering
Confirm the essential selection details
The information below is a checking sequence. Use the selected variant and populated product specifications for the exact values.
Intended use
Confirm that the product description matches the task or application.
Size and placement
Check dimensions, mounting, clearances or capacity where those details are provided.
Power and controls
Verify voltage, power source, controls and compatibility with the intended setup.
Included items and upkeep
Review package contents, consumables, replacement parts and maintenance information where stated.
Variant clarity
Compare the available product options
Price, SKU and availability are shown for each current Shopify variant. Select the required option in the purchase area before adding it to the cart.
Default Title
- Price
- ₹399.00
- SKU
- 2243
- Status
- Available
Technical information
Product specifications
These values come from the populated product specification data. Check whether a value applies to the whole product or to a selected variant.
Product typePanel Indicator Light
Panel cutout22mm
Panel thickness2-7mm
Number of polesSingle Pole
IlluminationLED
LED colourRed
Illumination voltage5–24V DC
Voltage range5–24V DC
Head profileFlat
Actuator shapeRound
Body materialNickel-plated brass
Ingress protectionIP65
Impact resistanceIK08
Terminal typeSolder lugs
Mechanical life1,000,000 cycles
Electrical life500,000 cycles
Operating temperature-25°C to +55°C
Need confirmation?
Ask before ordering when compatibility is uncertain
Share the intended application, required quantity and any relevant voltage, dimensions or connection details. Support can then confirm what the available product information supports.
Product Description

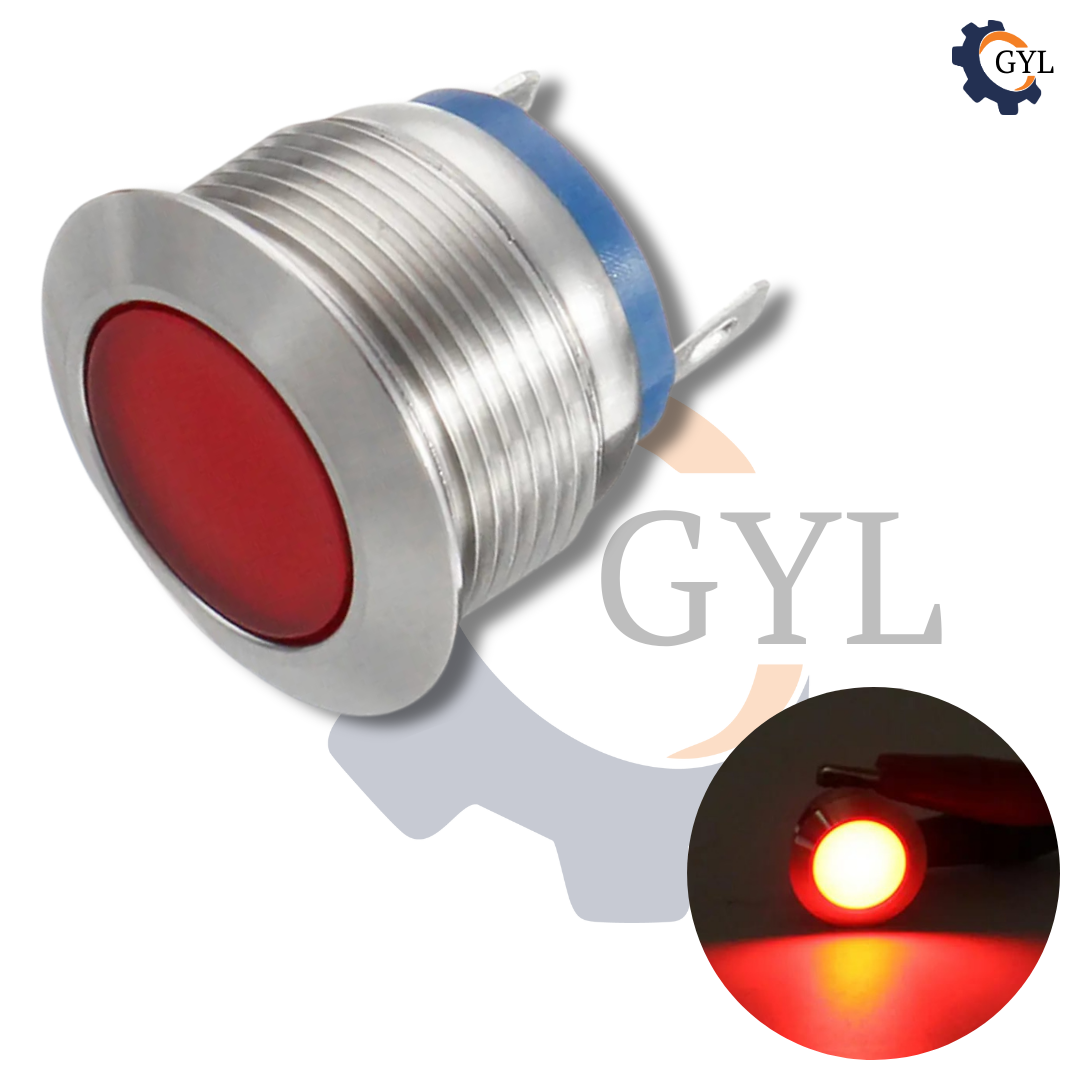

This 22mm LED indicator light provides a clear visual status signal in panel-mounted equipment. Confirmed specifications include Red LED illumination for 5–24V DC, a nickel-plated brass body, IP65 / IK08 protection and solder lugs termination. The documented operating data includes mechanical life of 1,000,000 cycles, electrical life of 500,000 cycles and an operating temperature range of -25°C to +55°C.
Product specifications
- Product type: Panel Indicator Light

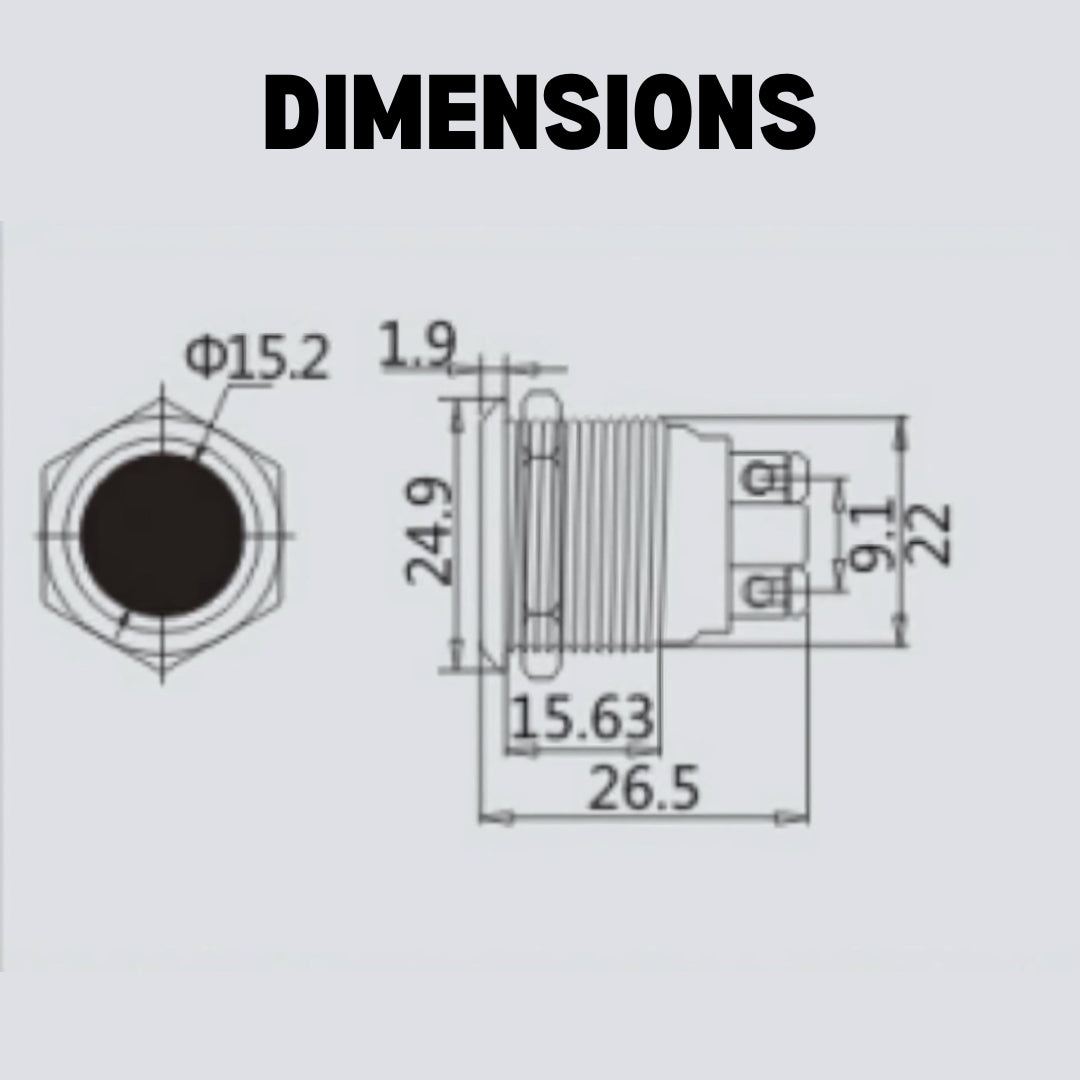

- Panel cutout: 22mm
- Panel thickness: 2-7mm
- Number of poles: Single Pole
- Illumination: LED

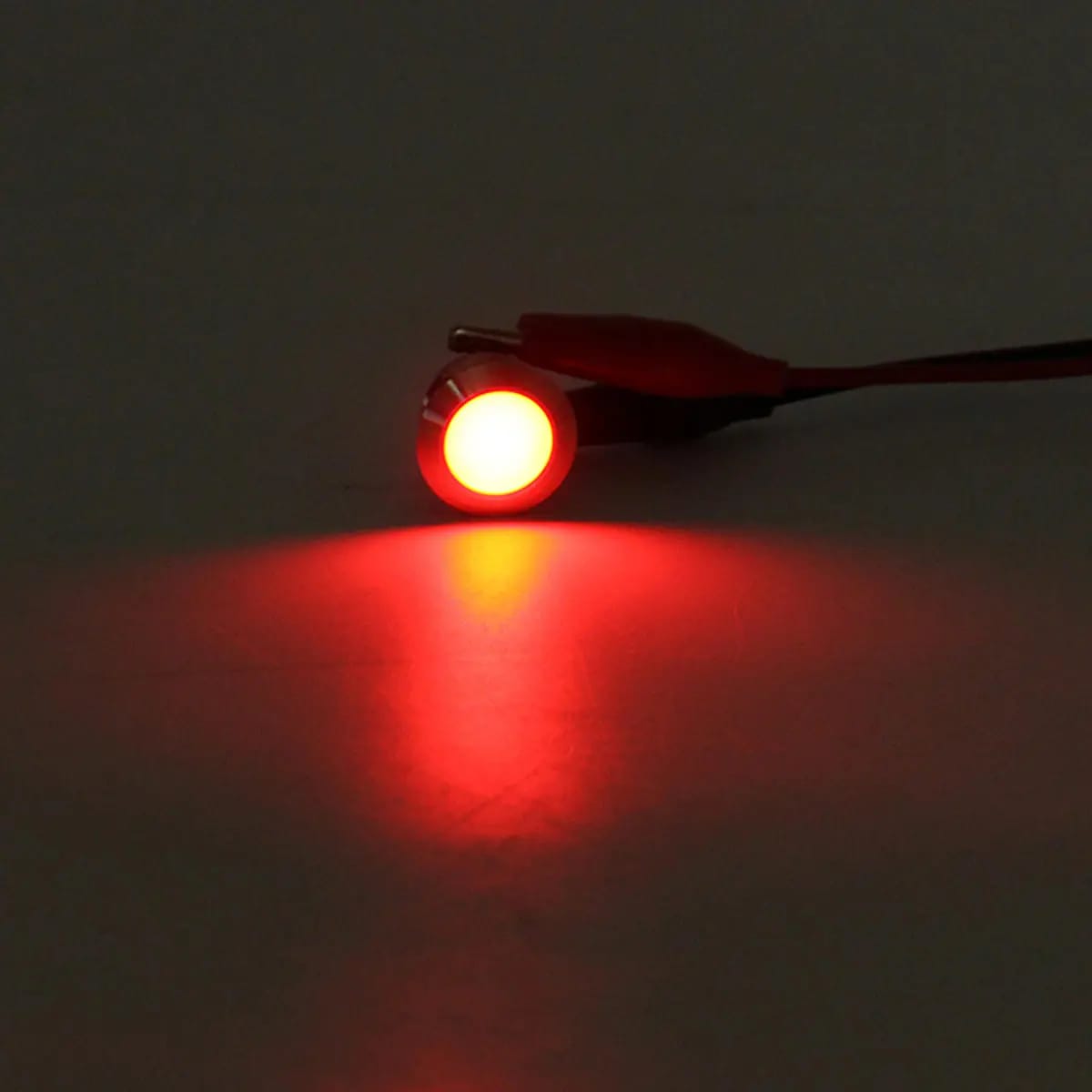

- LED colour: Red
- Illumination voltage: 5–24V DC
- Voltage range: 5–24V DC
- Head profile: Flat
- Actuator shape: Round
- Body material: Nickel-plated brass

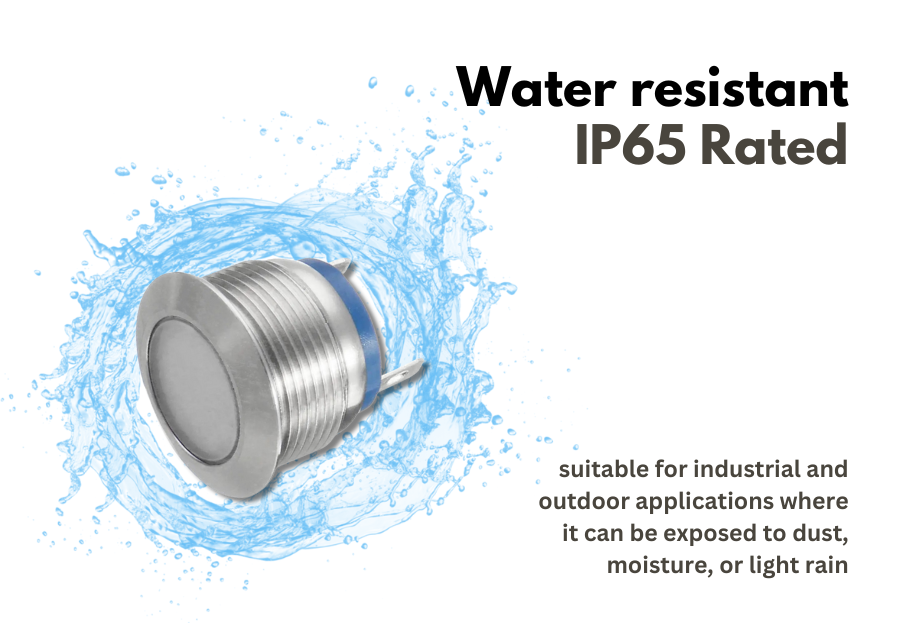

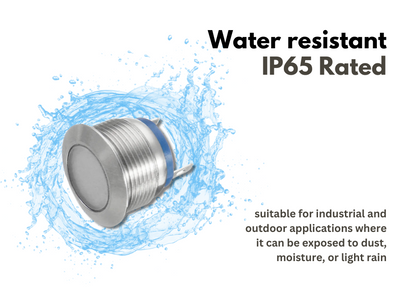

- Ingress protection: IP65
- Impact resistance: IK08
- Terminal type: Solder lugs
- Mechanical life: 1,000,000 cycles
- Electrical life: 500,000 cycles
- Operating temperature: -25°C to +55°C
Product Specifications
| Product type | Panel Indicator Light |
| Panel cutout | 22mm |
| Panel thickness | 2-7mm |
| Number of poles | Single Pole |
| Illumination | LED |
| LED colour | Red |
| Illumination voltage | 5–24V DC |
| Voltage range | 5–24V DC |
| Head profile | Flat |
| Actuator shape | Round |
| Body material | Nickel-plated brass |
| Ingress protection | IP65 |
| Impact resistance | IK08 |
| Terminal type | Solder lugs |
| Mechanical life | 1,000,000 cycles |
| Electrical life | 500,000 cycles |
| Operating temperature | -25°C to +55°C |
Bulk Pricing (Excluding GST)
| Quantity | Discount | Unit Price (Excl. GST) |
|---|---|---|
| 10 nos | 5% | ₹ 321.23 |
| 20 nos | 7% | ₹ 314.47 |
| 50 nos | 10% | ₹ 304.32 |
| 100 nos | 12% | ₹ 297.56 |
| 250 nos | 15% | ₹ 287.42 |
| 500 nos | 18% | ₹ 277.27 |
| 1000 nos & more | 20% | ₹ 270.51 |
Questions buyers ask before ordering
Frequently Asked Questions
Open a question to see the answer.
It provides visual status indication on control panels, machines, enclosures and other electrical systems when wired to the correct supply.
Use a 22mm panel cutout, based on the product title.
Use the listed 12V DC supply only and do not connect the indicator to a different voltage without confirming compatibility.
No switching function is claimed for this product; it is a visual panel indicator unless the product specifications explicitly state otherwise.
Yes, especially for mains-voltage products or unfamiliar control circuits. Isolate power and have a qualified technician verify the wiring and application.
