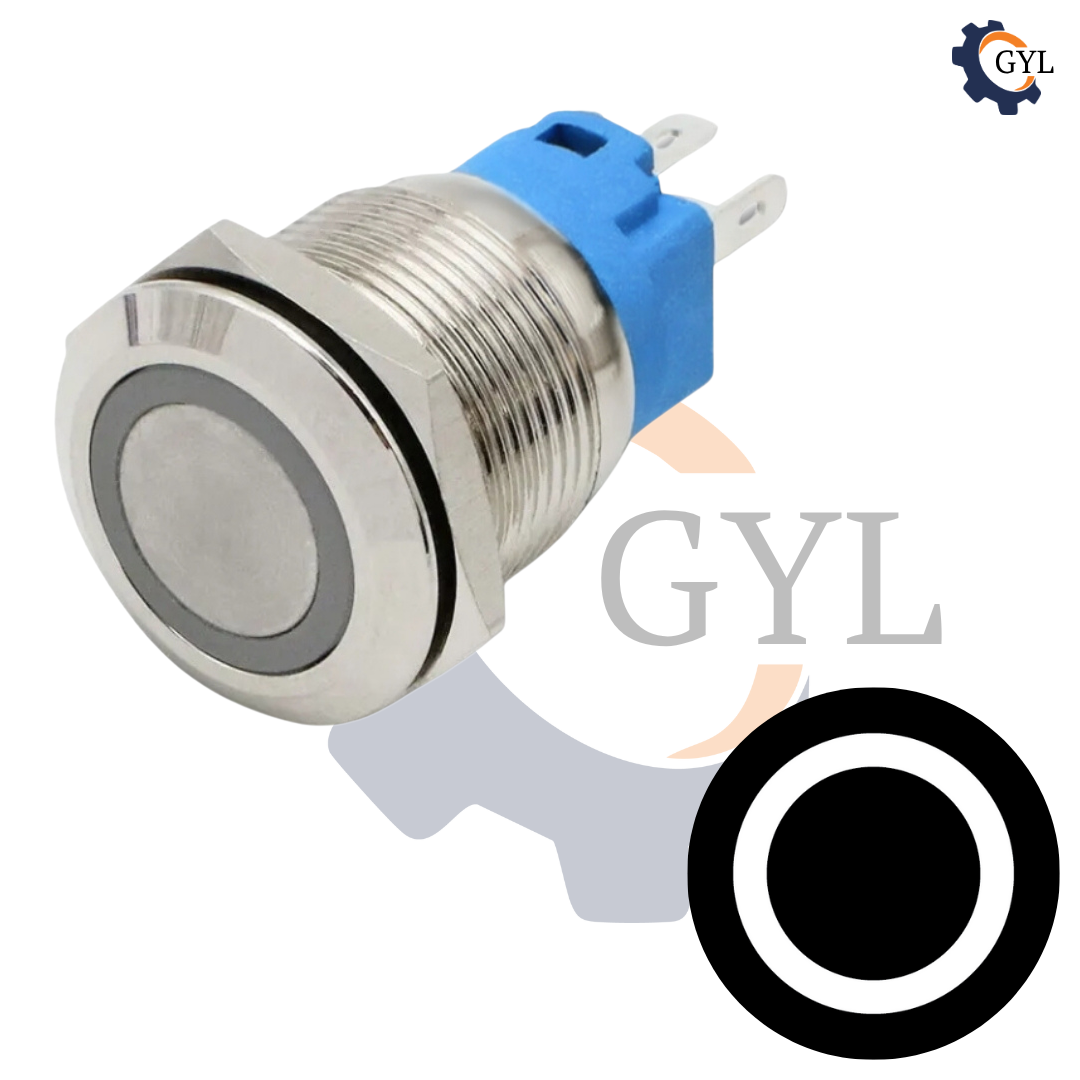

19mm White LED Stainless Steel Latching Push Button Switch 5–24V DC

• 12v DC Power LED (4.5v to 24v).
• It is an IP65 rated product.
• 7.5 amp loading capacity.
• 5 pin = 1 -LED +,1 – LED -, 1 – COM, 1 – NO, 1 – NC.
• High Quality Stainless Steel Material.
• 3 month replacement Guarantee.
• Mounting Hole Diameter 19mm+.
• Tested for more than 30,000 presses.
• Stainless steel material for long period use.
• In-built round ring illuminated LED.
• Independent LED and Switch Terminals.
• Good Electrical Conductivity.
• Rubber ring and nut for fixing, Waterproof and dustproof.

NOTE:- Latching ON/OFF Type Switch will works as it will be ON on the first press and OFF on the second press.

Product Highlights

• 19mm panel-mount size
• Latching Type operation
• Compatible with 12v DC circuits
• White LED indication
• Stainless Steel body
• IP65 protection rating
