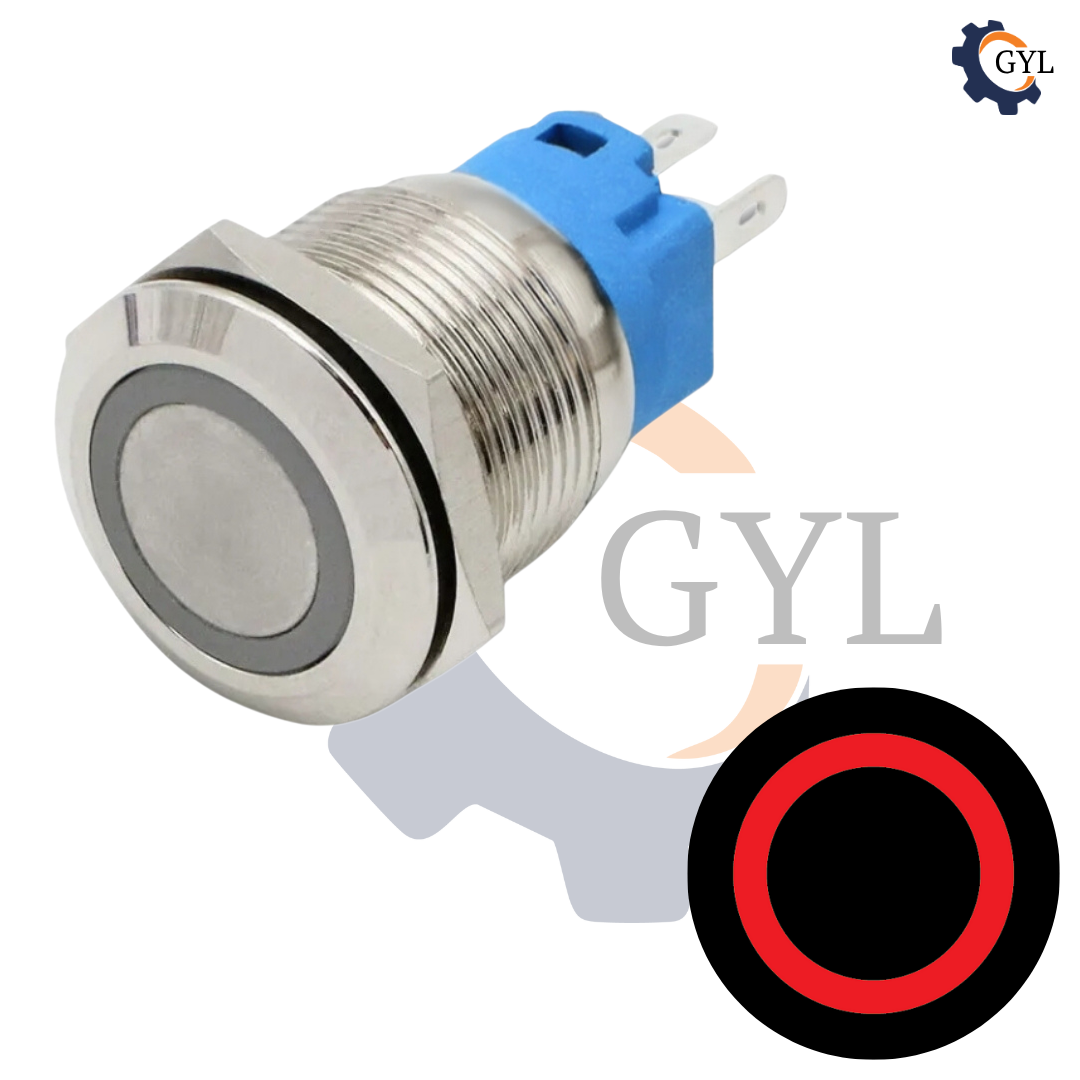

19mm Size RED Led S.S. Latching Type Push Button Switch 5v-24v DC
19mm Size RED Led S.S. Latching Type Push Button Switch 5v-24v DC
Regular price
Rs. 329.00
Regular price
Sale price
Rs. 329.00
Unit price
per
Shipping calculated at checkout.
(Price are inclusive of 18% GST)
Bulk Inquiry?
COD Available
UPI
Cards Accepted
Net Banking
Couldn't load pickup availability
Replacement guarantee
Express Delivery
GST Billing
Quality Checked
Product Specifications
| Mounting size | 19mm |
| Locking type ? | Latching type |
| Material | Nickel with Lead Chrome |
| Waterproofing rating | IP65 |
| Operating Voltage | 12v DC (4.5v to 24v) |
| Loading capacity | 4.5 ampere |
| Pinout type | solder pin |
| Number of Pins | 5 |
| Pin type | LED +, LED -, COMMON, NO, NC |
| LED type | Single Color LED |
| Configuration | SPST (one input, & one output) |
| Package Contents | Pushbutton @ 1 nos |
Product Description
- 12v DC Power LED (4.5v to 24v).
- It is an IP65 rated product.
- 7.5 amp loading capacity.
- 5 pin = 1 -LED +,1 – LED -, 1 – COM, 1 – NO, 1 – NC.
- High Quality Stainless Steel Material.
- Yanwev Pvt. Ltd. Product By South Korea.
- 3 month replacement Guarantee.
- Mounting Hole Diameter 19mm+.
- Tested for more than 30,000 presses.
- Stainless steel material for long period use.
- In-built round ring illuminated LED.
- Independent LED and Switch Terminals.
- Good Electrical Conductivity.
- Rubber ring and nut for fixing, Waterproof and dustproof.
NOTE :- Latching ON/OFF Type Switch will works as it will be ON on the first press and OFF on the second press.
