19mm Red + Green LED Stainless Steel Latching Push Button Switch 220V AC
19mm Red + Green LED Stainless Steel Latching Push Button Switch 220V AC
Regular price
₹329.00
Regular price
Sale price
₹329.00
Unit price
per
(
₹
278.81
+ 18% GST Extra
)
Estimated delivery time
Get fastest by
08 Jul 2026
Bulk Inquiry?
COD Available
UPI
Cards Accepted
Net Banking
Couldn't load pickup availability
100% Safe Payments
FREE Delivery
GST Billing
COD Available
Product Specifications
| Mounting size | 19mm |
| Locking type ? | Latching type |
| Material | Nickel with Lead Chrome |
| Waterproofing rating | IP65 |
| Operating Voltage | 220v AC (210v to 240v) |
| Loading capacity | 4.5 ampere |
| Pinout type | solder pin |
| Number of Pins | 5 |
| Pin type | LED +, LED -, COMMON, NO, NC |
| LED type | Single Color LED |
| Configuration | SPST (one input, & one output) |
| Package Contents | Pushbutton @ 1 nos |
Product Description
- 230v AC Power LED (220v to 240v).

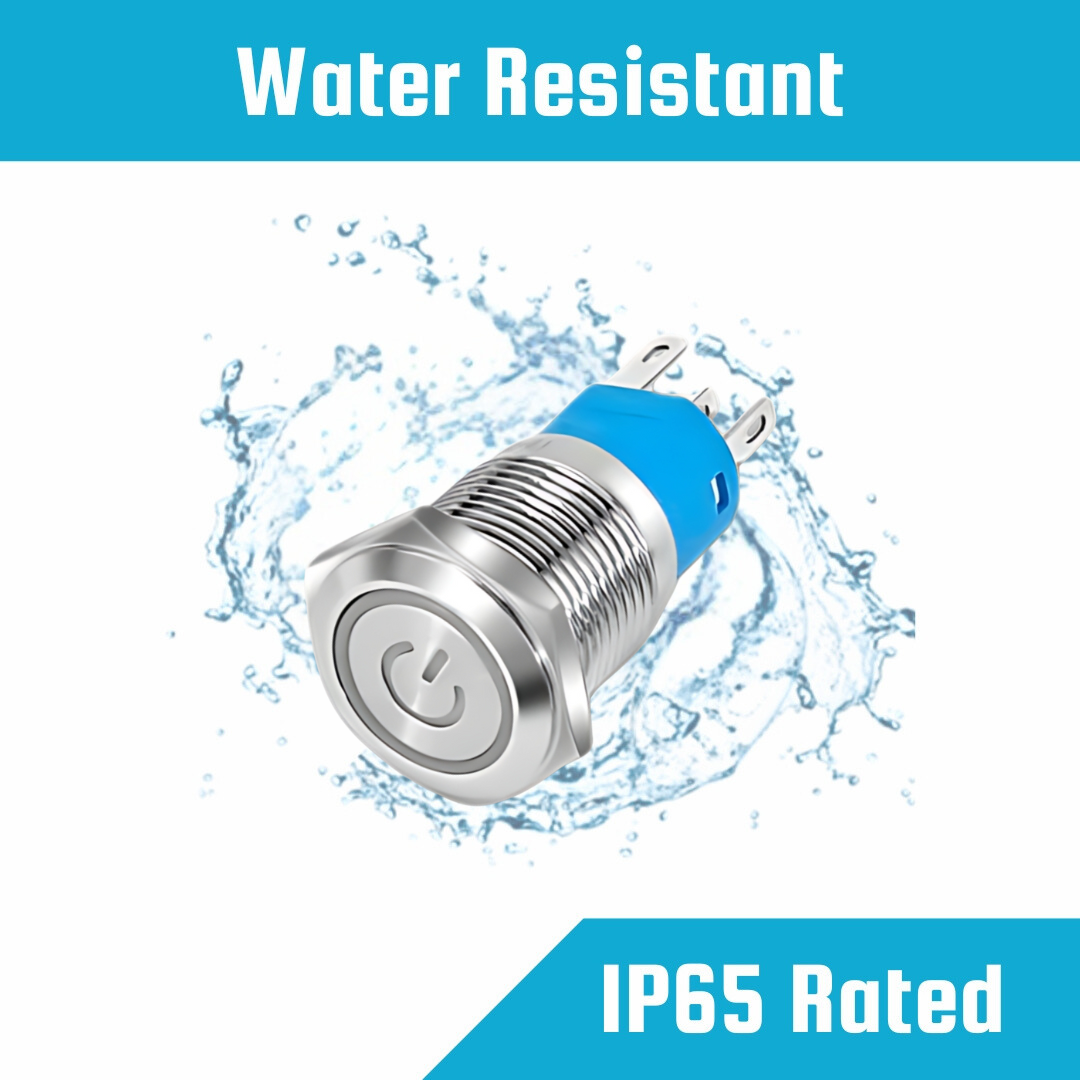

- It is an IP65 rated product.
- 7.5 amp loading capacity.
- 6 pin = 2 -LED +,1 – LED -, 1 – COM, 1 – NO, 1 – NC.
- High Quality Stainless Steel Material.
- 3 month replacement Guarantee.

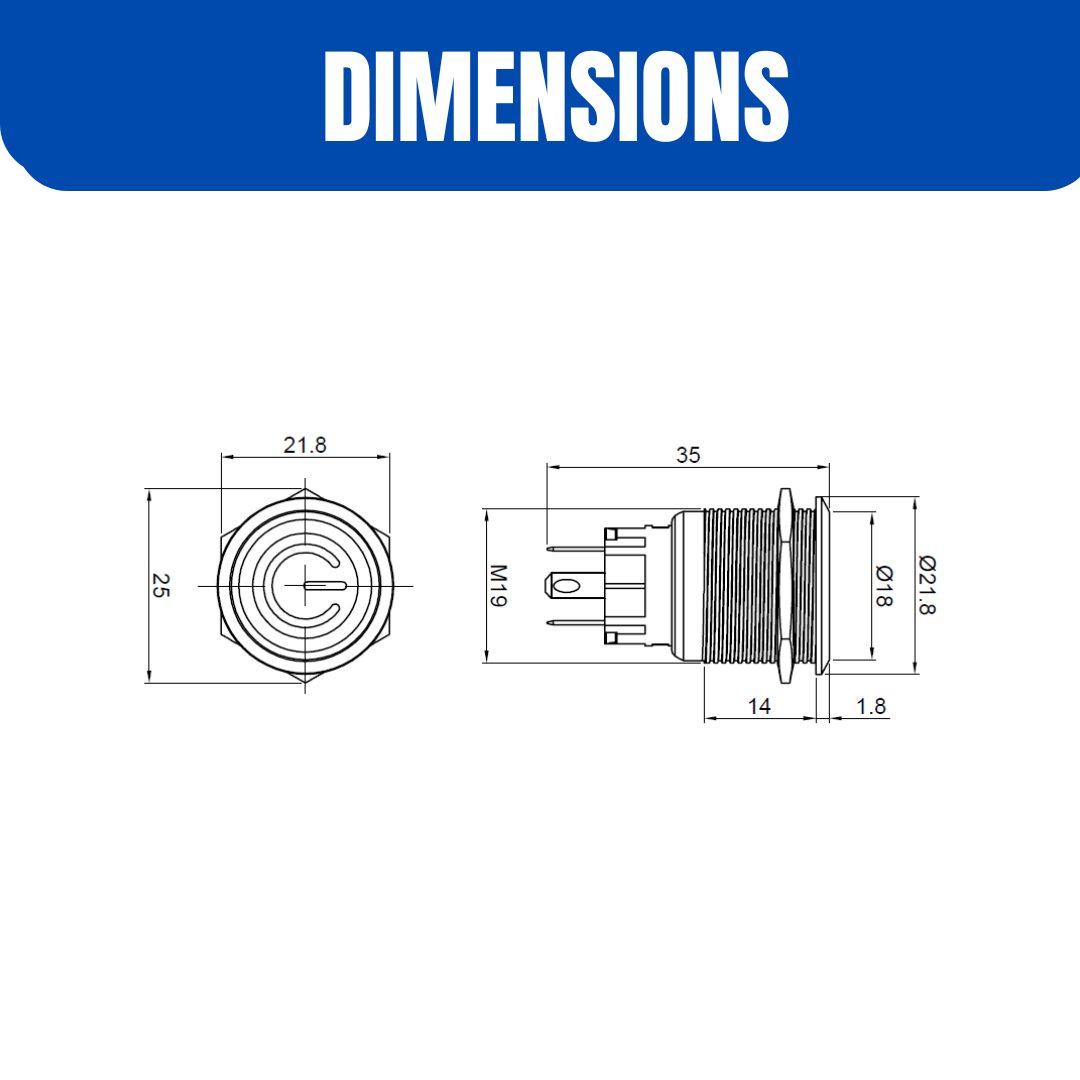

- Mounting Hole Diameter 19mm+.
- Tested for more than 30,000 presses.
- Stainless steel material for long period use.

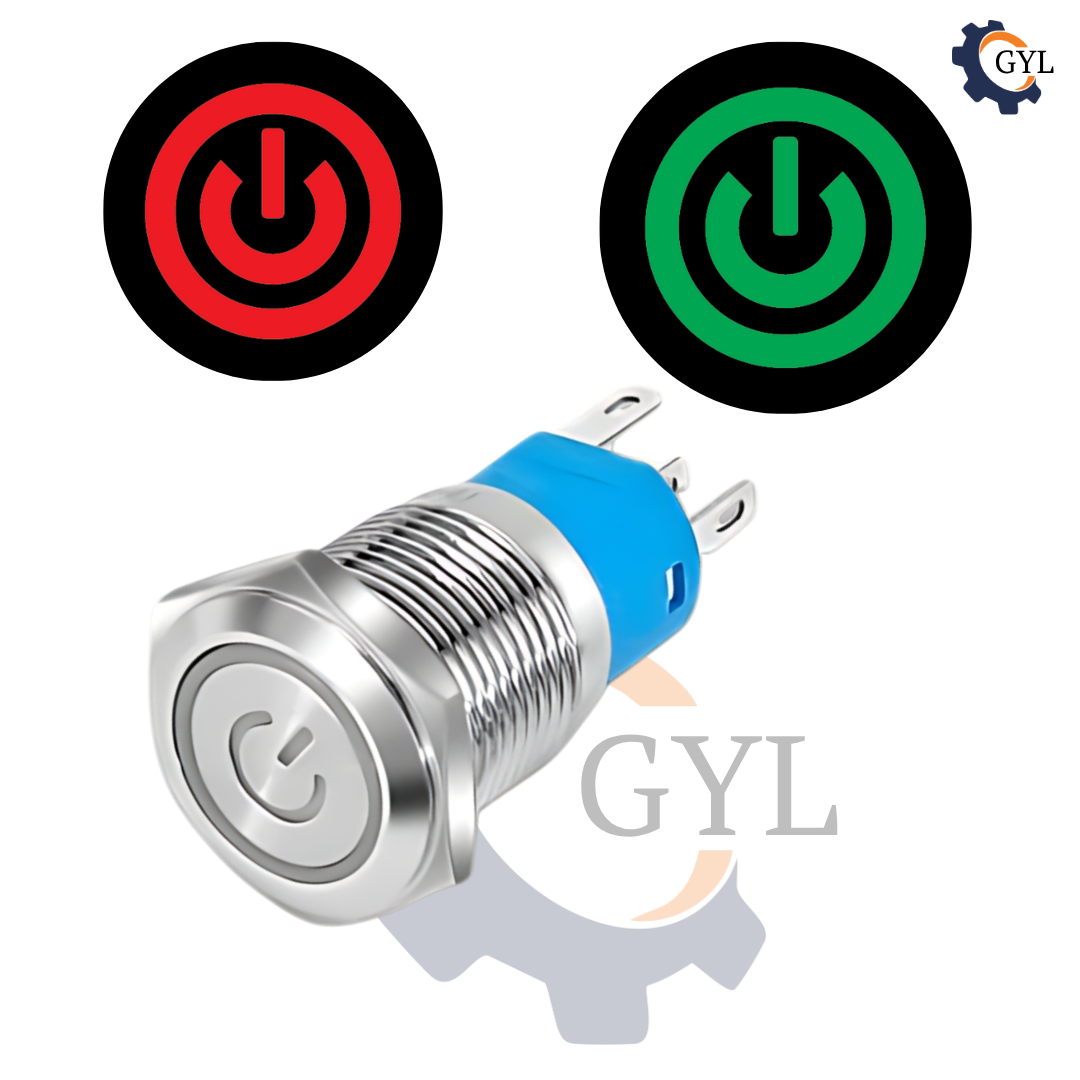

- In-built round ring illuminated Red & Green LED.
- Independent LED and Switch Terminals.
- Good Electrical Conductivity.
- Rubber ring and nut for fixing, Waterproof and dustproof.
NOTE:- Latching ON/OFF Type Switch will works as it will be ON on the first press and OFF on the second press.
Product Highlights
- 19mm panel-mount size
- Latching operation
- Compatible with 220v AC circuits
- Multicolor; Blue LED indication
- Stainless Steel body
- IP65 protection rating
Product Specifications
| Mounting size | 19mm |
| Voltage | 220v AC |
| Operation | Latching |
| Colour | Multicolor; Blue |
| Material | Stainless Steel |
| Pin count | 6 pin |
| IP rating | IP65 |
