Secure checkout
Available payment options are shown during checkout before the order is completed.
Purchase confidence
Clear information before you order
Review the selected option, delivery information and support routes at the point where they are useful.
Delivery information
Delivery timing depends on the address, order processing and applicable holidays.
GST pricing
Pricing and the applicable GST breakdown are presented with the product purchase controls.
Selection support
Use WhatsApp or the enquiry route when compatibility, quantity or application details need confirmation.
Product selection
Check fit, use, power and included items
Use the product title, selected variant, description and specifications together. Do not rely on a single image or headline feature.
Before ordering
Confirm the essential selection details
The information below is a checking sequence. Use the selected variant and populated product specifications for the exact values.
Intended use
Confirm that the product description matches the task or application.
Size and placement
Check dimensions, mounting, clearances or capacity where those details are provided.
Power and controls
Verify voltage, power source, controls and compatibility with the intended setup.
Included items and upkeep
Review package contents, consumables, replacement parts and maintenance information where stated.
Variant clarity
Compare the available product options
Price, SKU and availability are shown for each current Shopify variant. Select the required option in the purchase area before adding it to the cart.
Default Title
- Price
- ₹699.00
- SKU
- 2008
- Status
- Sold out
Technical information
Product specifications
These values come from the populated product specification data. Check whether a value applies to the whole product or to a selected variant.
Product typeEmergency Stop Pushbutton
Panel cutout19mm
Panel thickness2-7mm
OperationLatching, key-reset
Contact configuration1NO + 1NC
Number of polesSingle Pole
Contact operationNormally Open
Voltage range210–250V AC
Head profileFlat
Actuator shapeRound
Face markingArrow
Body materialNickel-plated brass
Ingress protectionIP65
Impact resistanceIK08
Terminal type3-pin terminal
Mechanical life1,000,000 cycles
Electrical life500,000 cycles
Operating temperature-25°C to +55°C
Need confirmation?
Ask before ordering when compatibility is uncertain
Share the intended application, required quantity and any relevant voltage, dimensions or connection details. Support can then confirm what the available product information supports.
Product Description

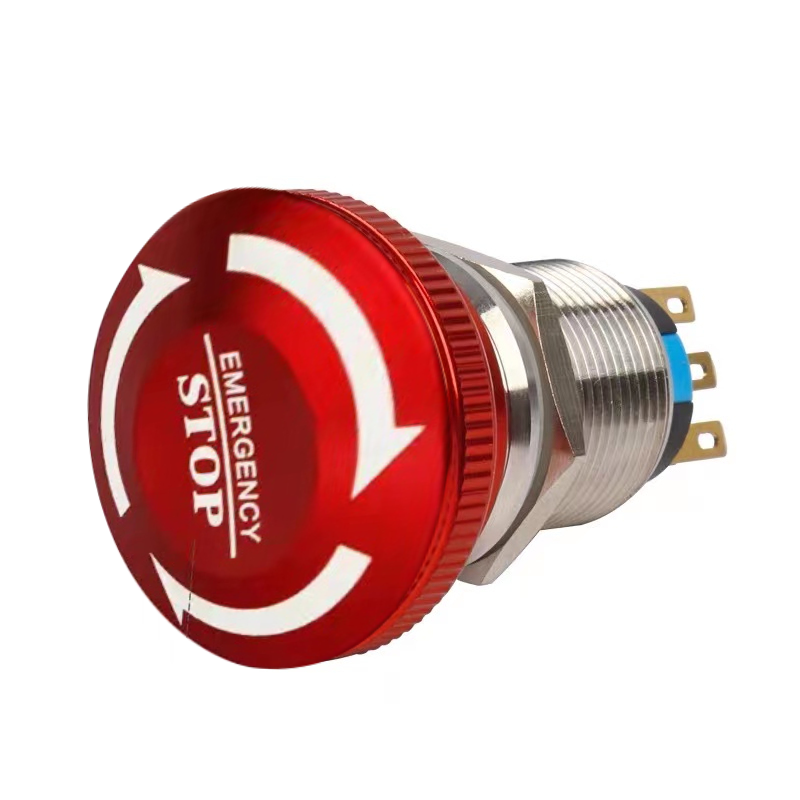

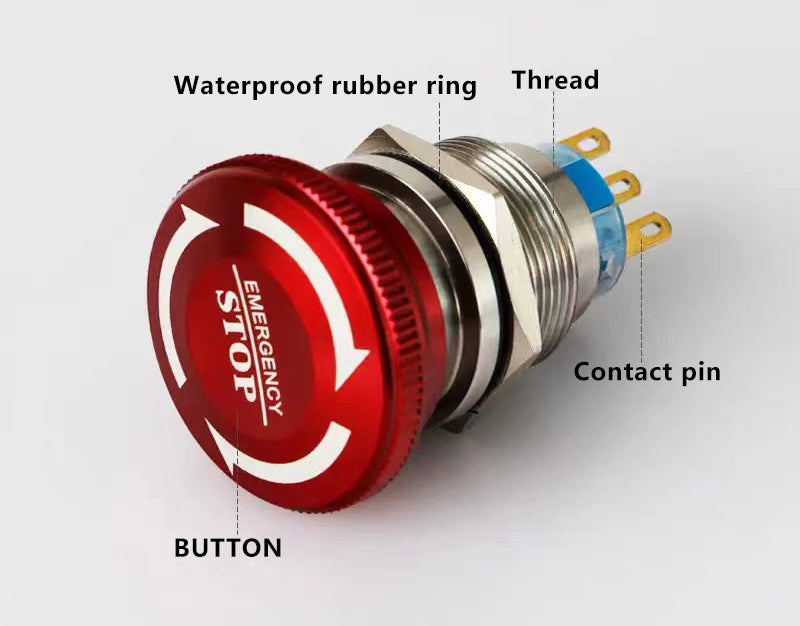

This 19mm emergency stop push button uses a latching action with key-release reset for panel-mounted control systems. Confirmed specifications include 1NO + 1NC contacts, a nickel-plated brass body, IP65 / IK08 protection and 3-pin terminal termination. The documented operating data includes mechanical life of 1,000,000 cycles, electrical life of 500,000 cycles and an operating temperature range of -25°C to +55°C.
Product specifications
- Product type: Emergency Stop Pushbutton
- Panel cutout: 19mm
- Panel thickness: 2-7mm
- Operation: Latching, key-reset
- Contact configuration: 1NO + 1NC
- Number of poles: Single Pole
- Contact operation: Normally Open
- Voltage range: 210–250V AC
- Head profile: Flat
- Actuator shape: Round
- Face marking: Arrow
- Body material: Nickel-plated brass
- Ingress protection: IP65
- Impact resistance: IK08
- Terminal type: 3-pin terminal
- Mechanical life: 1,000,000 cycles
- Electrical life: 500,000 cycles
- Operating temperature: -25°C to +55°C
Product Specifications
| Product type | Emergency Stop Pushbutton |
| Panel cutout | 19mm |
| Panel thickness | 2-7mm |
| Operation | Latching, key-reset |
| Contact configuration | 1NO + 1NC |
| Number of poles | Single Pole |
| Contact operation | Normally Open |
| Voltage range | 210–250V AC |
| Head profile | Flat |
| Actuator shape | Round |
| Face marking | Arrow |
| Body material | Nickel-plated brass |
| Ingress protection | IP65 |
| Impact resistance | IK08 |
| Terminal type | 3-pin terminal |
| Mechanical life | 1,000,000 cycles |
| Electrical life | 500,000 cycles |
| Operating temperature | -25°C to +55°C |
Bulk Pricing (Excluding GST)
| Quantity | Discount | Unit Price (Excl. GST) |
|---|---|---|
| 10 nos | 5% | ₹ 562.75 |
| 20 nos | 7% | ₹ 550.91 |
| 50 nos | 10% | ₹ 533.14 |
| 100 nos | 12% | ₹ 521.29 |
| 250 nos | 15% | ₹ 503.52 |
| 500 nos | 18% | ₹ 485.75 |
| 1000 nos & more | 20% | ₹ 473.9 |
Questions buyers ask before ordering
Frequently Asked Questions
Open a question to see the answer.
It is intended as a panel-mounted operator control in a suitably designed electrical or machine-control system.
Use a 19mm mounting hole, based on the product title.
No. The complete emergency-stop function must be designed, validated and maintained for the machine and applicable requirements.
Verify the contact arrangement, terminal identification, electrical rating and control-circuit design against the product specifications before connection.
Yes. Emergency-stop circuits should be designed and installed by appropriately qualified personnel, with power isolated during wiring.
