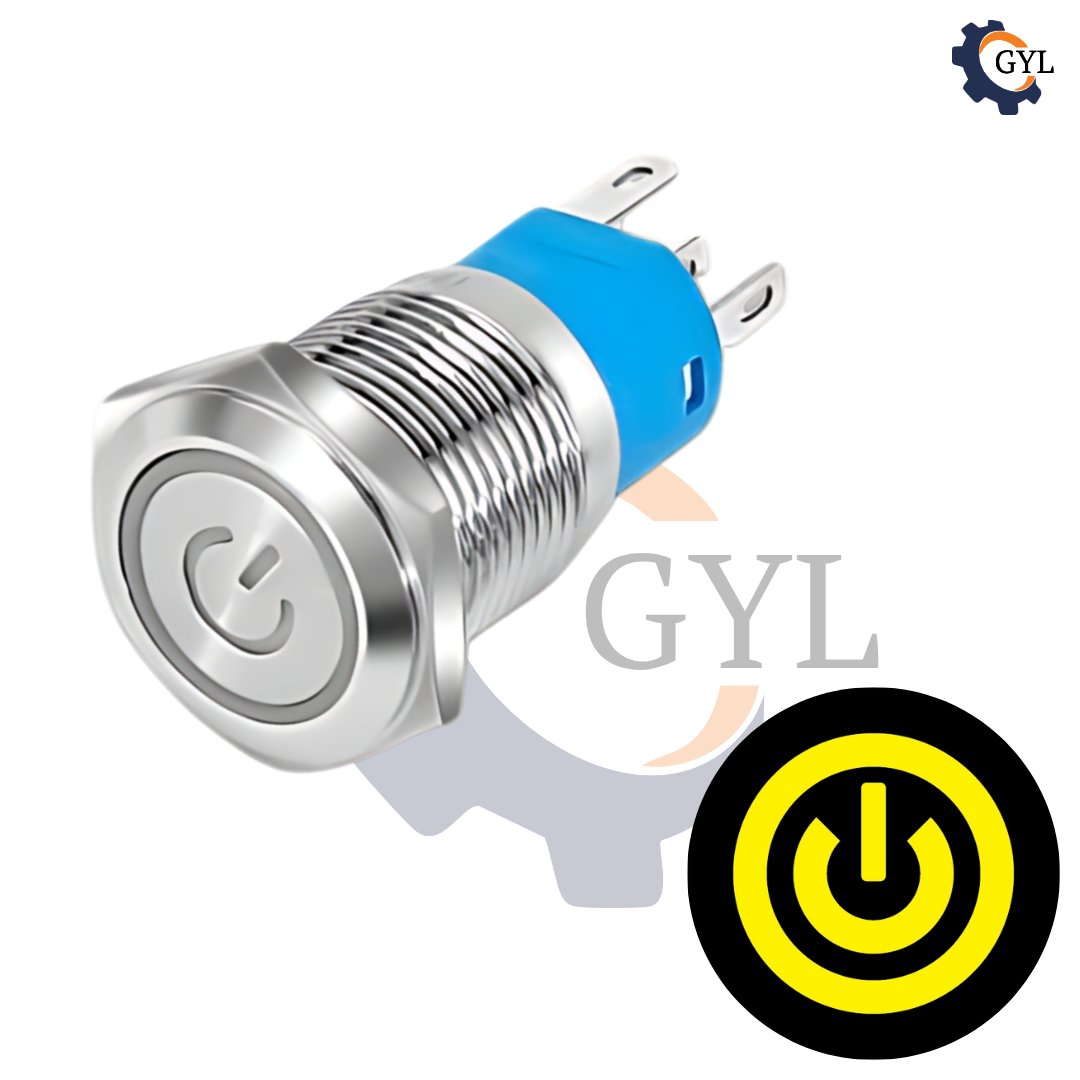

16mm Size 5-24V DC Yellow Power symbol Led S.S. Latching Type Pushbutton

• 12V DC Power LED (5V DC to 24V DC).

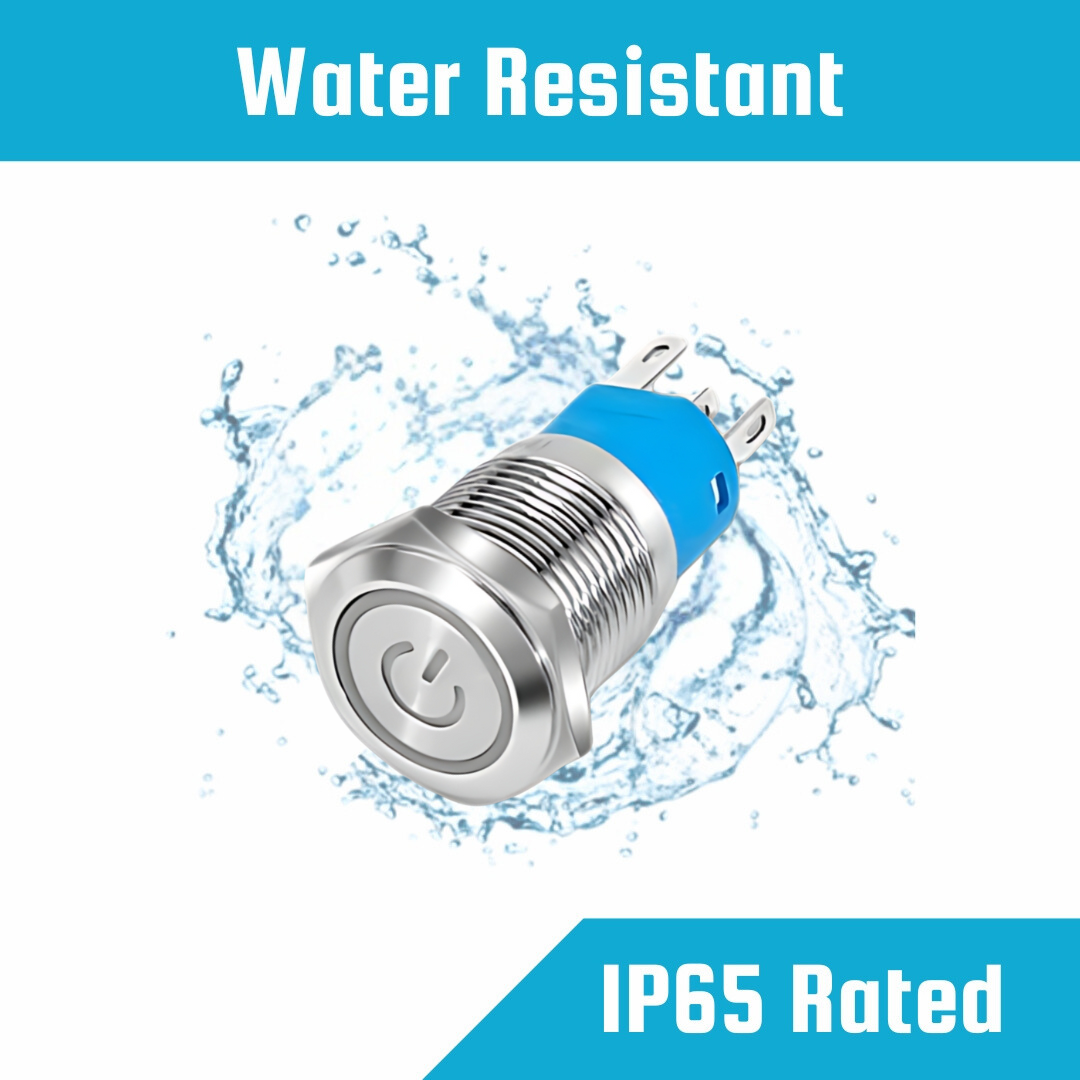

• It is an IP65 rated product.
• 4.5 amp loading capacity.

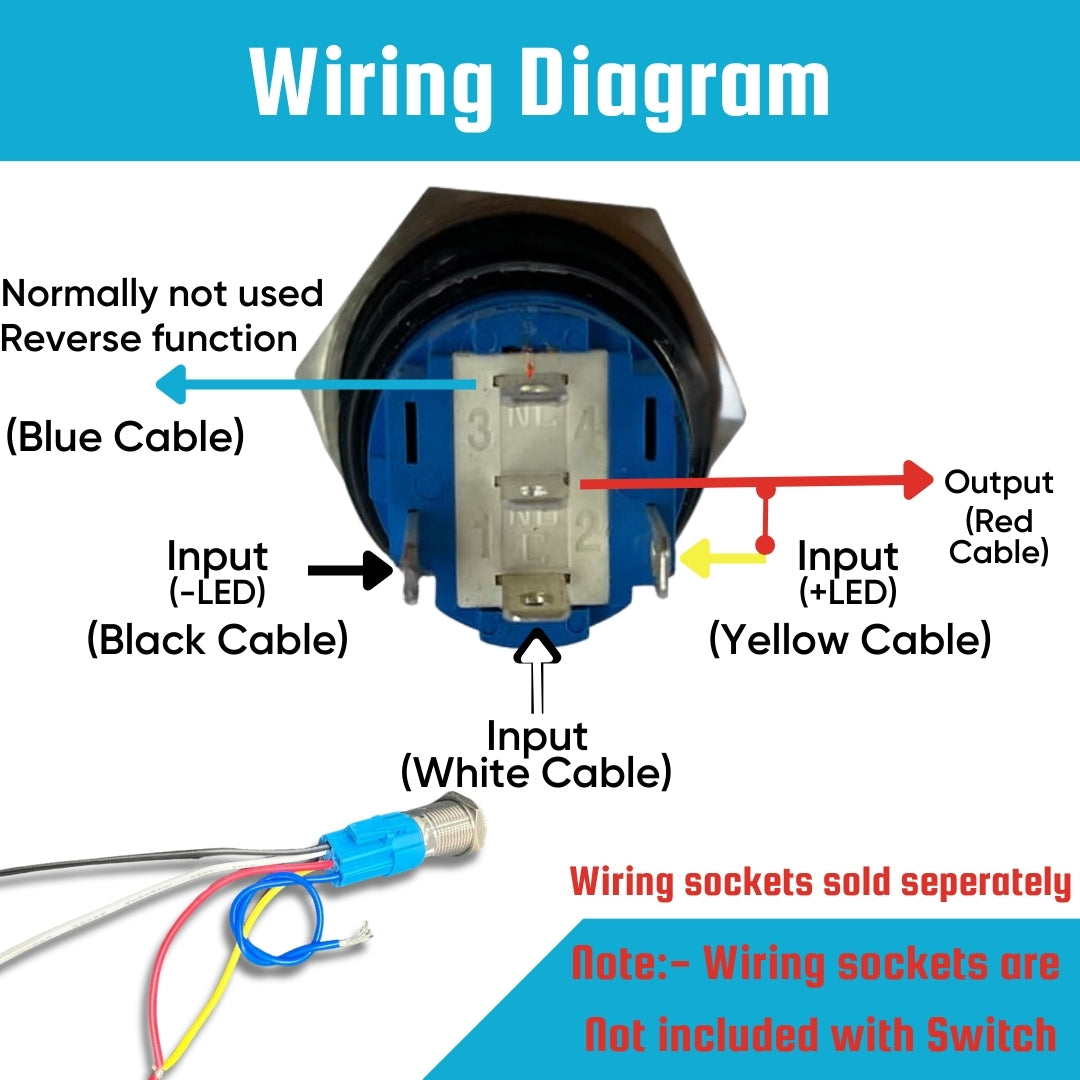

• 5 pin = 1 -LED +,1 – LED -, 1 – COM, 1 – NO, 1 – NC.
• High Quality Stainless Steel Material.
• Yanwev Pvt. Ltd. Product By South Korea.
• 3 month replacement Guarantee.

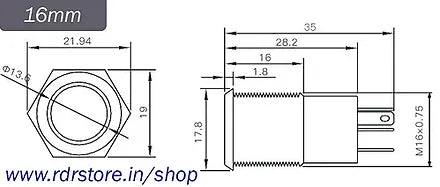

• Mounting Hole Diameter 16mm+.
• Tested for more than 30,000 presses.
• Stainless steel material for long period use.
• In-built round ring illuminated LED.

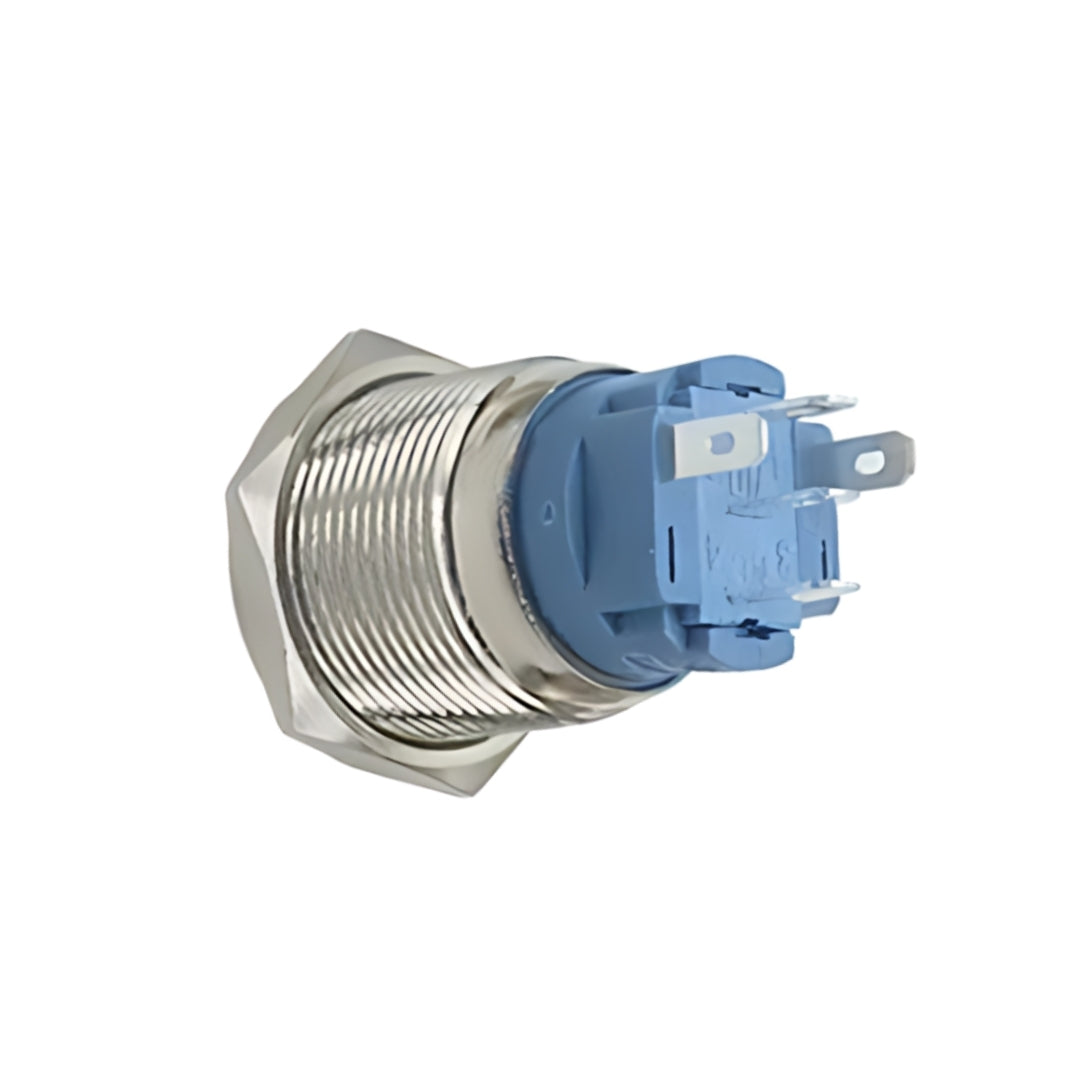

• Independent LED and Switch Terminals.
• Good Electrical Conductivity.
• Rubber ring and nut for fixing, Waterproof and dustproof.

NOTE :- Latching ON/OFF Type Switch will works as it will be ON on the first press and OFF on the second press.
