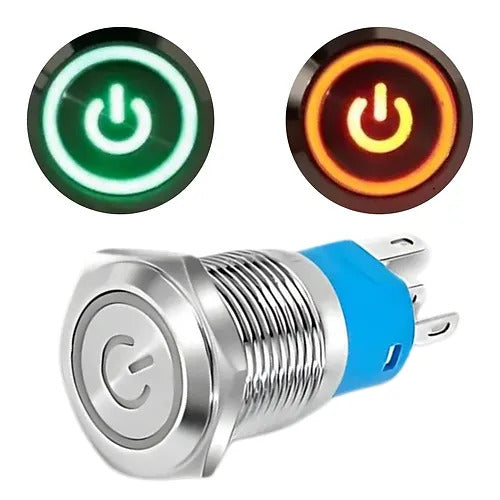

16mm Size 220V AC DC RED & GREEN Power symbol DUAL Led S.S. Latching Type
16mm Size 220V AC DC RED & GREEN Power symbol DUAL Led S.S. Latching Type
Regular price
Rs. 285.00
Regular price
Sale price
Rs. 285.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
(Price are inclusive of 18% GST)
Bulk Inquiry?
COD Available
UPI
Cards Accepted
Net Banking
Couldn't load pickup availability
Chat
Replacement guarantee
Express Delivery
GST Billing
Quality Checked
Product Specifications
| Mounting size | 16mm |
| Locking type ? | Latching type |
| Material | Nickel with Lead Chrome |
| Waterproofing rating | IP65 |
| Operating Voltage | 220v AC (210v to 240v AC) |
| Loading capacity | 4.5 ampere |
| Pinout type | solder pin |
| Number of Pins | 5 |
| Pin type | 3 LED pins, COMMON, NO, NC |
| LED type | Two LED colors |
| Configuration | SPST (one input, & one output) |
| Package Contents | Pushbutton + plastic ring + nut |
| Datasheet | Download Datasheet |
Product Description
-
- 220v AC Power LED (210v AC to 240v AC).

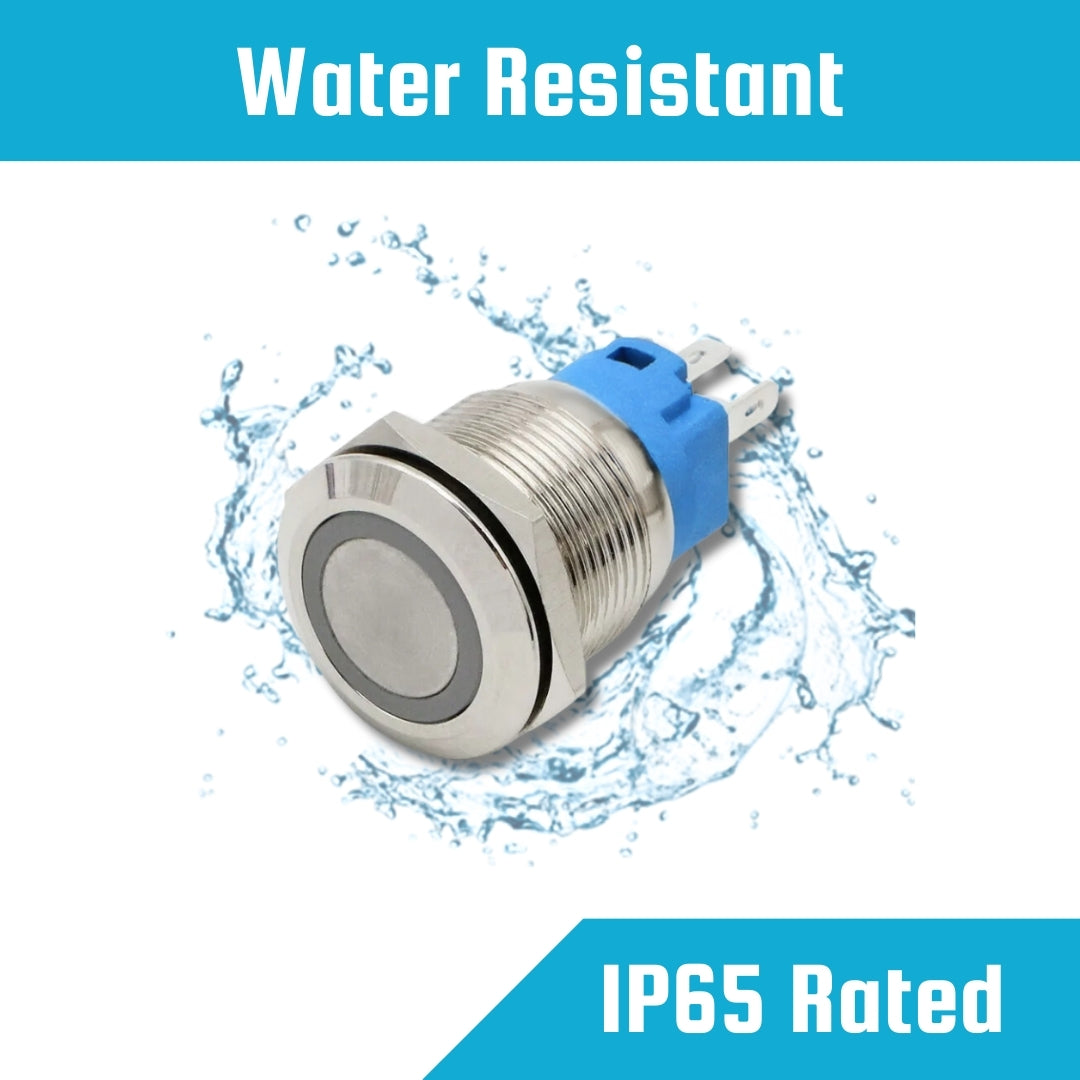

- It is an IP65 rated product.
- 4.5 amp loading capacity.

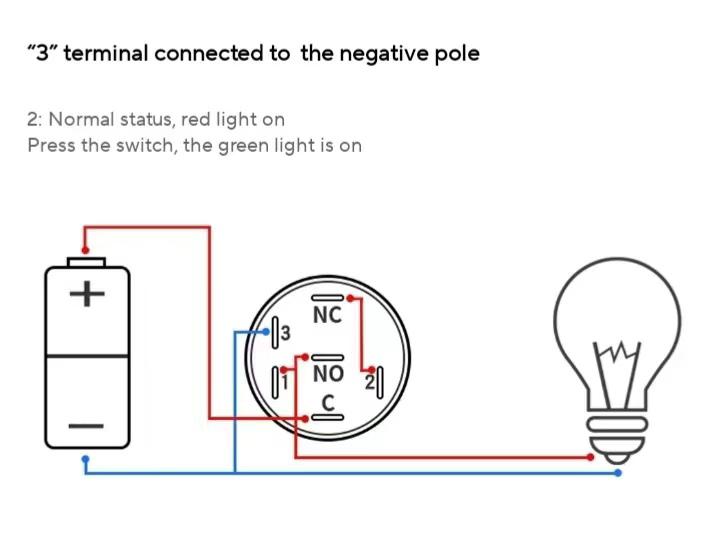

- 5 pin = 1 -LED +,1 – LED -, 1 – COM, 1 – NO, 1 – NC.
- High Quality Stainless Steel Material.
- Yanwev Pvt. Ltd. Product By South Korea.
- 3 month replacement Guarantee.

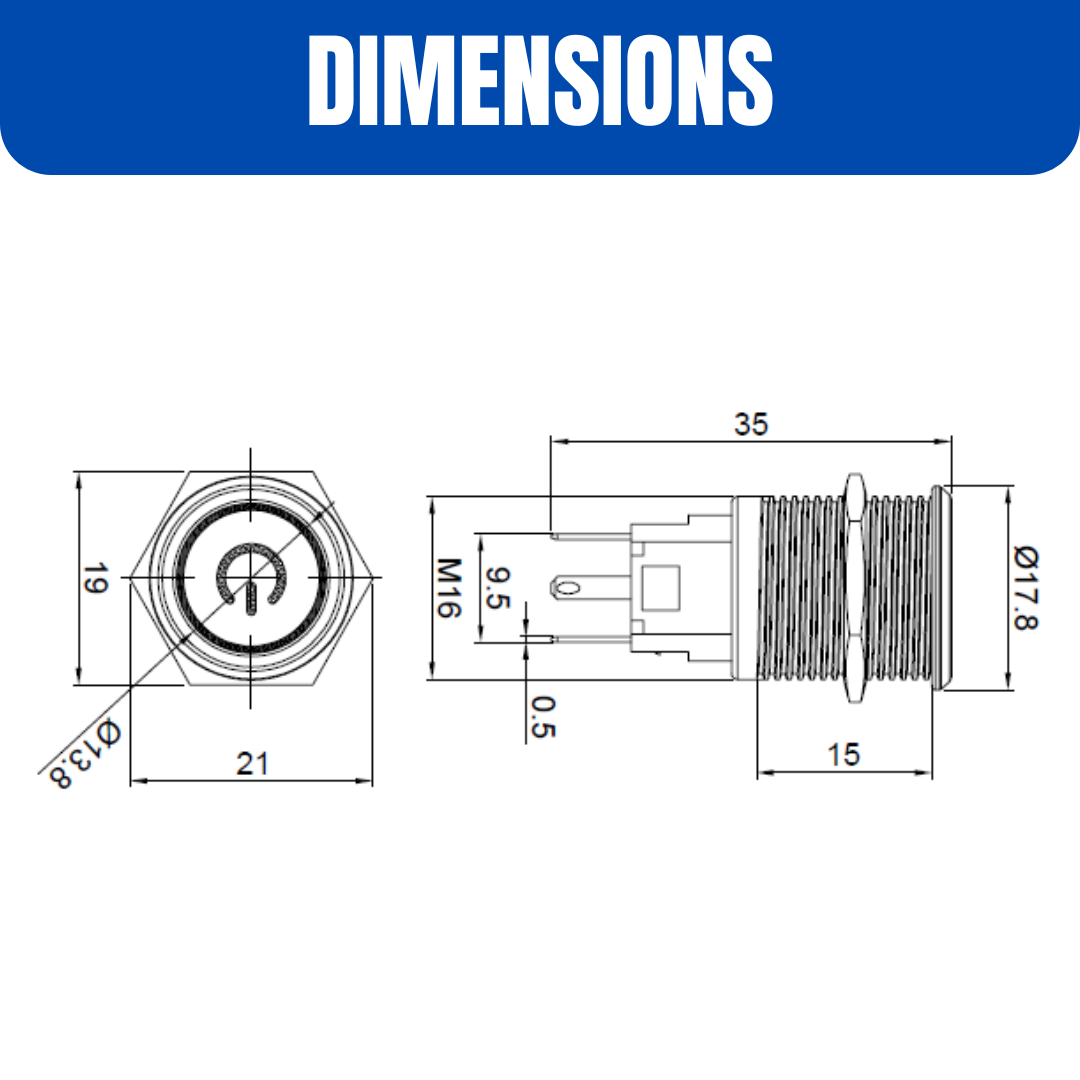

- Mounting Hole Diameter 16mm+.
- Tested for more than 30,000 presses.
- Stainless steel material for long period use.

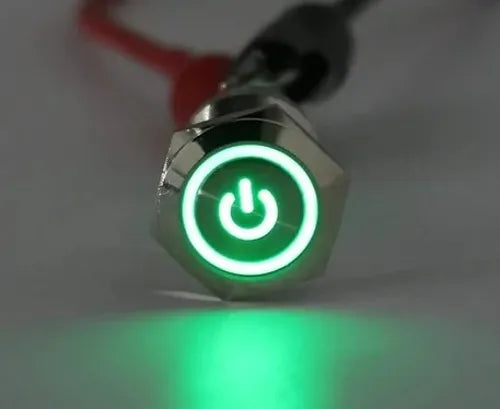

- In-built round ring illuminated LED.
- Independent LED and Switch Terminals.
- Good Electrical Conductivity.
- Rubber ring and nut for fixing, Waterproof and dustproof.
NOTE :- Latching ON/OFF Type Switch will works as it will be ON on the first press and OFF on the second press.
