Product Description

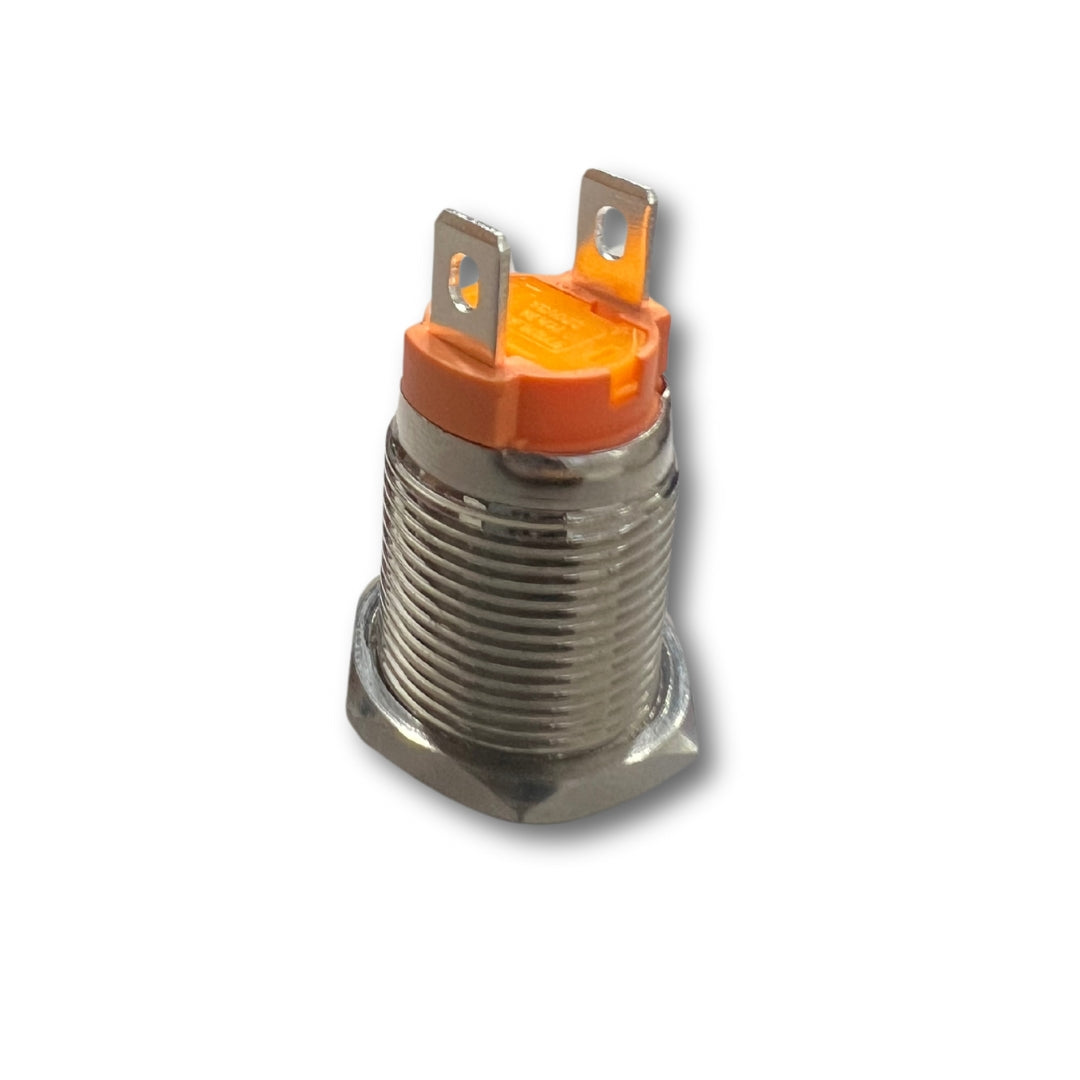

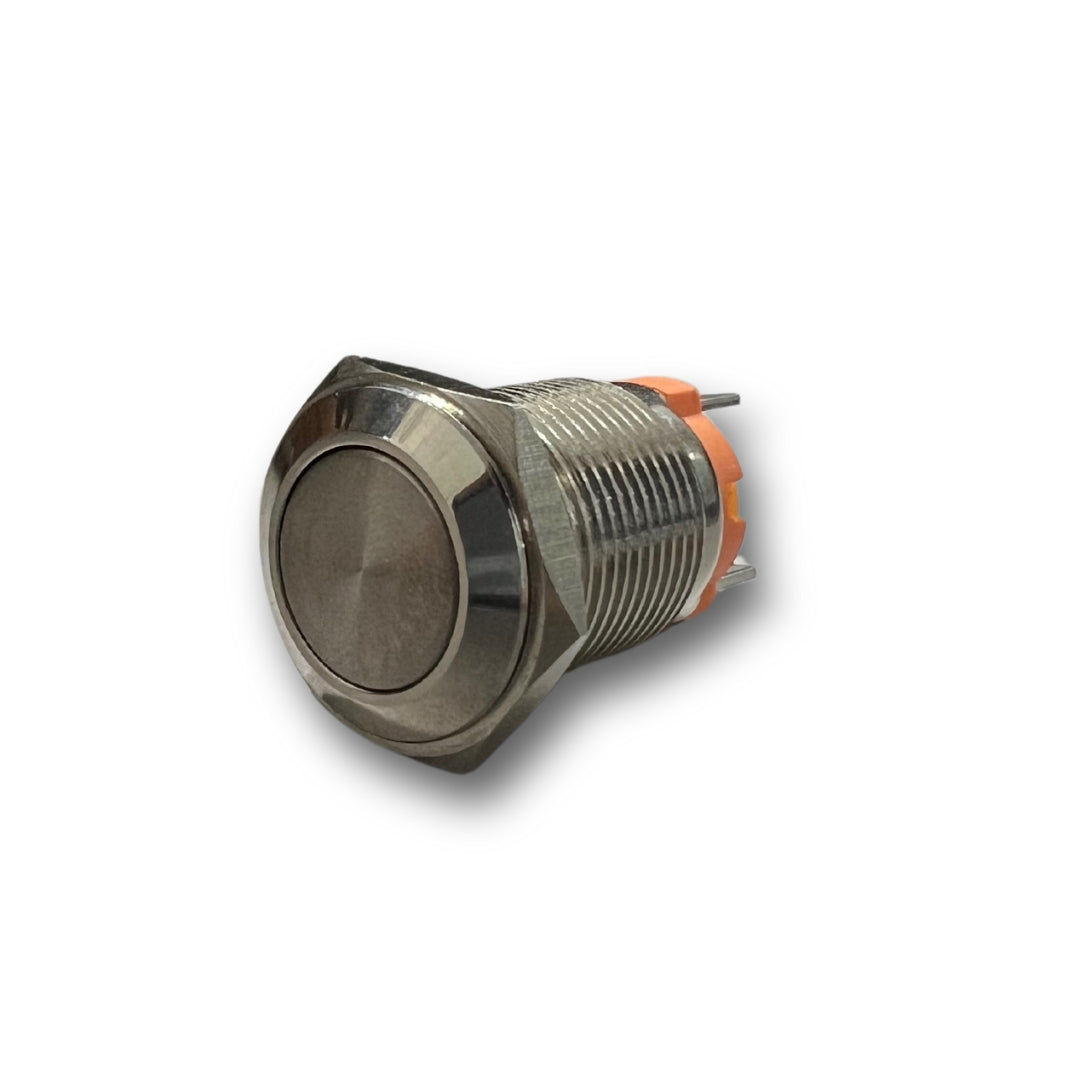

This 16mm latching push button switch is designed for panel-mounted control interfaces. Confirmed specifications include 1NO contacts, a nickel-plated brass body, IP67 / IK10 protection and solder pins / terminal posts termination. The documented operating data includes mechanical life of 500,000 cycles, electrical life of 50,000 cycles and an operating temperature range of -20°C to +55°C.
Product specifications
- Product type: Metal Panel Pushbutton
- Panel cutout: 16mm
- Panel thickness: ≤ 11mm
- Operation: Latching
- Contact configuration: 1NO
- Number of poles: 1
- Contact operation: NO closes on press
- Voltage range: 5–24V DC
- Head profile: Flat
- Actuator shape: Round
- Body material: Nickel-plated brass
- Ingress protection: IP67
- Impact resistance: IK10
- Terminal type: Solder pins / terminal posts
- Operating force: 2.5-4.5 N
- Mechanical life: 500,000 cycles
- Electrical life: 50,000 cycles
- Operating temperature: -20°C to +55°C
Product Specifications
| Product type | Metal Panel Pushbutton |
| Panel cutout | 16mm |
| Panel thickness | ≤ 11mm |
| Operation | Latching |
| Contact configuration | 1NO |
| Number of poles | 1 |
| Contact operation | NO closes on press |
| Voltage range | 5–24V DC |
| Head profile | Flat |
| Actuator shape | Round |
| Body material | Nickel-plated brass |
| Ingress protection | IP67 |
| Impact resistance | IK10 |
| Terminal type | Solder pins / terminal posts |
| Operating force | 2.5-4.5 N |
| Mechanical life | 500,000 cycles |
| Electrical life | 50,000 cycles |
| Operating temperature | -20°C to +55°C |
Bulk Pricing (Excluding GST)
| Quantity | Discount | Unit Price (Excl. GST) |
|---|---|---|
| 10 nos | 5% | ₹ 305.13 |
| 20 nos | 7% | ₹ 298.7 |
| 50 nos | 10% | ₹ 289.07 |
| 100 nos | 12% | ₹ 282.64 |
| 250 nos | 15% | ₹ 273.01 |
| 500 nos | 18% | ₹ 263.37 |
| 1000 nos & more | 20% | ₹ 256.95 |
Complete the installation
Accessories for this Pushbutton
Enhance your installation with these recommended accessories.
Questions buyers ask before ordering
Frequently Asked Questions
Open a question to see the answer.
Use a 16mm mounting hole, based on the product title.
It is latching, so the switch remains in its changed state until actuated again.
Use the listed 24V DC supply and match any LED circuit to the exact rated voltage.
The title states 16A. Do not exceed the listed electrical rating.
Yes for mains, high-current or unfamiliar control circuits. Isolate power and have a qualified technician verify the wiring and application.
Panel control selection
Check panel fit, switching behaviour and wiring
Choose the product by its panel opening, operating action, electrical details and connection requirements. The selected variant and product specifications are the final reference.
Before ordering
Confirm the essential selection details
The information below is a checking sequence. Use the selected variant and populated product specifications for the exact values.
Panel opening
Confirm the required mounting or cut-out size before ordering.
Operating action
Check whether the application requires momentary, latching or another stated action.
Electrical details
Match the stated voltage, contact arrangement and load information to the circuit.
Illumination and wiring
Confirm LED colour, supply requirements, terminals, pin count and compatible accessories where stated.
Variant clarity
Compare the available product options
Price, SKU and availability are shown for each current Shopify variant. Select the required option in the purchase area before adding it to the cart.
Default Title
- Price
- ₹379.00
- SKU
- 1615
- Status
- Available
Technical information
Product specifications
These values come from the populated product specification data. Check whether a value applies to the whole product or to a selected variant.
Product typeMetal Panel Pushbutton
Panel cutout16mm
Panel thickness≤ 11mm
OperationLatching
Contact configuration1NO
Number of poles1
Contact operationNO closes on press
Voltage range5–24V DC
Head profileFlat
Actuator shapeRound
Body materialNickel-plated brass
Ingress protectionIP67
Impact resistanceIK10
Terminal typeSolder pins / terminal posts
Operating force2.5-4.5 N
Mechanical life500,000 cycles
Electrical life50,000 cycles
Operating temperature-20°C to +55°C
Need confirmation?
Ask before ordering when compatibility is uncertain
Share the intended application, required quantity and any relevant voltage, dimensions or connection details. Support can then confirm what the available product information supports.
