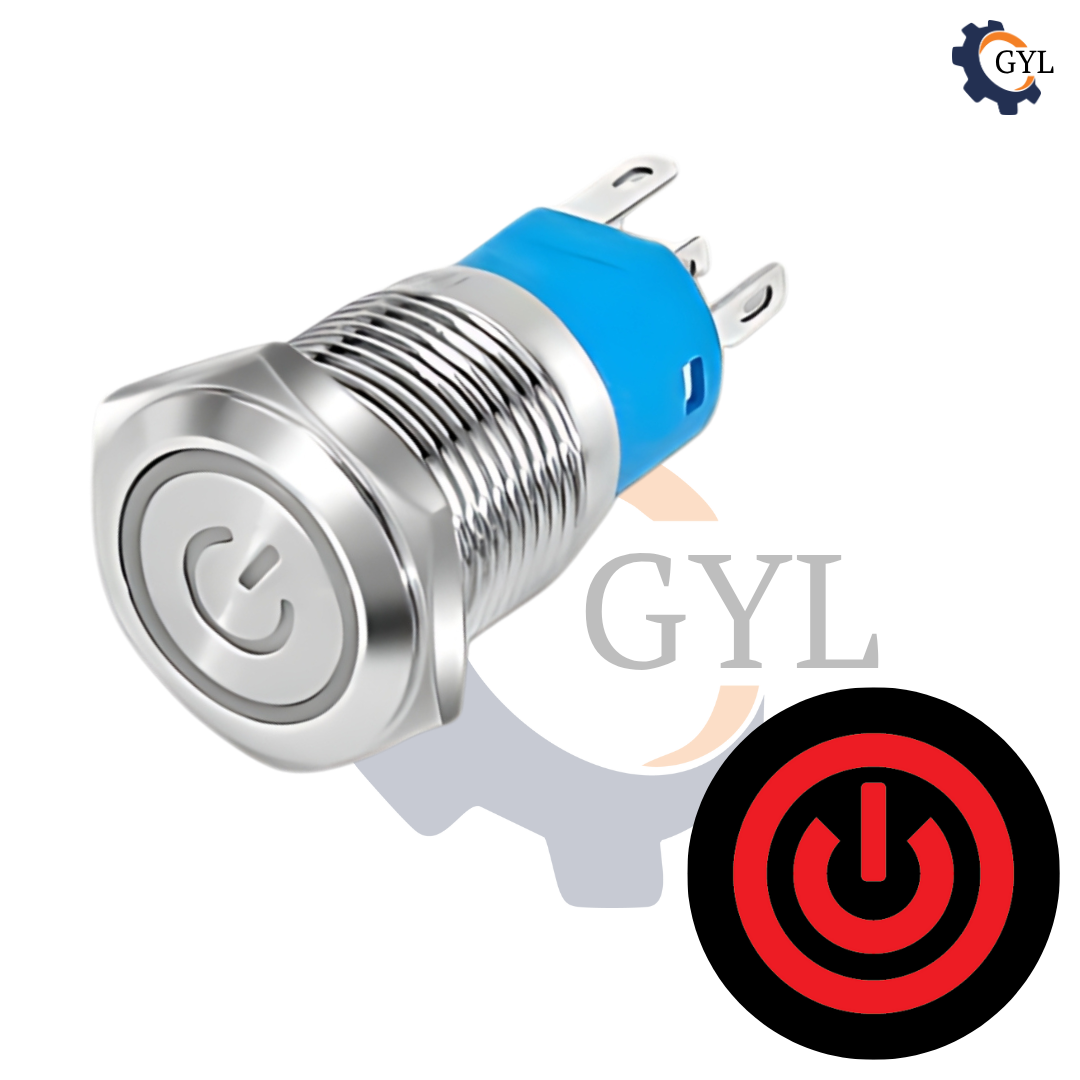

16mm Red LED Stainless Steel Latching Push Button Switch 220V AC
16mm Red LED Stainless Steel Latching Push Button Switch 220V AC
Estimated delivery time
Get fastest by
08 Jul 2026
Regular price
₹225.00
Regular price
Sale price
₹225.00
Unit price
per
(
₹
190.68
+ 18% GST Extra
)
Bulk Inquiry?
COD Available
UPI
Cards Accepted
Net Banking
Couldn't load pickup availability
100% Safe Payments
FREE Delivery
GST Billing
Quality Checked
Product Description
- 220v AC Power LED (210v AC to 240v AC).
- It is an IP65 rated product.
- 4.5 amp loading capacity.

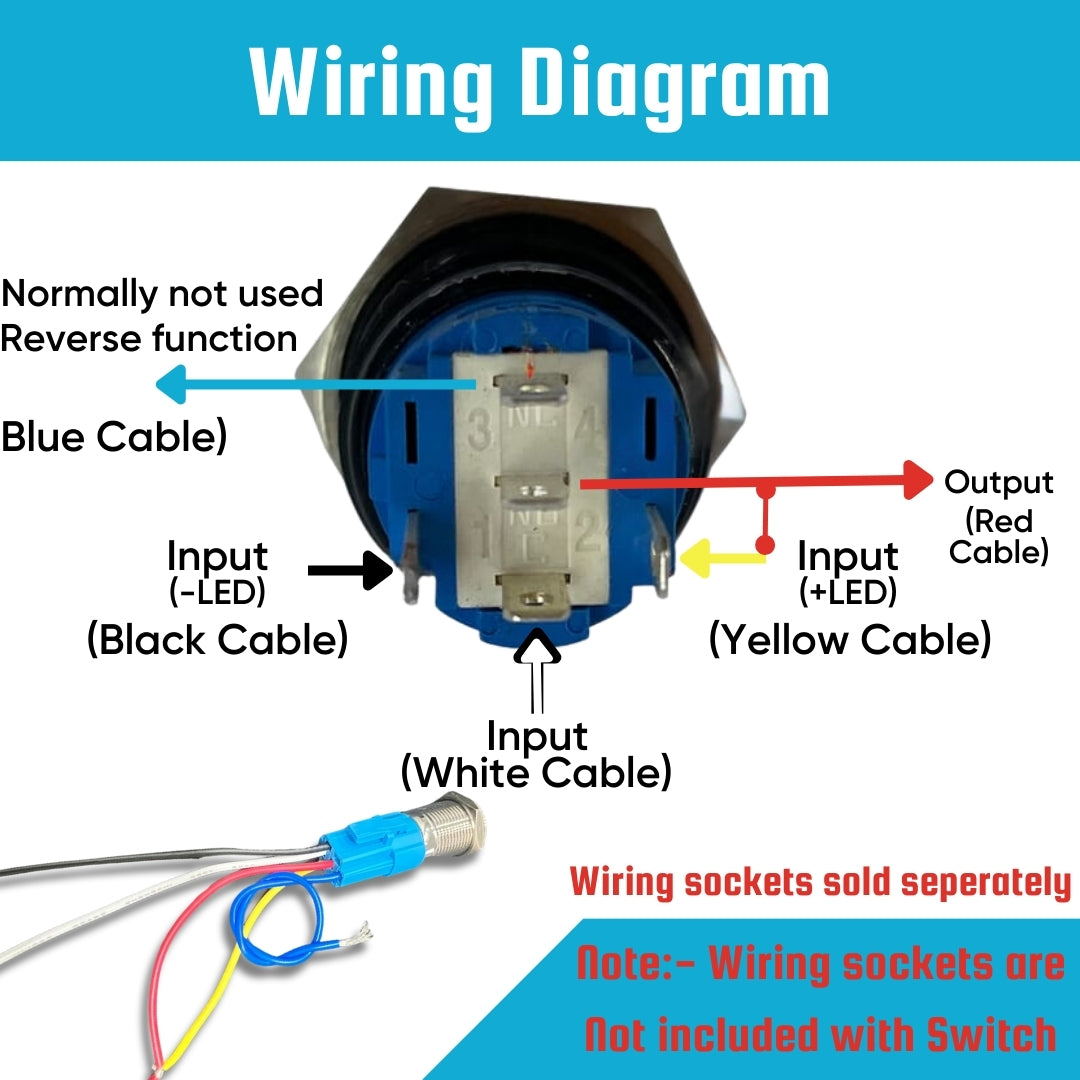

- 5 pin = 1 -LED +,1 – LED -, 1 – COM, 1 – NO, 1 – NC.
- High Quality Stainless Steel Material.
- 3 month replacement Guarantee.

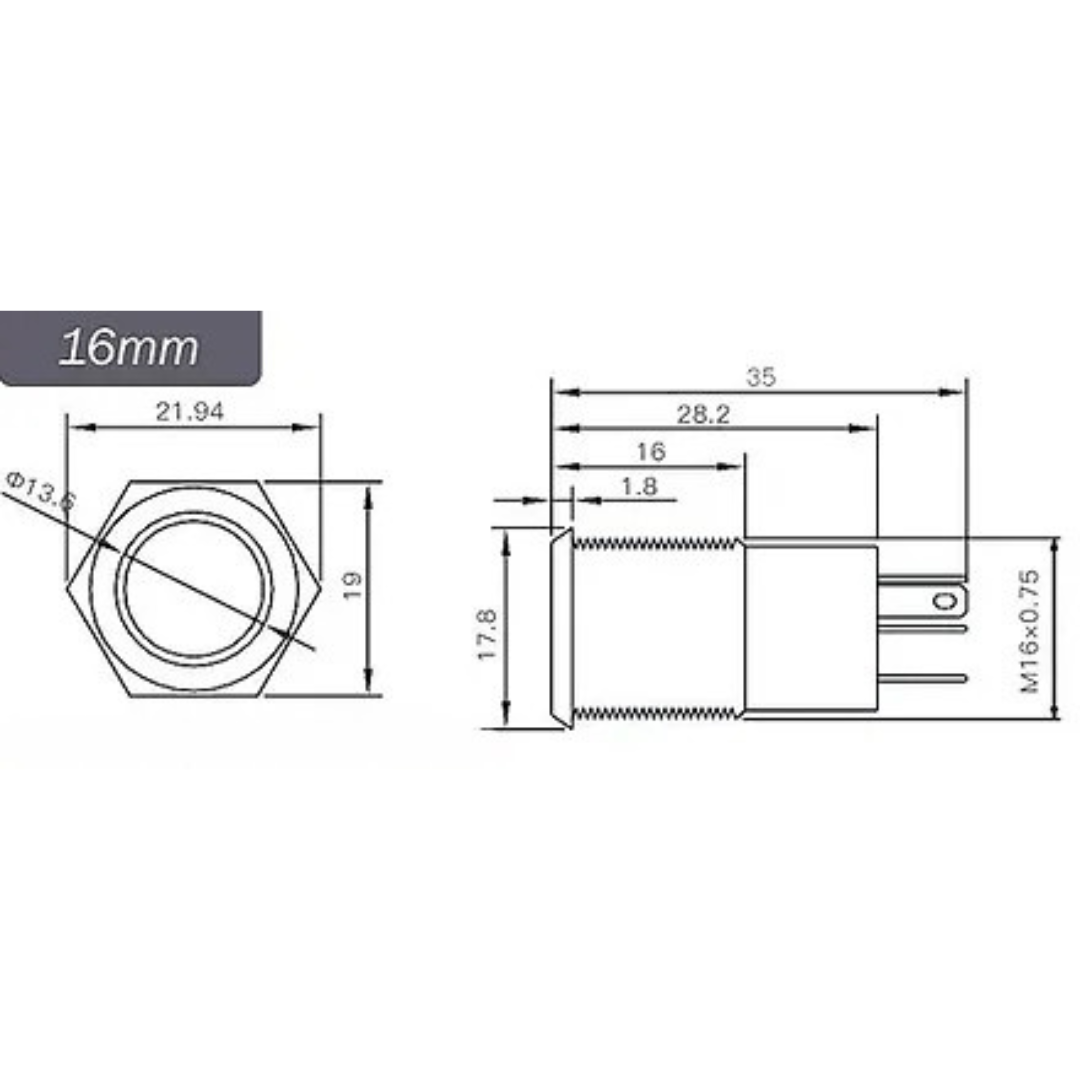

- Mounting Hole Diameter 16mm+.
- Tested for more than 30,000 presses.
- Stainless steel material for long period use.
- In-built round ring illuminated LED.

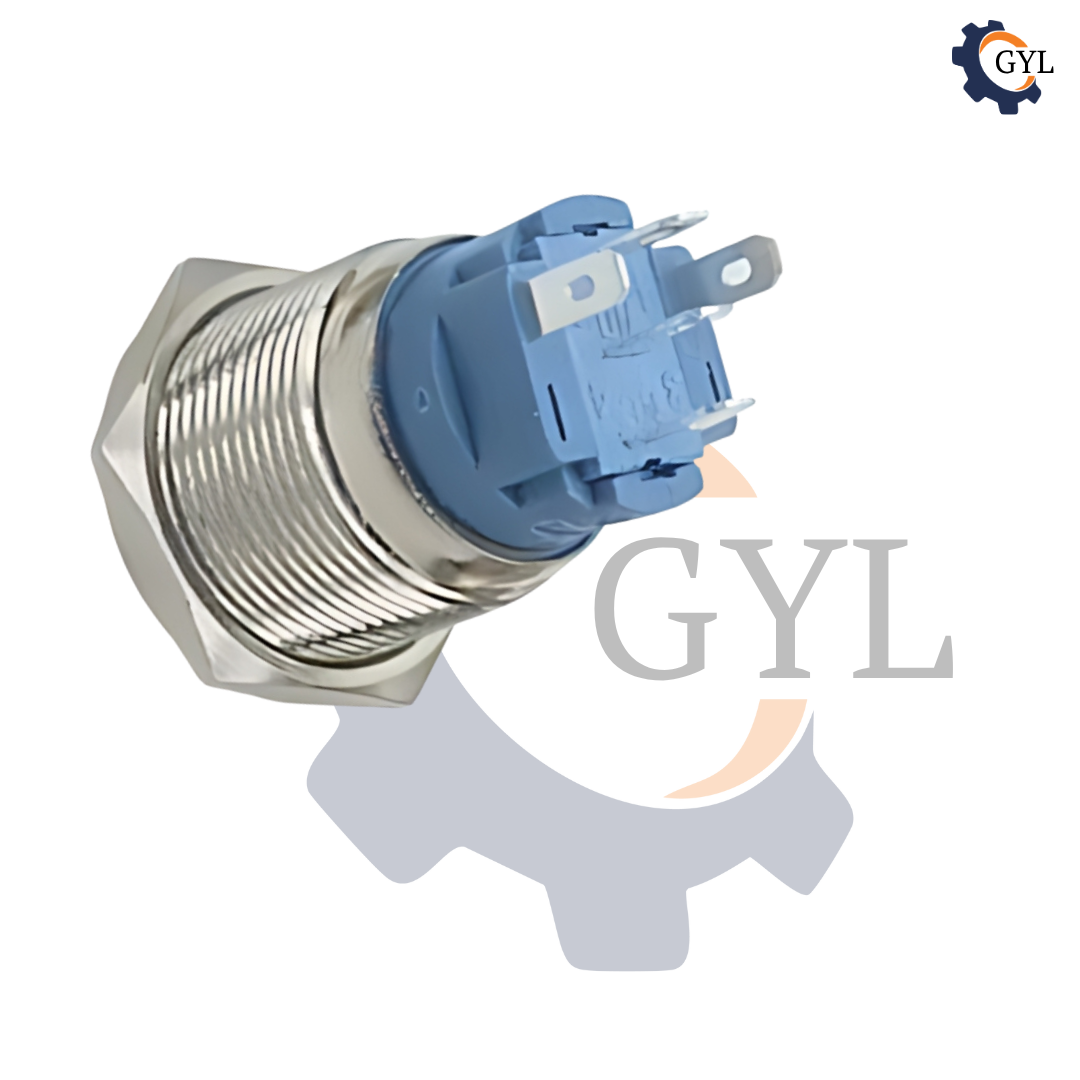

- Independent LED and Switch Terminals.
- Good Electrical Conductivity.
- Rubber ring and nut for fixing, Waterproof and dustproof.

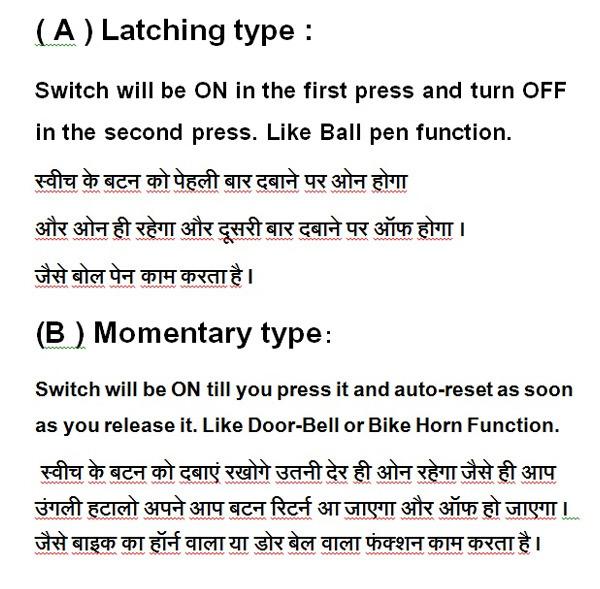

NOTE :- Latching ON/OFF Type Switch will works as it will be ON on the first press and OFF on the second press.
Product Highlights
- 16mm panel-mount size
- Latching Type operation
- Compatible with 220v AC circuits
- Red LED indication
- Stainless Steel body
- IP65 protection rating
Product Specifications
| Mounting size | 16mm |
| Voltage | 220v AC |
| Operation | Latching Type |
| Colour | Red |
| Material | Stainless Steel |
| Pin count | 5 pin |
| IP rating | IP65 |
Product Datasheet
Download or view the detailed technical datasheet for this product below.
Product Specifications
| Mounting size | 16mm |
| Locking type ? | Latching type |
| Material | Nickel with Lead Chrome |
| Waterproofing rating | IP65 |
| Operating Voltage | 220v AC (210v to 240v) |
| Loading capacity | 4.5 ampere |
| Pinout type | solder pin |
| Number of Pins | 5 |
| Pin type | LED +, LED -, COMMON, NO, NC |
| LED type | Single Color LED |
| Configuration | SPST (one input, & one output) |
| Package Contents | Pushbutton @ 1 nos |
| Datasheet | Download Datasheet |
