16mm, 19mm & 22mm Size 220V AC RED&GREEN Power symbol DUAL Led S.S. Latching pushbutton SPST
16mm, 19mm & 22mm Size 220V AC RED&GREEN Power symbol DUAL Led S.S. Latching pushbutton SPST
Regular price
Rs. 299.00
Regular price
Rs. 599.00
Sale price
Rs. 299.00
Unit price
per
Shipping calculated at checkout.
(Price are inclusive of 18% GST)
Bulk Inquiry?
COD Available
UPI
Cards Accepted
Net Banking
Couldn't load pickup availability
Replacement guarantee
Express Delivery
GST Billing
Quality Checked
Product Description
-
-
220v - 240v AC OR 12 - 24v DC Power LED

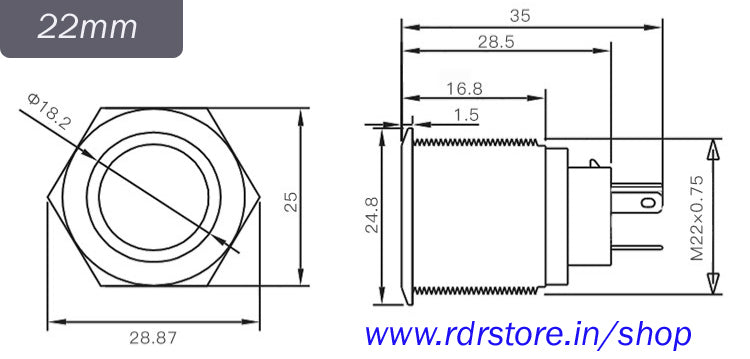

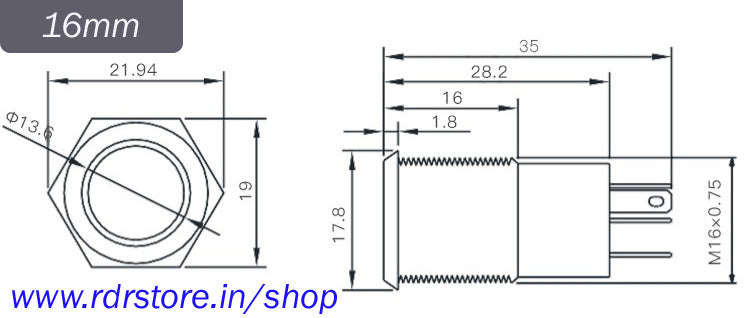

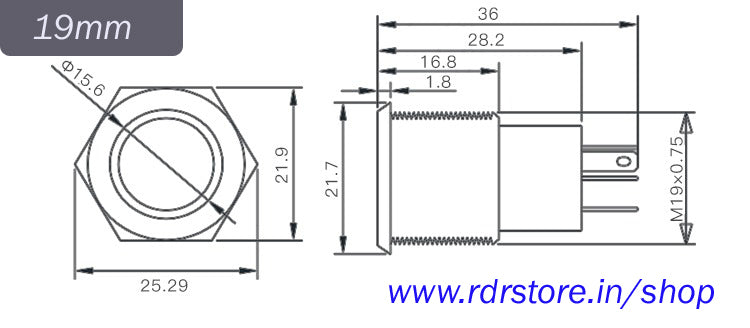

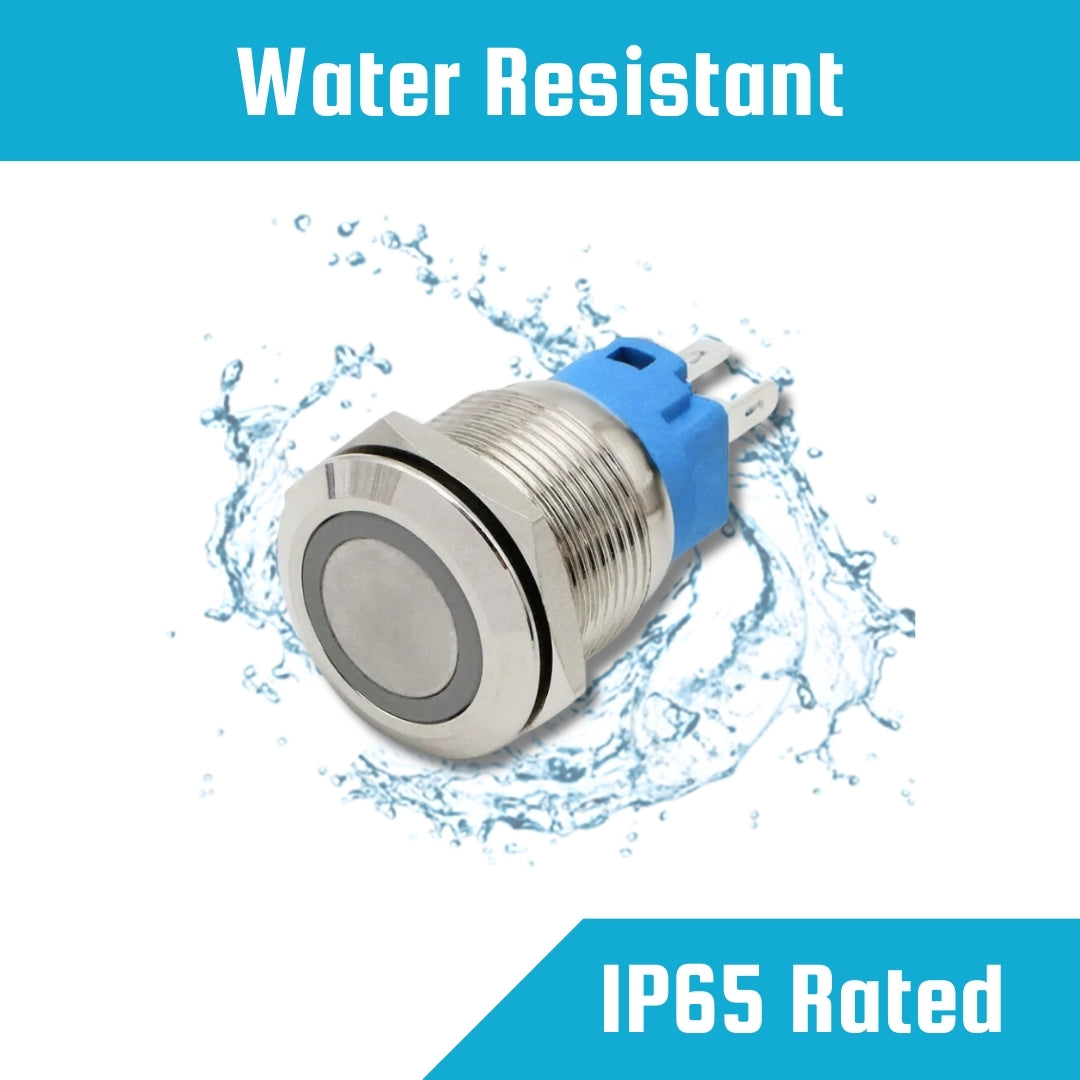

It is an IP65 rated product. - 16mm = 4.5amp, 19mm = 7.5 amp & 22mm = 10amp loading capacity.

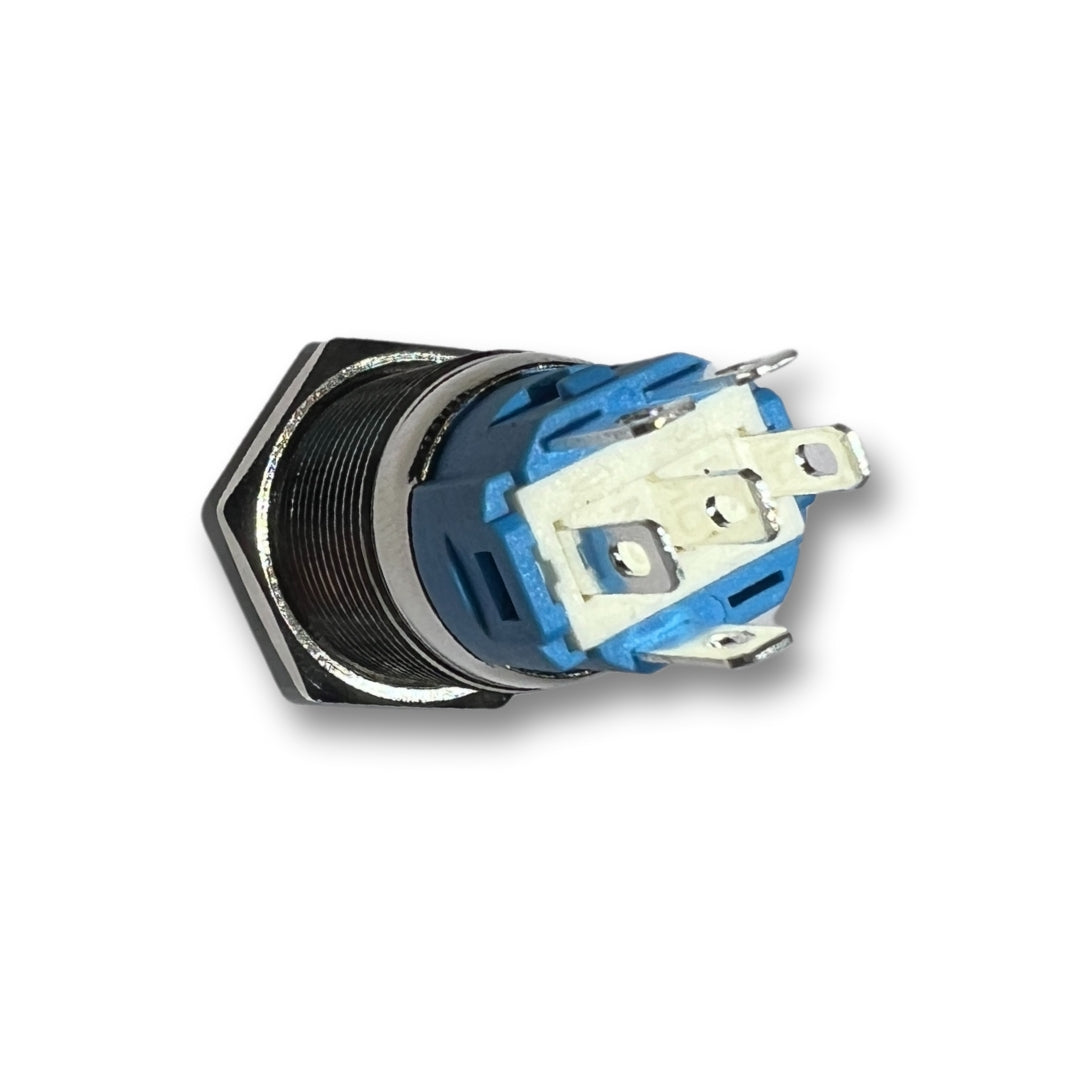

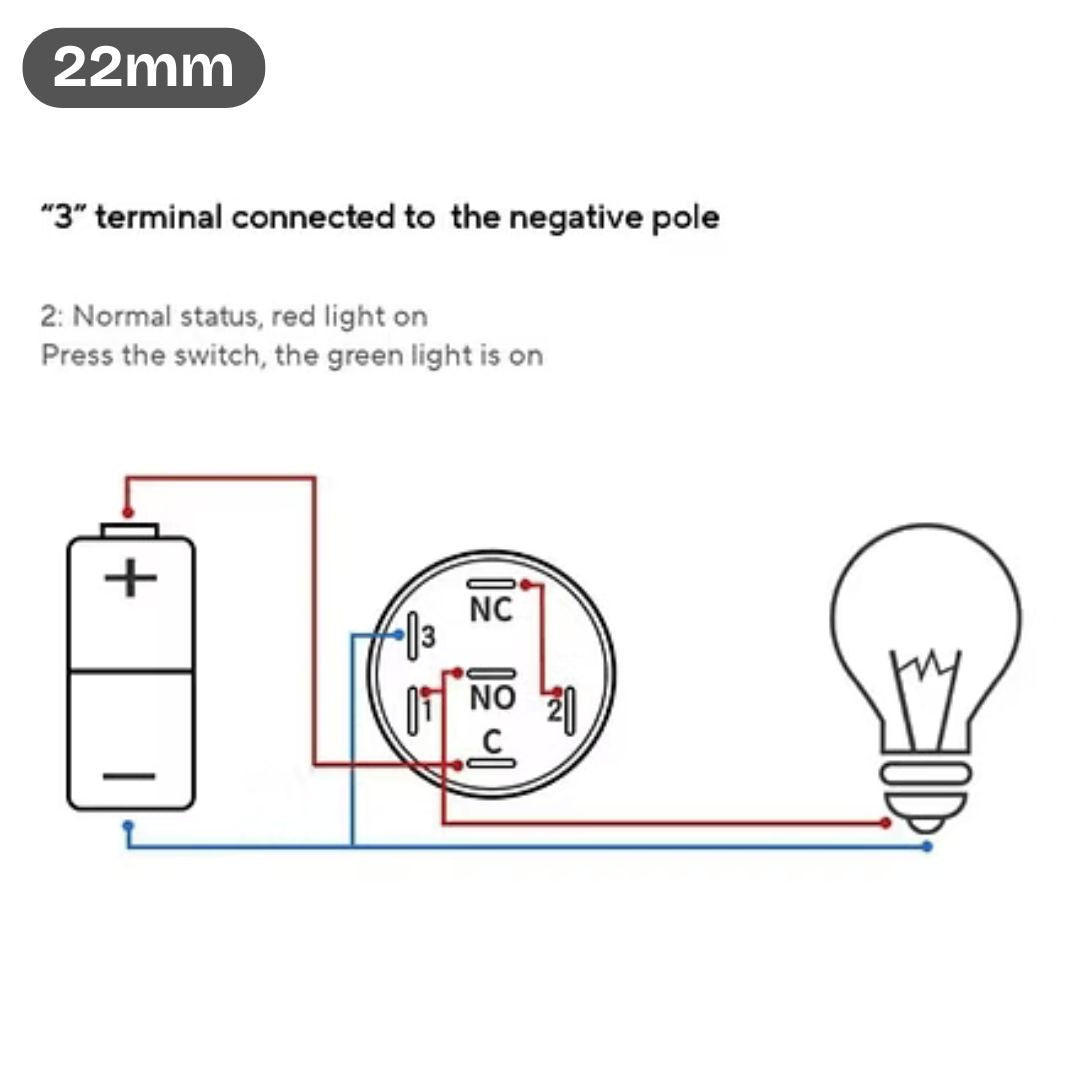

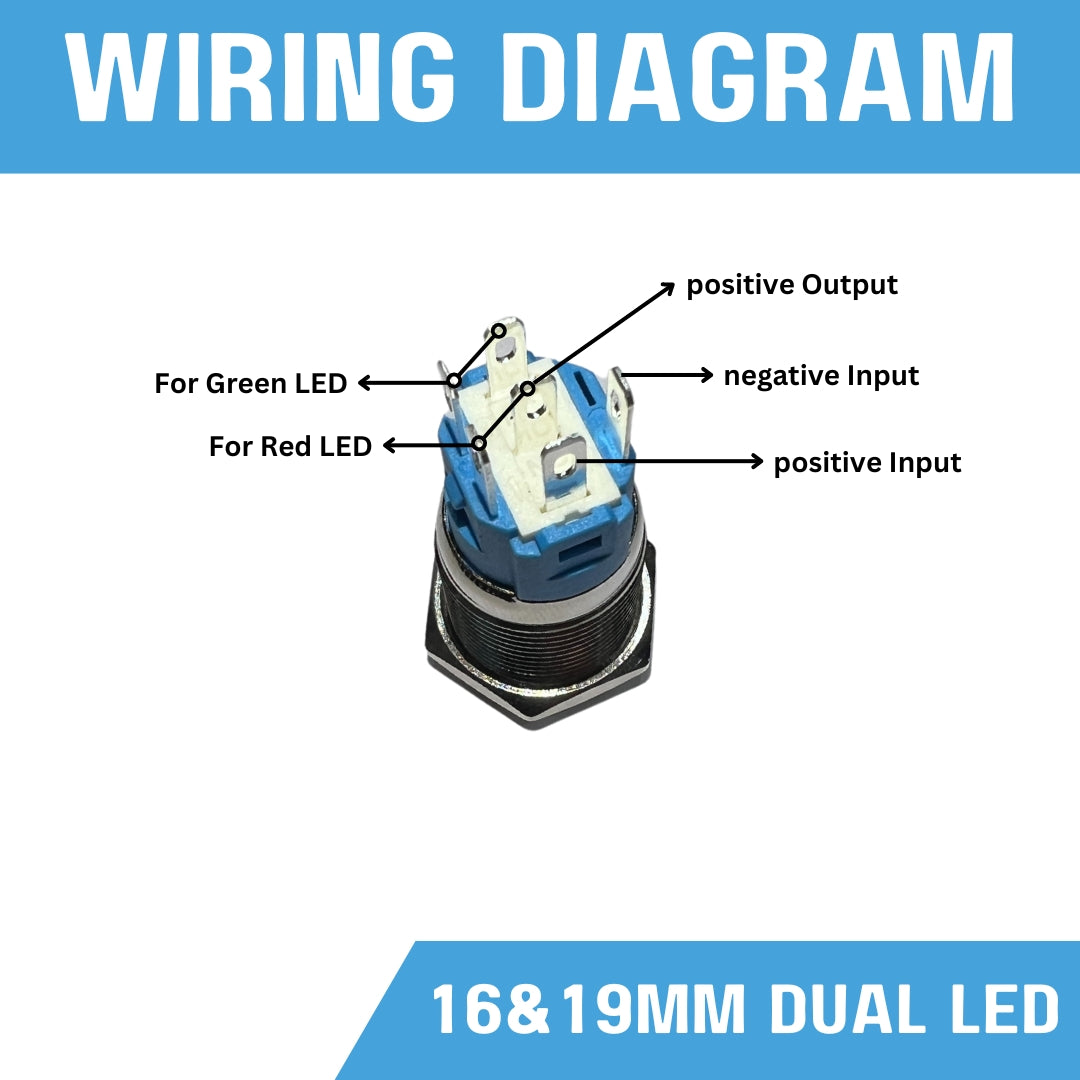

- 6 pin = 2 -LED +,1 – LED -, 1 – COM, 1 – NO, 1 – NC.
- High Quality Stainless Steel Material.
- Yanwev Pvt. Ltd. Product By South Korea.
- 3 month replacement Guarantee.

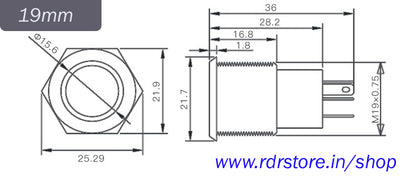

- Mounting Hole Diameter 19mm+.
- Tested for more than 30,000 presses.
- Stainless steel material for long period use.

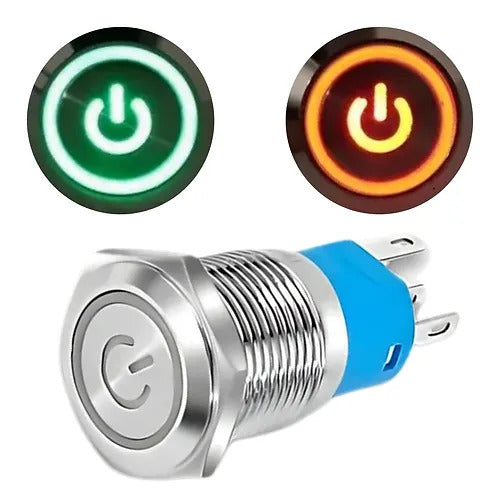

- In-built round ring illuminated Red & Green LED.
- Independent LED and Switch Terminals.
- Good Electrical Conductivity.
- Rubber ring and nut for fixing, Waterproof and dustproof.
NOTE :- Latching ON/OFF Type Switch will works as it will be ON on the first press and OFF on the second press.
-
220v - 240v AC OR 12 - 24v DC Power LED
