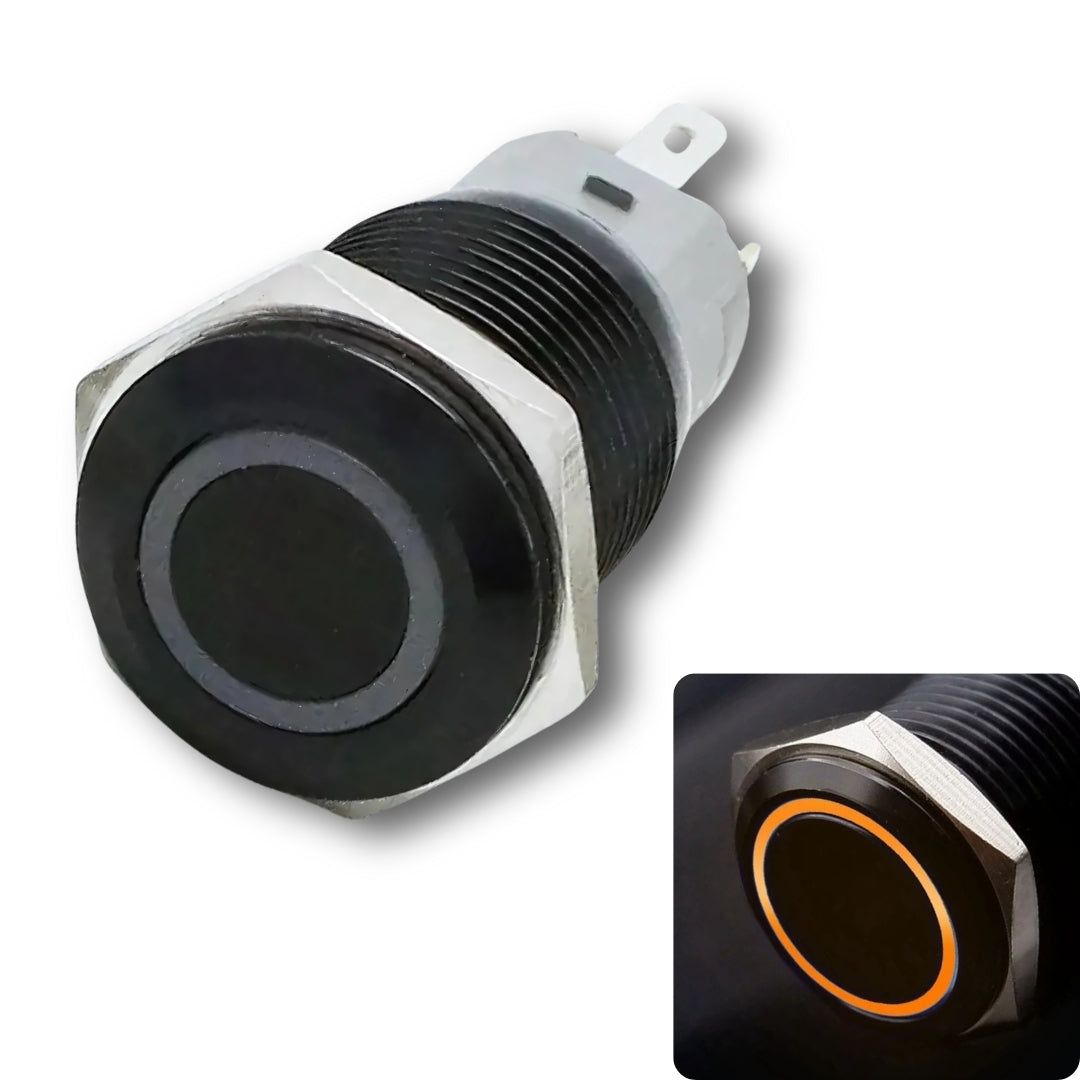

16mm Black Body Latching Push Button Switch 5–24V DC

• 5-24v DC OR 240v AC Power LED
• It is an IP65 rated product.
• 12mm: 1amp,16mm: 4.5amp, 19mm: 7.5amp, 22mm: 10amp loading capacity.
• 12mm: 4pin(C,NO,LED+,LED-), 16, 19 and 22 mm:5 pin = 1 -LED +,1 – LED -, 1 – COM, 1 – NO, 1 – NC.
• High Quality Stainless Steel Material.
• 3 month replacement Guarantee.
• Mounting Hole Diameter 12mm, 16mm, 19mm, 22mm as your selection.
• Tested for more than 30,000 presses.
• Stainless steel material for long period use.
• In-built illuminated LED.
• Independent LED and Switch Terminals.
• Good Electrical Conductivity.

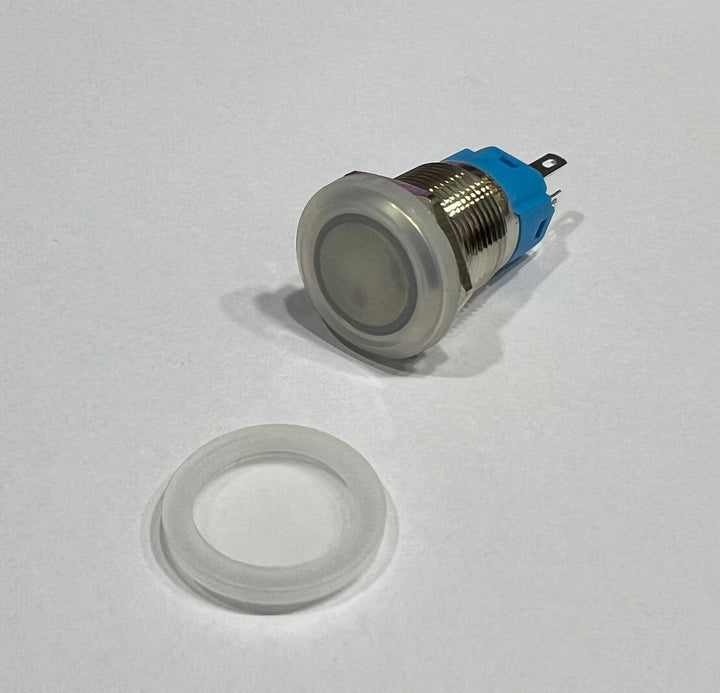

• Rubber ring and nut for fixing, Waterproof and dustproof.
• NOTE:-Latching ON/OFF Type Switch will works as it will be ON on the first press and OFF on the second press.

Product Highlights

• 16mm panel-mount size
• Latching Type operation
• Compatible with 5v-24v circuits
• Stainless Steel body
• IP65 protection rating
• 4pin terminal configuration
