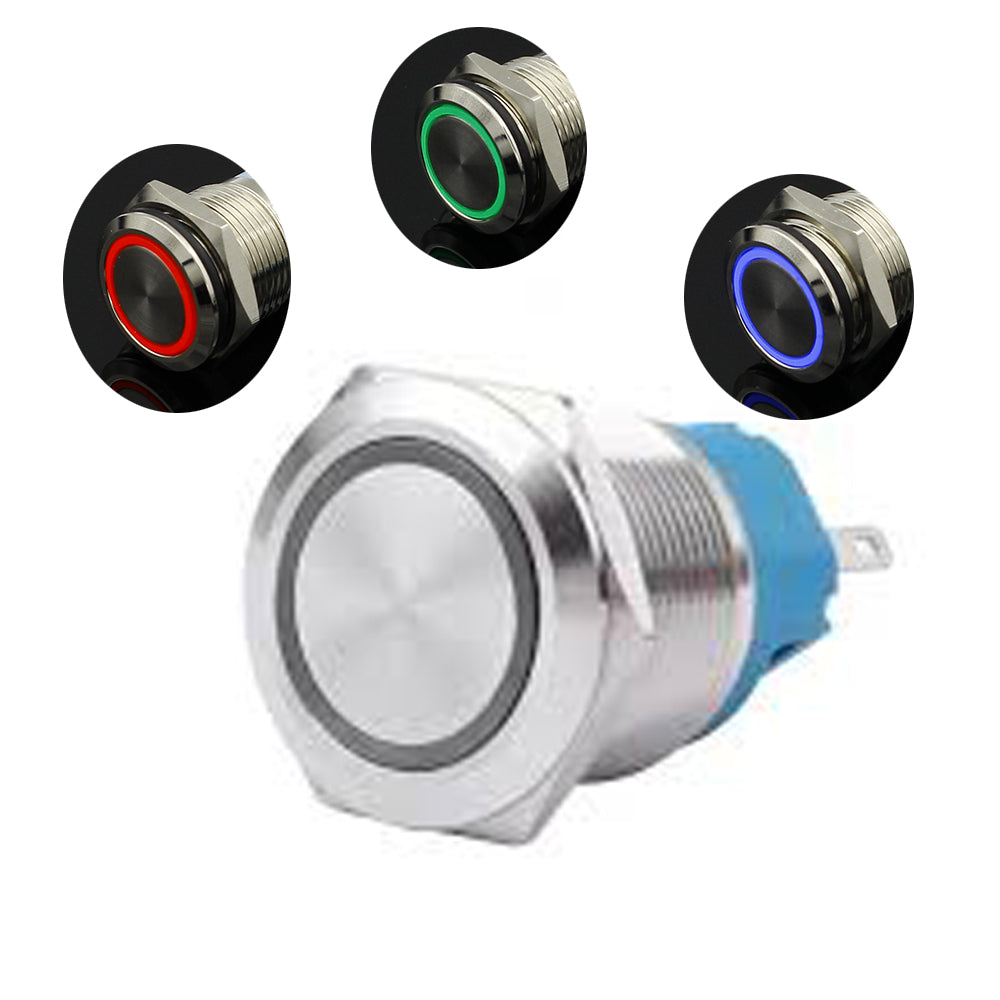

16mm RGB LED Stainless Steel Latching Push Button Switch 12V DC
16mm RGB LED Stainless Steel Latching Push Button Switch 12V DC
Estimated delivery time
Get fastest by
08 Jul 2026
Regular price
₹335.00
Regular price
Sale price
₹335.00
Unit price
per
(
₹
283.90
+ 18% GST Extra
)
Bulk Inquiry?
COD Available
UPI
Cards Accepted
Net Banking
Couldn't load pickup availability
100% Safe Payments
FREE Delivery
GST Billing
Quality Checked
Product Description
- 5-24v DC Power LED

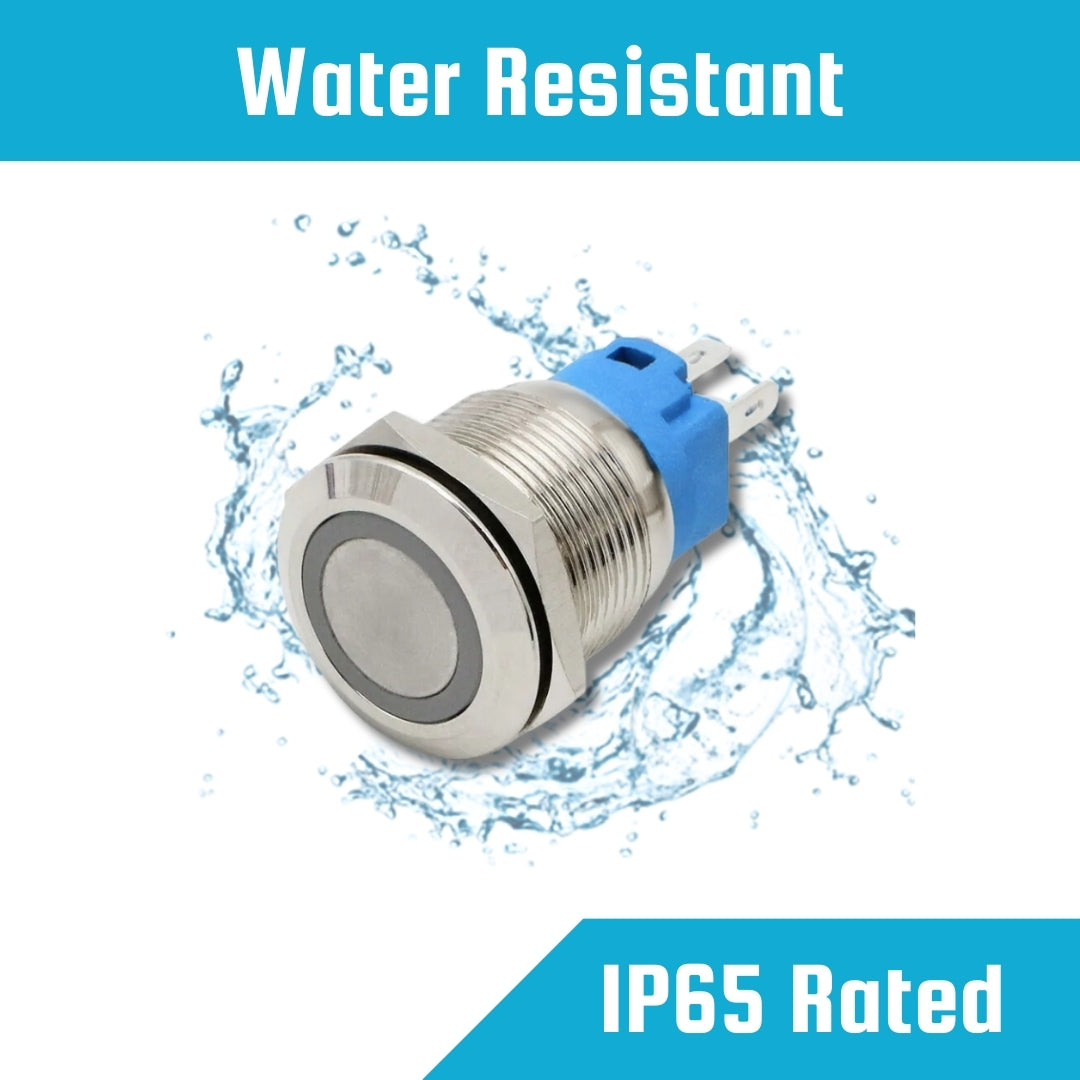

- It is an IP65 rated product.
- 16mm: 4.5amp

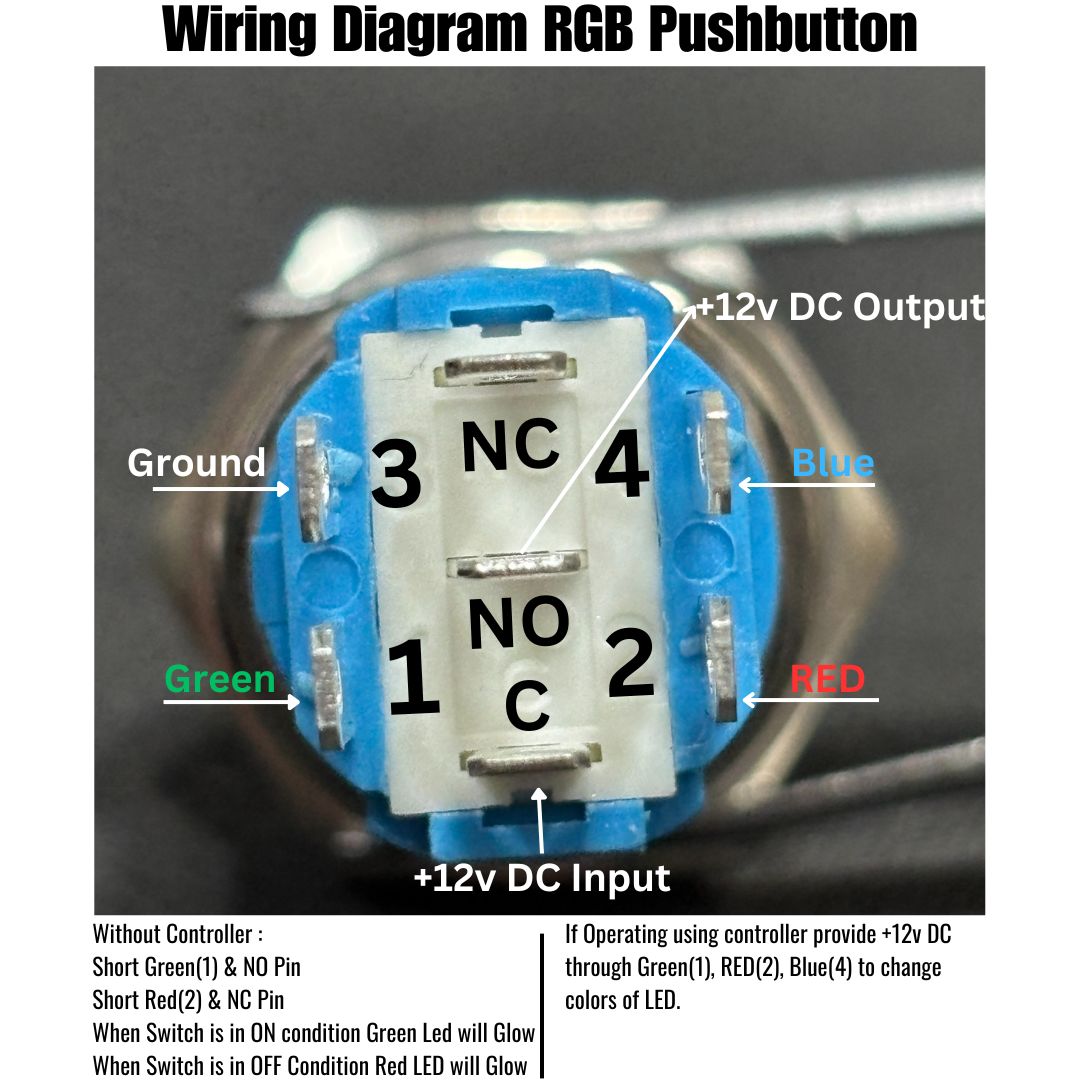

- 16mm: 7 pin = COM, NO, NC, 4 pins for LED.
- High Quality Stainless Steel Material.
- 3 month replacement Guarantee.

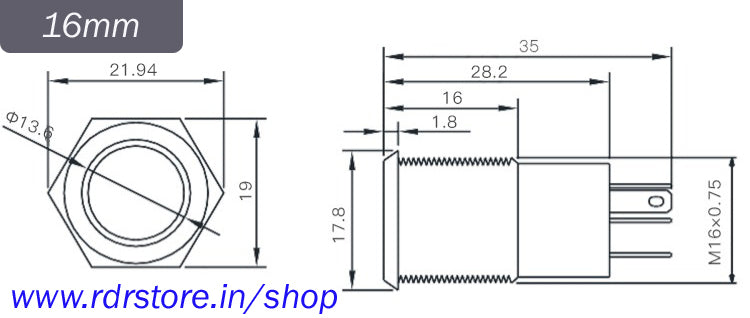

- Mounting Hole Diameter 16mm.
- Tested for more than 30,000 presses.
- Stainless steel material for long period use.

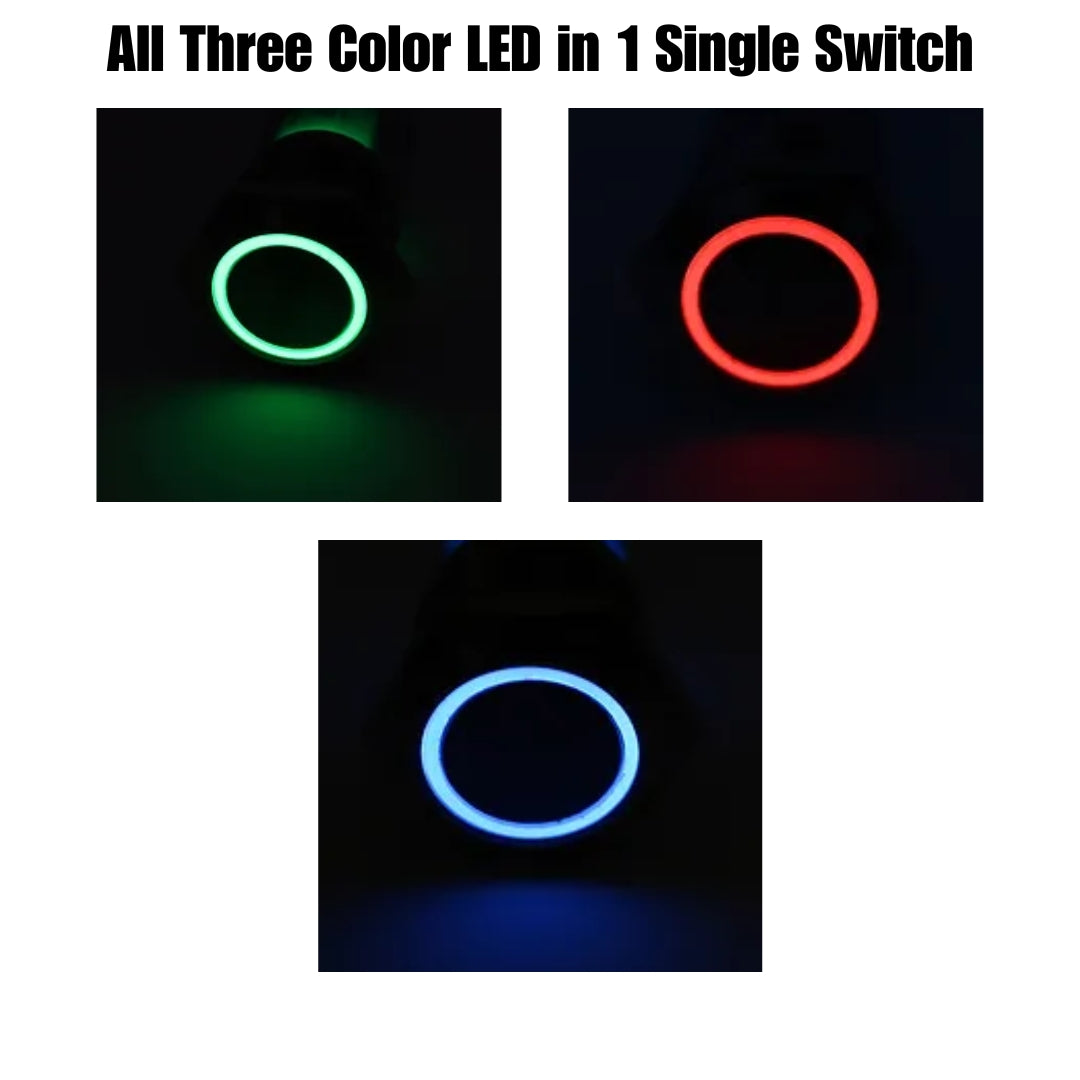

- In-built illuminated LED.
- Independent LED and Switch Terminals.
- Good Electrical Conductivity.
- Rubber ring and nut for fixing, Waterproof and dustproof.
- NOTE:-Latching ON/OFF Type Switch will works as it will be ON on the first press and OFF on the second press.
Product Highlights
- 16mm panel-mount size
- Latching Type operation
- Compatible with 12v DC circuits
- Silver LED indication
- Stainless Steel body
- IP65 protection rating
Product Specifications
| Mounting size | 16mm |
| Voltage | 12v DC |
| Operation | Latching Type |
| Colour | Silver |
| Material | Stainless Steel |
| Pin count | 4 pins |
| IP rating | IP65 |
Product Datasheet
Download or view the detailed technical datasheet for this product below.
Bulk Pricing (Excluding GST)
| Quantity | Discount | Unit Price (Excl. GST) |
|---|---|---|
| 10 nos | 5% | ₹ 269.7 |
| 20 nos | 7% | ₹ 264.03 |
| 50 nos | 10% | ₹ 255.51 |
| 100 nos | 12% | ₹ 249.83 |
| 250 nos | 15% | ₹ 241.31 |
| 500 nos | 18% | ₹ 232.8 |
| 1000 nos & more | 20% | ₹ 227.12 |
