12mm Size RED Led Stainless Steel Momentary Type Push Button Switch 5v-24v DC
12mm Size RED Led Stainless Steel Momentary Type Push Button Switch 5v-24v DC
Regular price
Rs. 129.00
Regular price
Sale price
Rs. 129.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
(Price are inclusive of 18% GST)
Bulk Inquiry?
COD Available
UPI
Cards Accepted
Net Banking
Couldn't load pickup availability
Chat
Replacement guarantee
Express Delivery
GST Billing
Quality Checked
Product Description
- 12v DC Power LED (4.5v to 24v).
- 1 amp loading capacity.

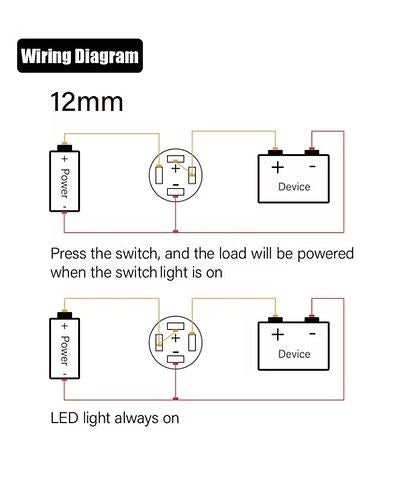

- 4 pin = 1 -LED +,1 – LED -, 1 – NO, 1 – NC.
- High Quality Stainless Steel Material.
- Yanwev Pvt. Ltd. Product By South Korea.
- 3 month replacement Guarantee.
- Mounting Hole Diameter 12mm+.
- Tested for more than 30,000 presses.
- Stainless steel material for long period use.

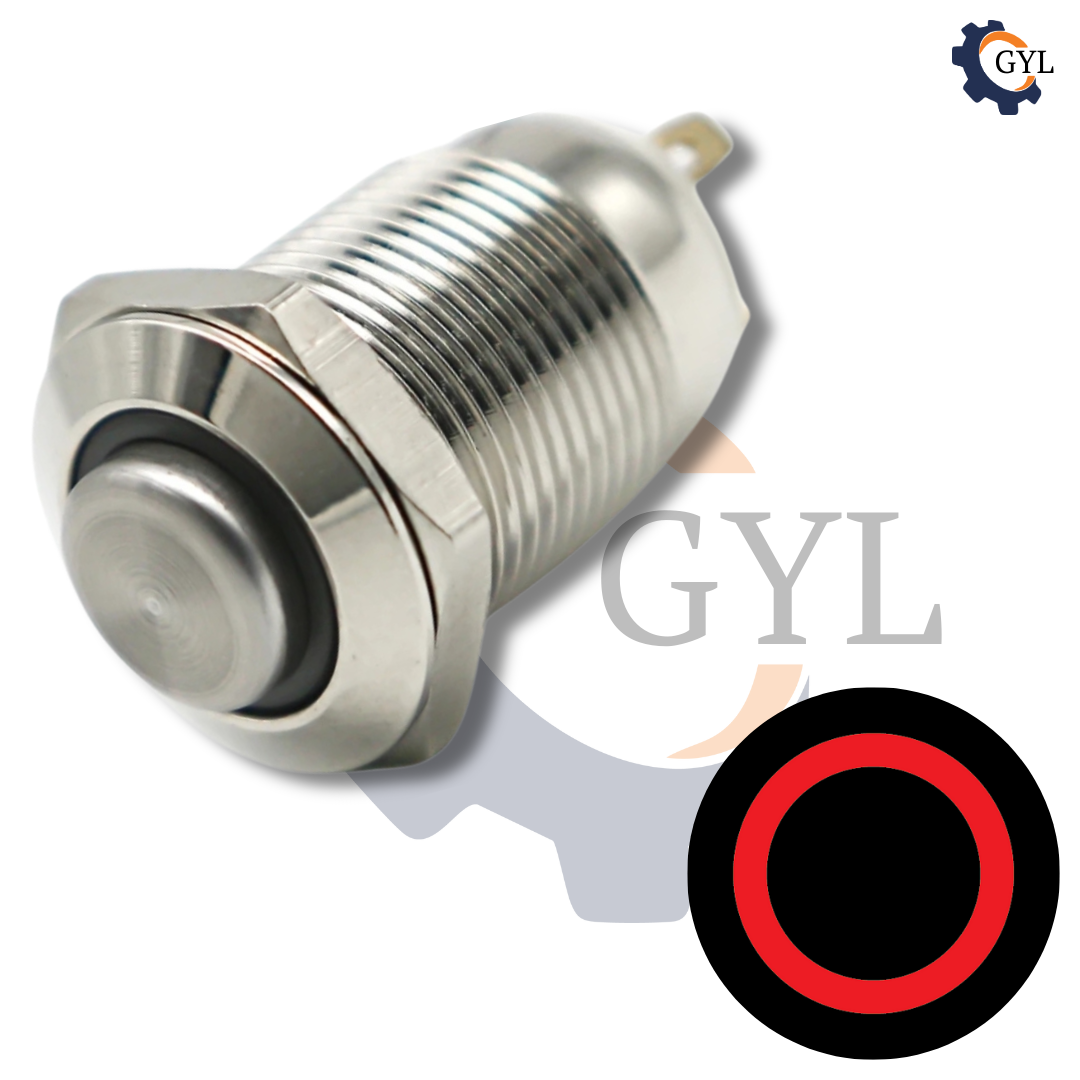

- In-built round ring illuminated LED.
- Independent LED and Switch Terminals.
- Good Electrical Conductivity.
- Rubber ring and nut for fixing, Waterproof and dustproof.

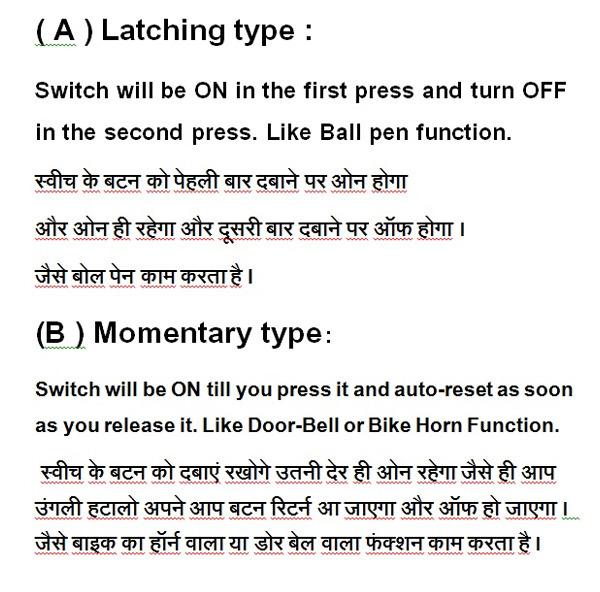

NOTE :- Momentary means Horn type switch which works as it will be in ON position till you press it and will auto-reset itself as soon as you release it.
Product Datasheet
Download or view the detailed technical datasheet for this product below.
Product Specifications
| Mounting size | 12mm |
| Locking type ? | Momentary type |
| Material | Stainless steel |

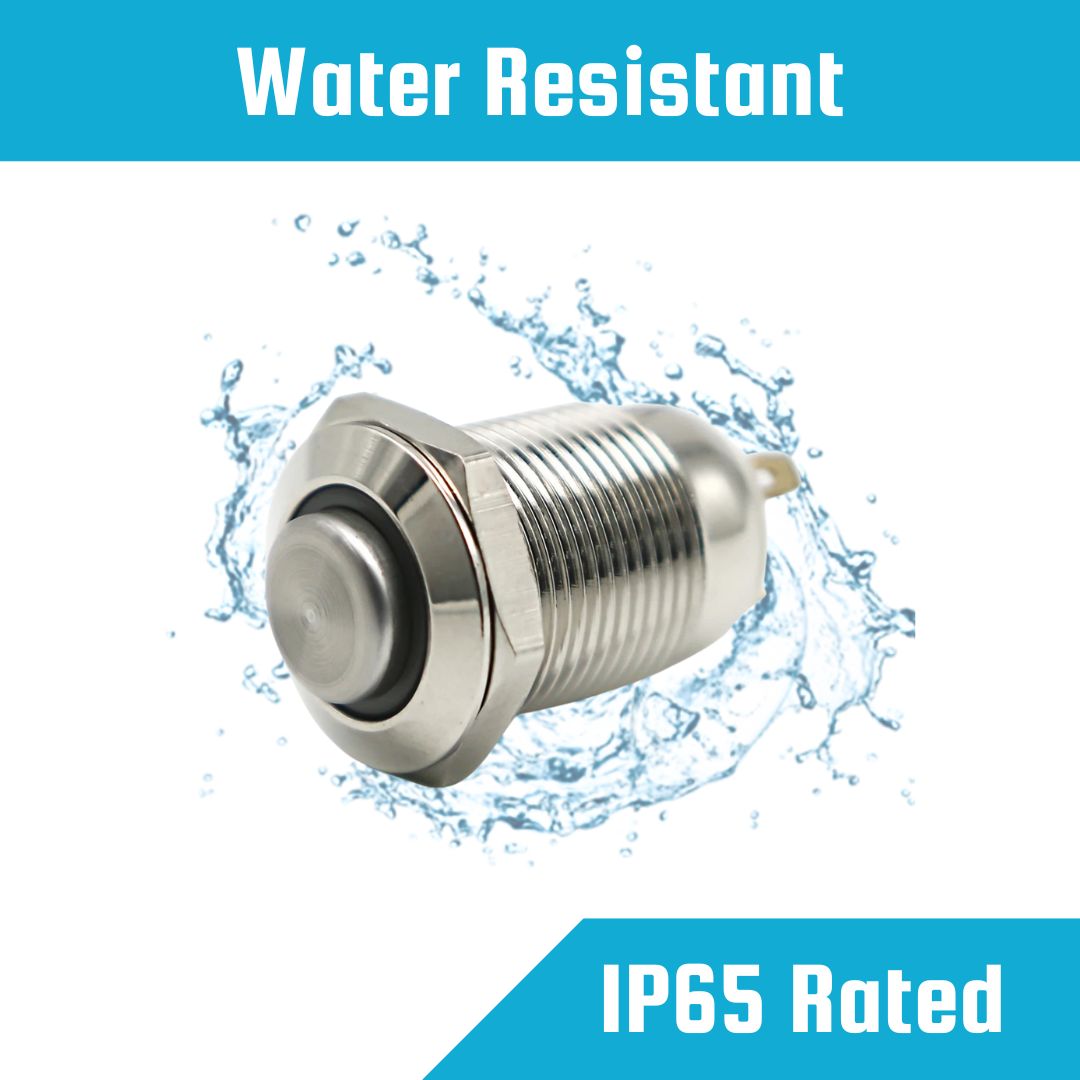

| Waterproofing rating | IP65 |
| Operating Voltage | 12v DC (4.5v to 24v) |
| loading capacity | 1 ampere |

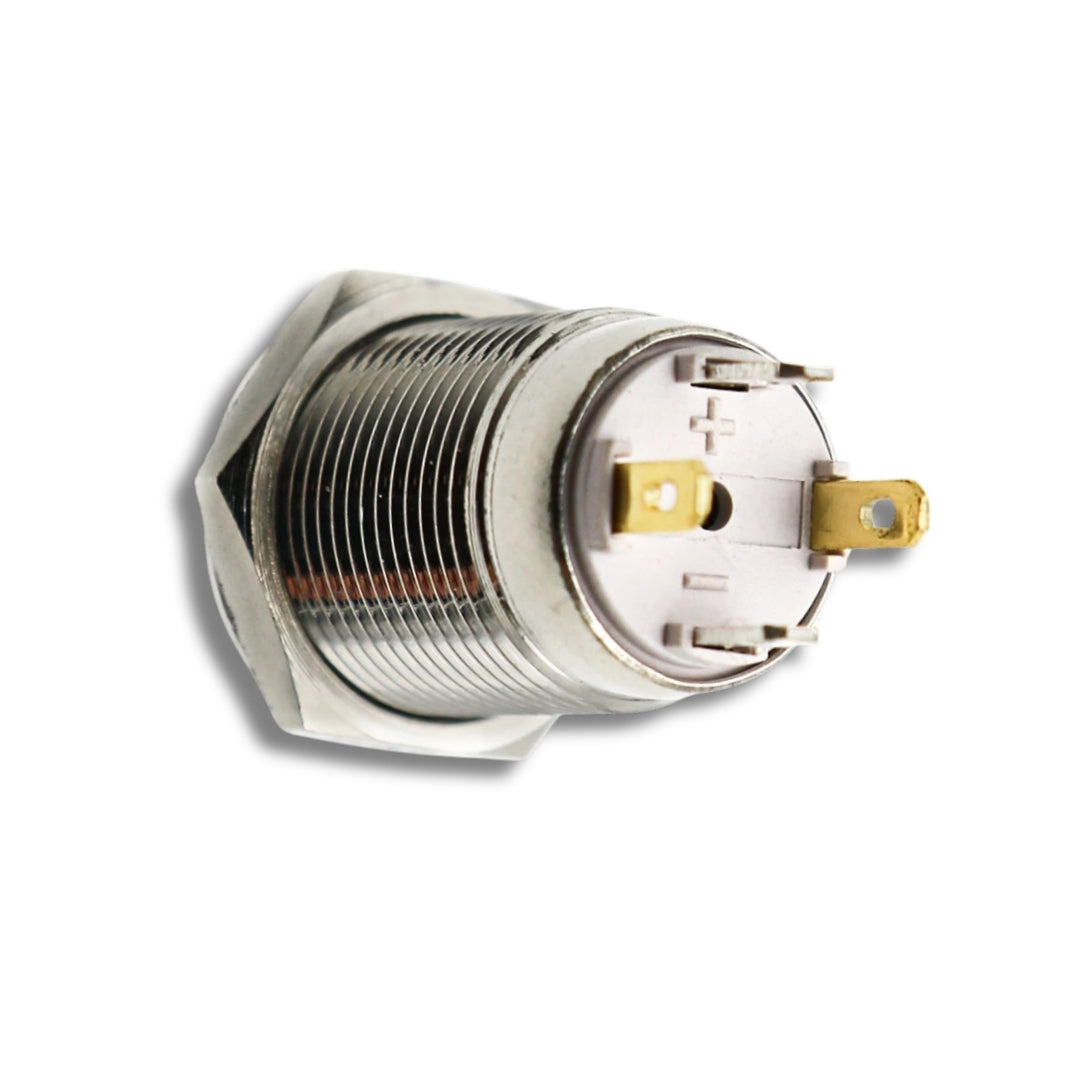

| Pinout type | solder pin |
| Number of Pins | 4 |
| Pin type | 1 -LED +,1 – LED -, 1 – NO, 1 – NC |
| Datasheet | Download Datasheet |
Bulk Pricing (Excluding GST)
| Quantity | Discount | Unit Price (Excl. GST) |
|---|---|---|
| 10 nos | 5% | ₹ 103.86 |
| 20 nos | 7% | ₹ 101.67 |
| 50 nos | 10% | ₹ 98.39 |
| 100 nos | 12% | ₹ 96.2 |
| 250 nos | 15% | ₹ 92.92 |
| 500 nos | 18% | ₹ 89.64 |
| 1000 nos & more | 20% | ₹ 87.46 |
Frequently Asked Questions

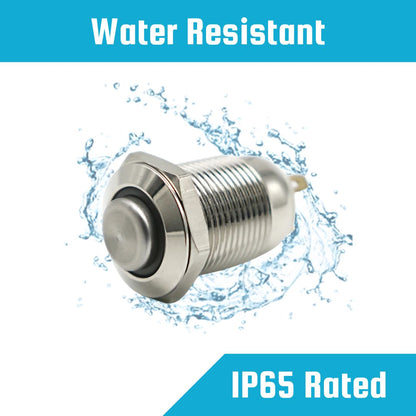

Is this pushbutton waterproof?
+
Yes. This pushbutton is rated IP65, meaning it is protected against dust ingress and low-pressure water jets from any direction. It is suitable for most challenging environments, including industrial and outdoor applications. However, we recommend ensuring proper installation to maintain its waterproof integrity.
Can I use this pushbutton on a bike, car, or moped?
+
No. This pushbutton is designed for low-current electronic circuits with a maximum load capacity of 1 ampere. It is not recommended for automotive systems such as bikes, cars, or mopeds, as these typically require higher current tolerance and may lead to failure or safety risks.
Is this pushbutton illuminated?
+
Yes. This model features an integrated LED illuminated ring (as visible in the product images), which offers clear visual feedback during operation. The illumination enhances both aesthetics and usability, particularly in low-light environments.

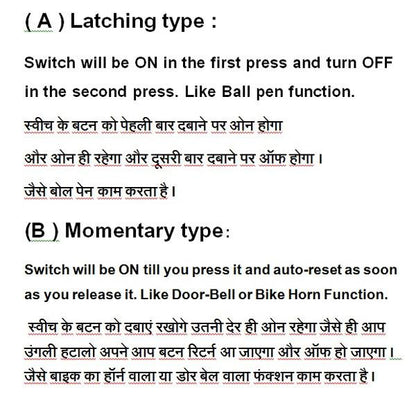

Is this pushbutton momentary or latching?
+
Depending on the selected variant, it may be available in momentary (returns to its original state when released) or latching (stays in the activated state until pressed again) configurations. Please review the product options carefully before making a purchase.
How do I install this pushbutton?
+
Installation is straightforward and requires mounting the switch into a compatible panel cutout, followed by secure wiring connections. We recommend consulting a qualified technician if you are not experienced with electrical components.
Can this pushbutton be used outdoors?
+
Yes, as long as proper sealing and enclosure guidelines are followed. The IP65 rating allows the pushbutton to withstand rain, moisture, and dust exposure, making it ideal for kiosks, control panels, and external automation interfaces.
