12mm Size GREEN Led Stainless Steel Latching Type Push Button Switch 5v-24v DC
12mm Size GREEN Led Stainless Steel Latching Type Push Button Switch 5v-24v DC
Regular price
Rs. 165.00
Regular price
Sale price
Rs. 165.00
Unit price
per
Shipping calculated at checkout.
(Price are inclusive of 18% GST)
Bulk Inquiry?
COD Available
UPI
Cards Accepted
Net Banking
Couldn't load pickup availability
Replacement guarantee
Express Delivery
GST Billing
Quality Checked
Product Specifications
| Mounting size | 12mm |
| Locking type ? | Latching type |
| Material | Nickel with Lead Chrome |

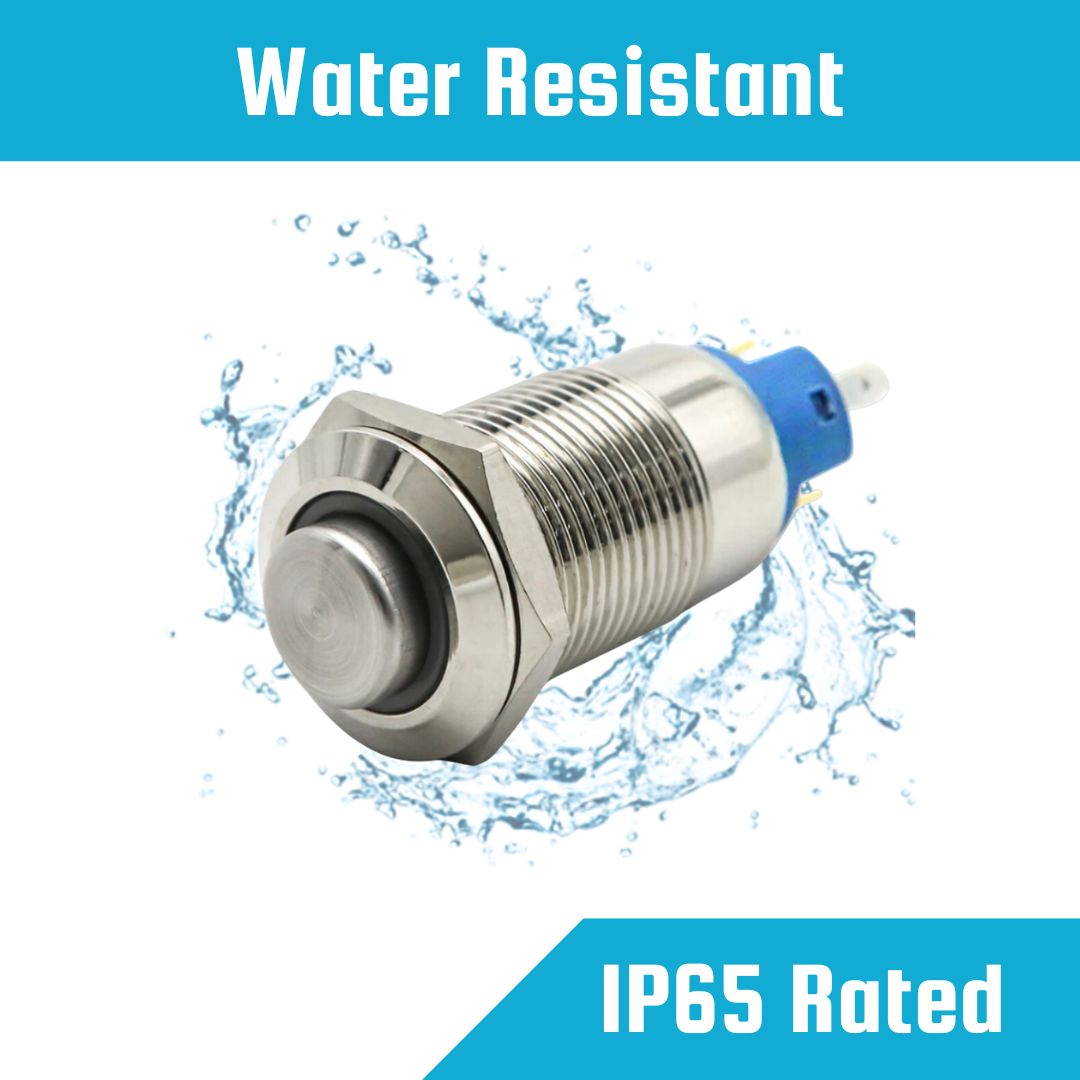

| Waterproofing rating | IP65 |
| Operating Voltage | 12v DC (5v to 24v) |
| Loading capacity | 1 ampere |
| Pinout type | solder pin |

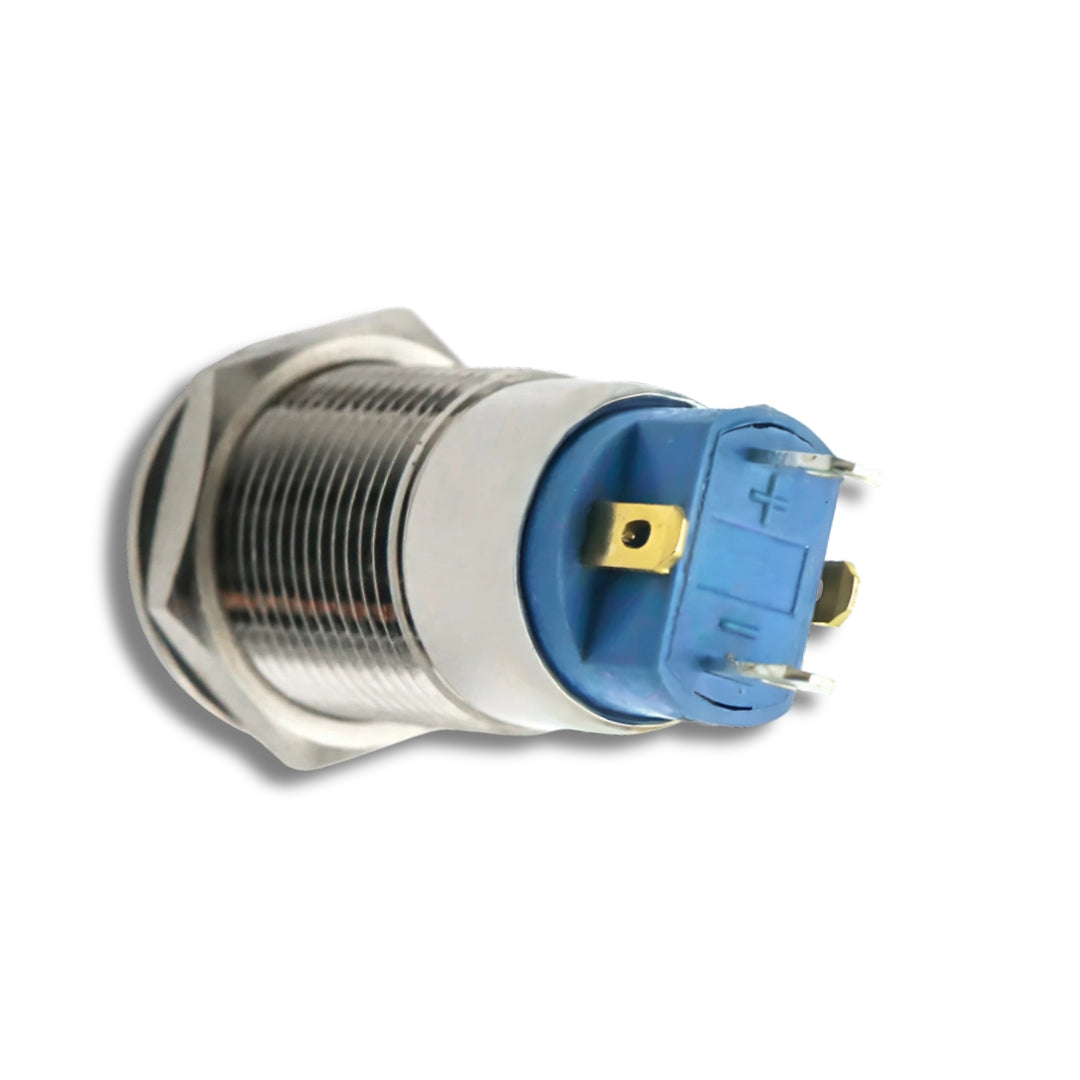

| Number of Pins | 4 |

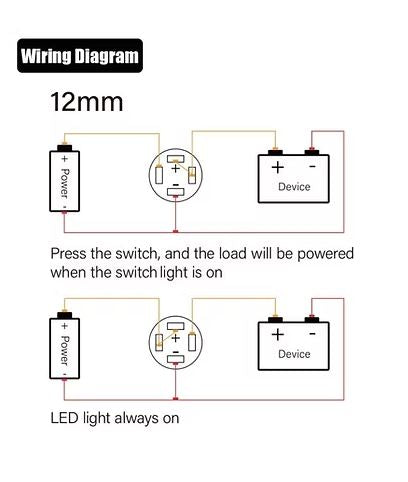

| Pin type | LED +, LED -, NO, NC |
| LED type | Single Color LED |
| Configuration | SPST (one input, & one output) |

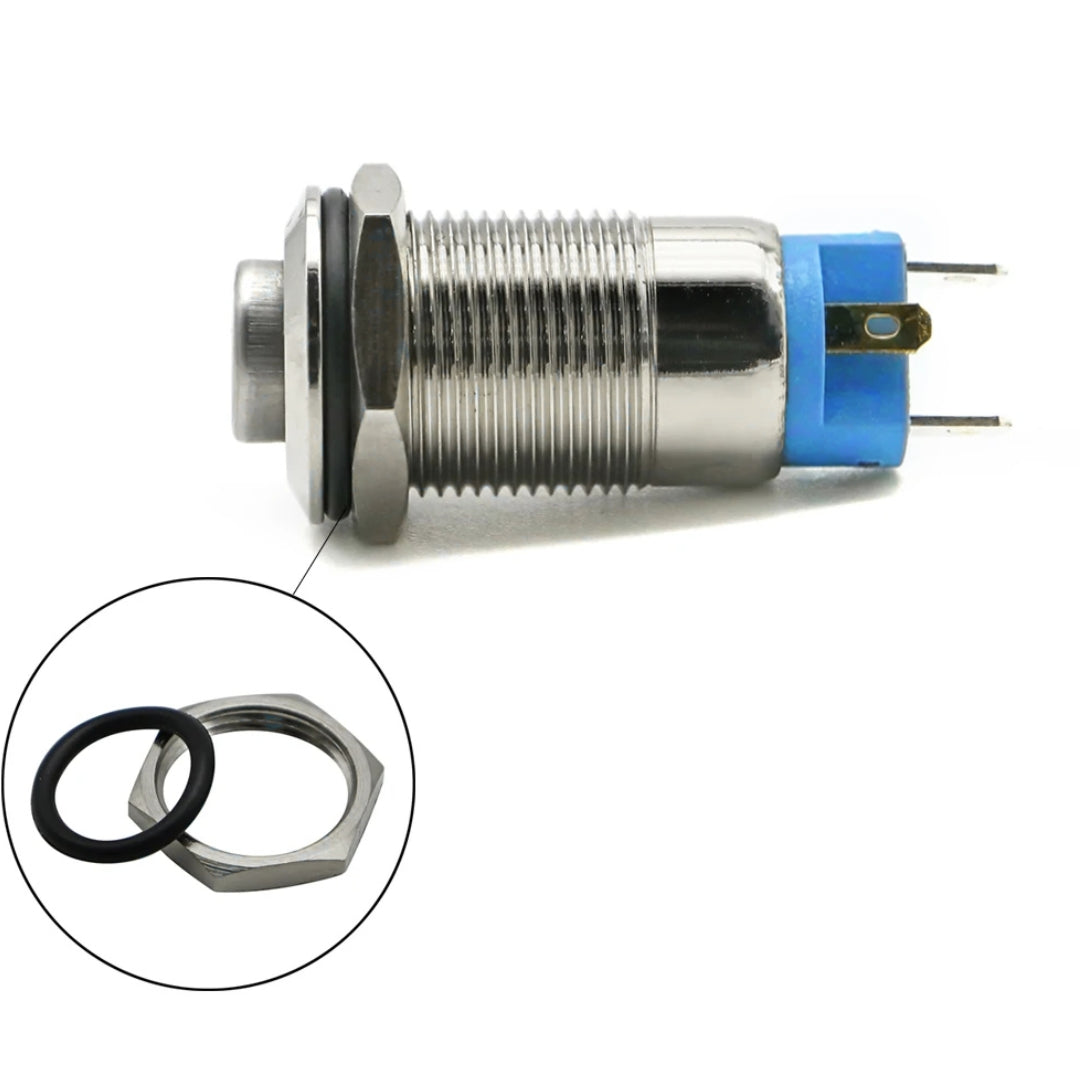

| Package Contents | Pushbutton + Nut + Rubber Ring |
Product Description
- 12v DC Power LED (4.5v to 24v).
- 1 amp loading capacity.
- 4 pin = 1 -LED +,1 – LED -, 1 – NO, 1 – NC.
- High Quality Stainless Steel Material.
- Yanwev Pvt. Ltd. Product By South Korea.
- 3 month replacement Guarantee.
- Mounting Hole Diameter 12mm+.
- Tested for more than 30,000 presses.
- Stainless steel material for long period use.

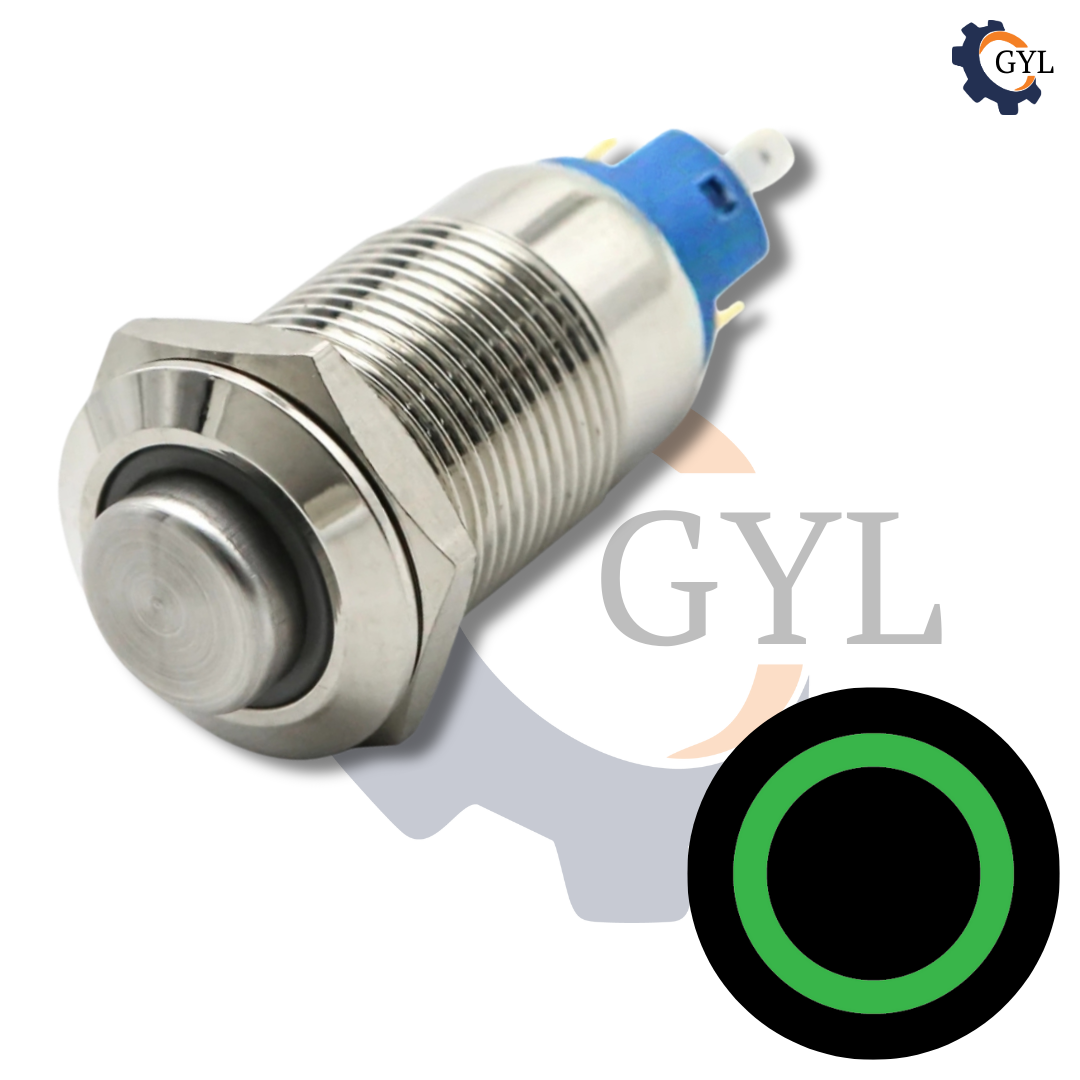

- In-built round ring illuminated LED.
- Independent LED and Switch Terminals.
- Good Electrical Conductivity.
- Rubber ring and nut for fixing, Waterproof and dustproof.
NOTE :- Latching ON/OFF Type Switch will works as it will be ON on the first press and OFF on the second press.
